SDRe Programming Software
5.5.1.7. Squelch Sensitivity
Shows the current squelch level for current channel. It means the
absolute threshold level to consider if a carrier is present on the
receiver.
Press on the side arrow to select a new value from a drop down
list if you want to change it.

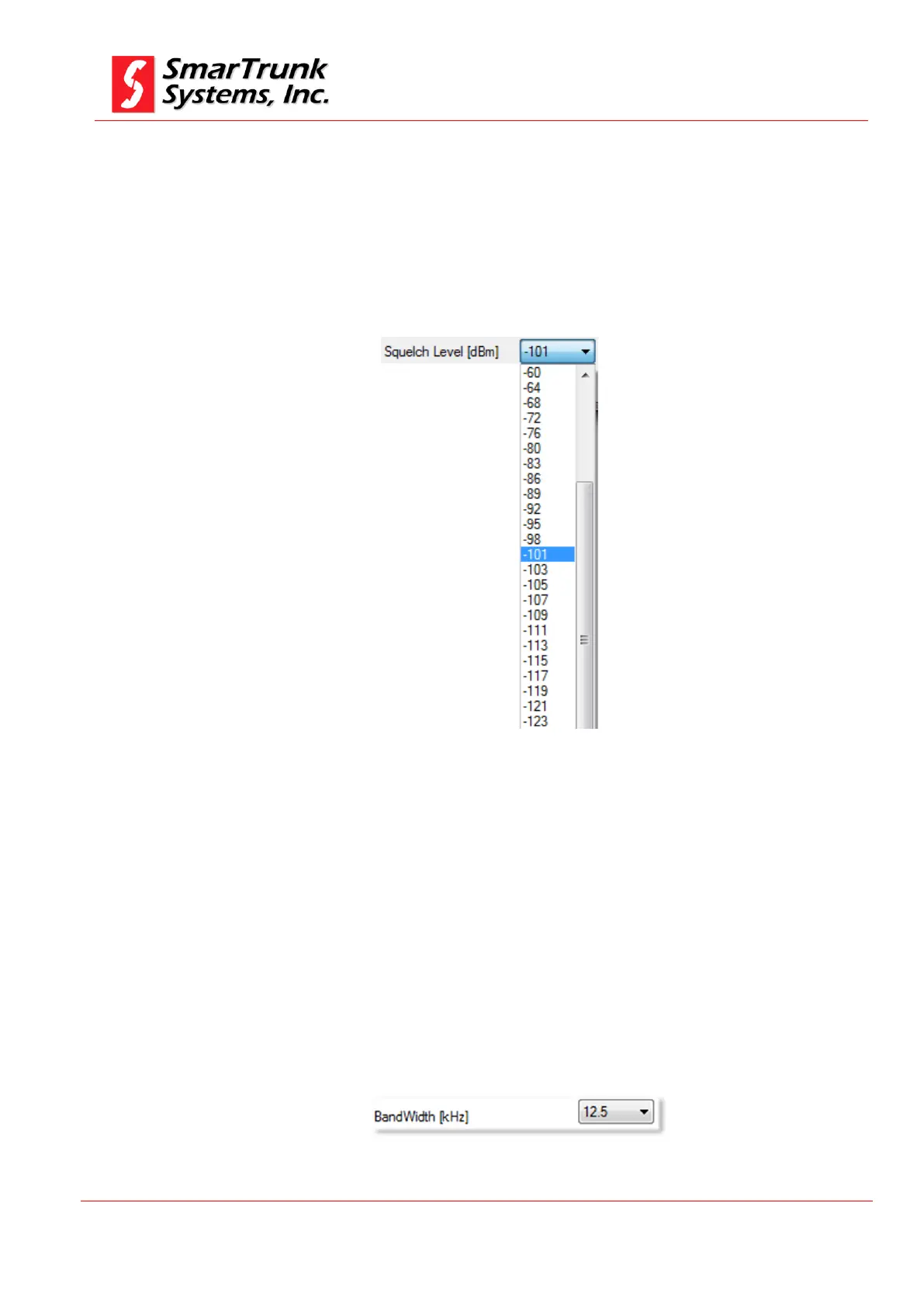

Figure 86: Squelch sensitivity
To select a value, scroll the list then click on the desired threshold
level.
Once selected the right parameter, press [Ok] to save it or [Cancel]
to exit.
5.5.1.8. Channel bandwidth
In analog mode, the channel bandwidth can be selected as per
used desire.
Figure 87: Channel Bandwidth Selection
