C
HAPTER
3
| Installing the Gateway Router
Mounting on a Horizontal Surface
– 35 –
MOUNTING ON A HORIZONTAL SURFACE
To keep the Wireless Broadband Router from sliding on the surface, the
Wireless Broadband Router has four rubber feet on the bottom of the unit.
It is recommended to select an uncluttered area on a sturdy surface, such
as a desktop or table. The unit can also be protected by securing all
attached cables to a table leg or other nearby fixed structure.
GATEWAY MODE CONNECTIONS
In its default Gateway Mode, the Wireless Broadband Router forwards
traffic between an Internet connected cable or ADSL modem, and wired or
wireless PCs or notebooks. The basic connections are illustrated in the
figure below.

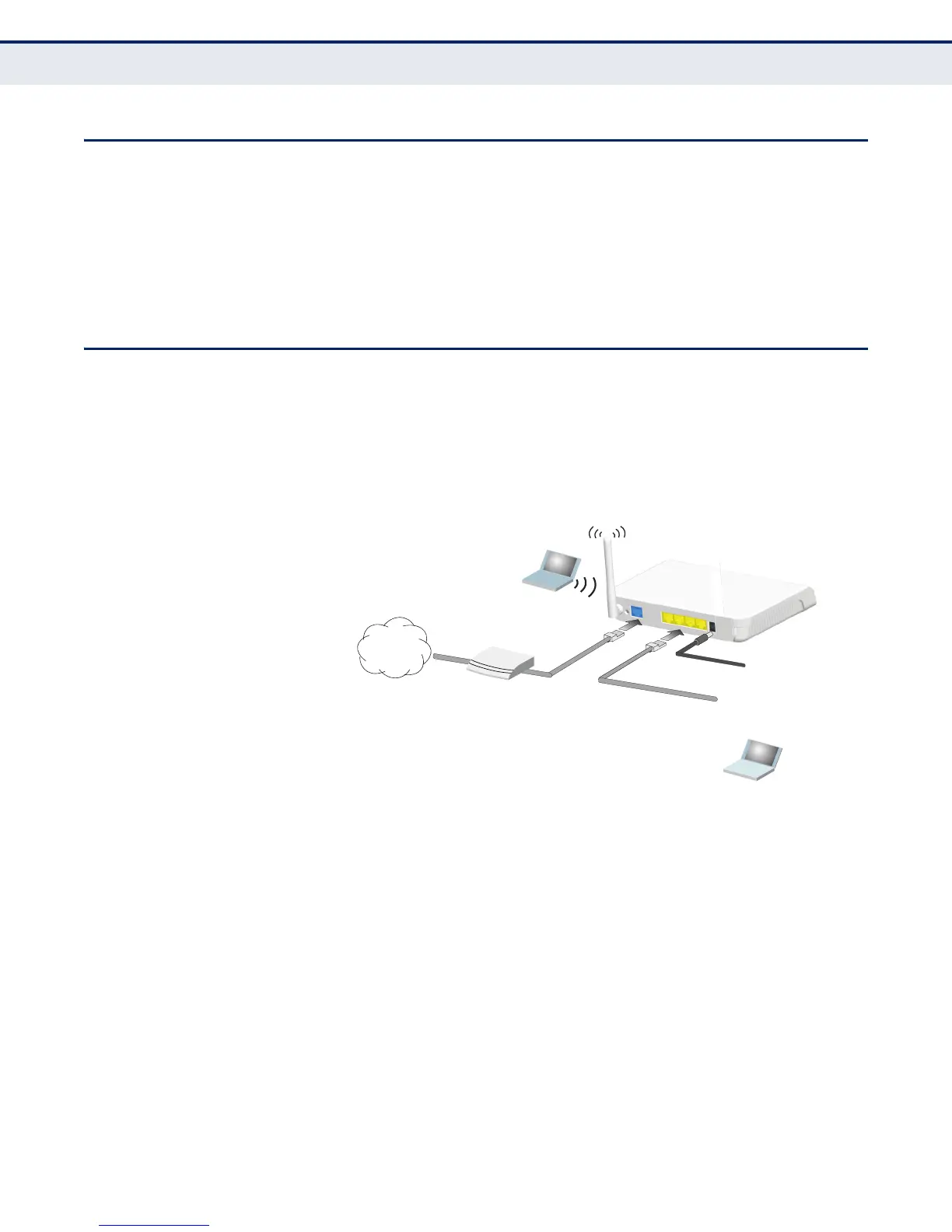

Figure 9: Gateway Mode Connection
To connect the Wireless Broadband Router in Gateway Mode for use as an
Internet gateway, follow these steps:
1. Connect an Ethernet cable from the Wireless Broadband Router’s WAN
port to your Internet connected cable or ADSL modem.
2. Connect an Ethernet cable from the Wireless Broadband Router’s LAN
ports to your PCs. Alternatively, you can connect to a workgroup switch
to support more wired users. The Wireless Broadband Router can
support up to 253 wired and wireless users.
3. Power on the Wireless Broadband Router by connecting the AC power
adapter and plugging it into a power source.
4.
Set up wireless
devices
Notebook PC
3.
Connect AC power
adapter to
power source
2.
Connect LAN port
to PC
Cable/DSL Modem
1.
Connect WAN port to
cable/DSL modem
Internet
