C
HAPTER
6
| Internet Settings
WAN Setting
– 57 –
STATIC IP Configures a static IP for the WAN port.

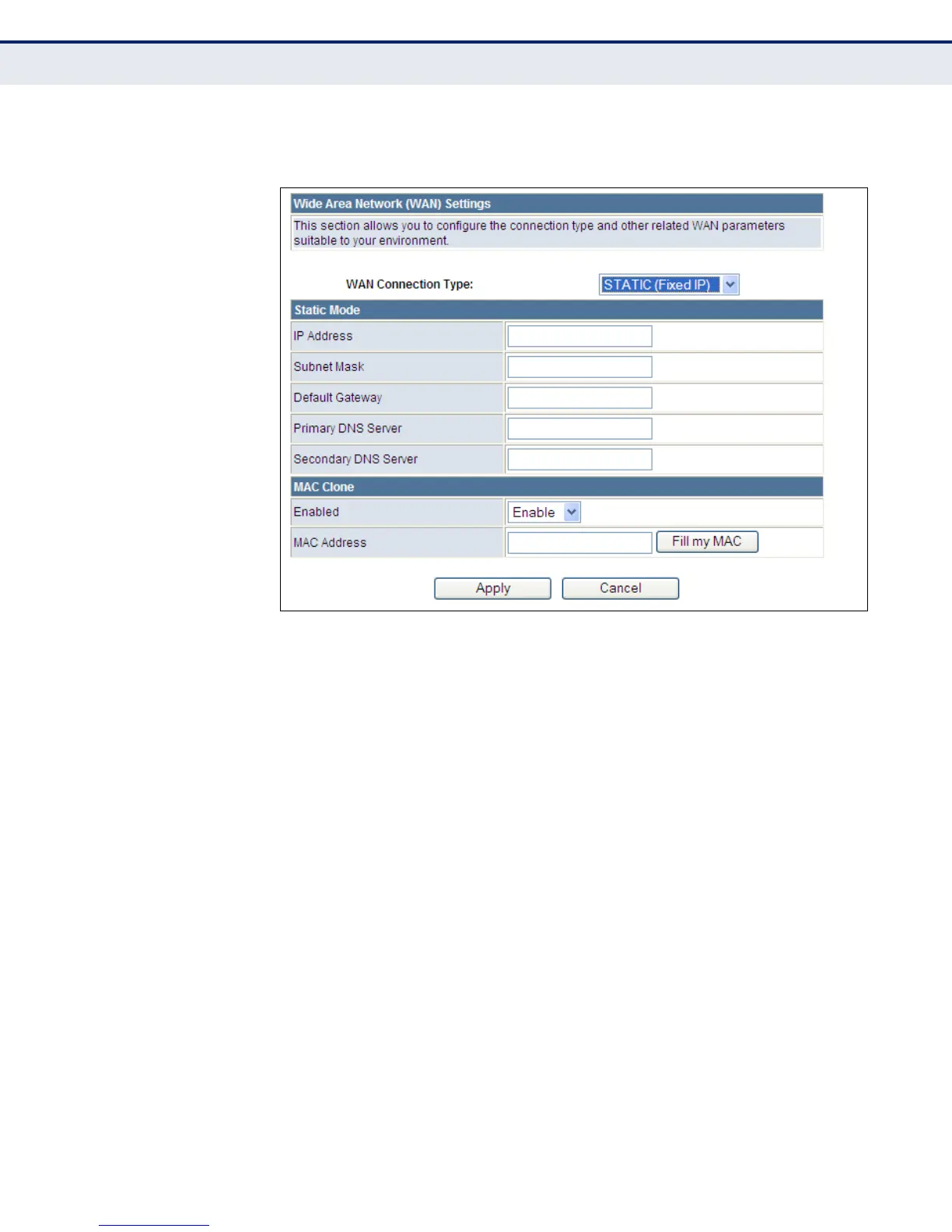

Figure 24: Static IP Configuration
◆ IP Address — The IP address of the Wireless Broadband Router. Valid
IP addresses consist of four decimal numbers, 0 to 255, separated by
periods.
◆ Subnet Mask — The mask that identifies the host address bits used for
routing to specific subnets.
◆ Default Gateway — The IP address of the gateway router for the
Wireless Broadband Router, which is used if the requested destination
address is not on the local subnet.
◆ Primary DNS Server — The IP address of the Primary Domain Name
Server on the network. A DNS maps numerical IP addresses to domain
names and can be used to identify network hosts by familiar names
instead of the IP addresses. If you have one or more DNS servers
located on the local network, type the IP addresses in the text fields
provided. Otherwise, leave the addresses as all zeros (0.0.0.0).
◆ Secondary DNS Server — The IP address of the Secondary Domain
Name Server on the network.
◆ MAC Clone — Some ISPs limit Internet connections to a specified MAC
address of one PC. This setting allows you to manually change the MAC
address of the Wireless Broadband Router's WAN interface to match the
PC's MAC address provided to your ISP for registration. You can enter
the registered MAC address manually by typing it in the boxes
To Next Page
