C
HAPTER
7
| Wireless Configuration
Wi-Fi Protected Setup (WPS)
– 89 –

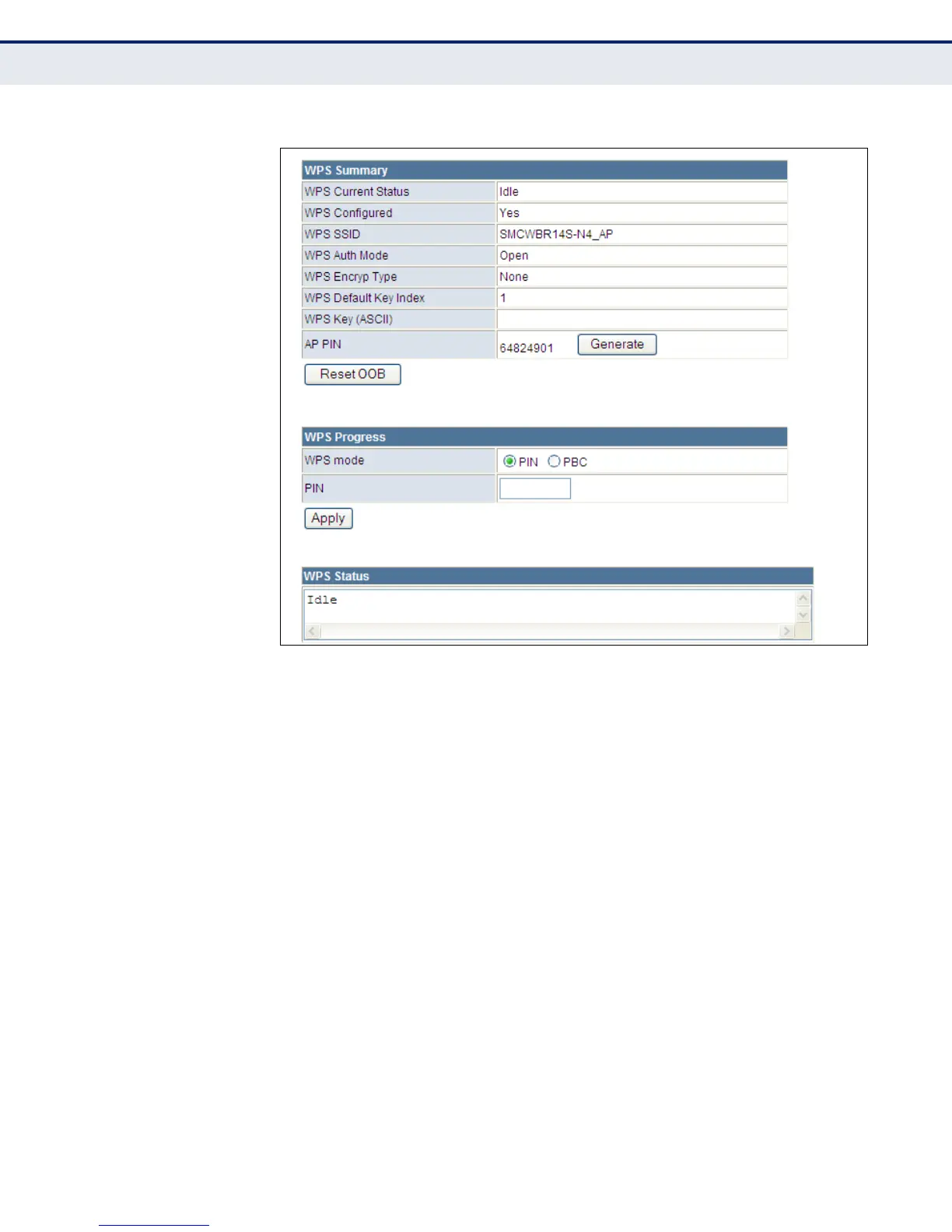

Figure 45: WPS Configuration
WPS Summary — Provides detailed WPS statistical information.
◆ WPS Current Status — Displays if there is currently any WPS traffic
connecting to the Wireless Broadband Router. (Options: Start WSC
Process; Idle)
◆ WPS Configured — States if WPS for wireless clients has been
configured for this device.
◆ WPS SSID — The service set identifier for the unit.
◆ WPS Auth Mode — The method of authentication used.
◆ WPS Encryp Type — The encryption type used for the unit.
◆ WPS Default Key Index — Displays the WEP default key (1~4).
◆ WPS Key (ASCII) — Displays the WPS security key (ASCII) which can
be used to ensure the security of the wireless network.
◆ AP PIN — Displays the PIN Code for the Wireless Broadband Router.
The default is exclusive for each unit. (Default: 64824901)
◆ Reset OOB — Resets the WPS settings to factory default values.
