C
HAPTER
3
| Installing the Gateway Router
Bridge Mode Connections
– 36 –
C
AUTION
:
Use ONLY the power adapter supplied with the Wireless
Broadband Router. Otherwise, the product may be damaged.
When you power on the Wireless Broadband Router, verify that the
Power LED turns on and that the other LED indicators start functioning
as described under see “LED Indicators” on page 25.
4. Set up wireless devices by pressing the WPS button on the Wireless
Broadband Router or by using the web interface. See “Initial
Configuration” on page 38 for more information on accessing the web
interface.
BRIDGE MODE CONNECTIONS
In Bridge Mode, the Wireless Broadband Router operates as a wireless
access point, extending a local wired network to associated wireless clients
(PCs or notebooks with wireless capability). From any nearby location, you
can then make a wireless connection to the Wireless Broadband Router and
access the wired network resources, including local servers and the
Internet.
In Bridge Mode, the Wireless Broadband Router does not support gateway
functions on its WAN port. Both the LAN port and the WAN ports can be
connected to a local Ethernet LAN.
N
OTE
:
Bridge Mode is not the factory default mode and must be manually
set using the web management interface.

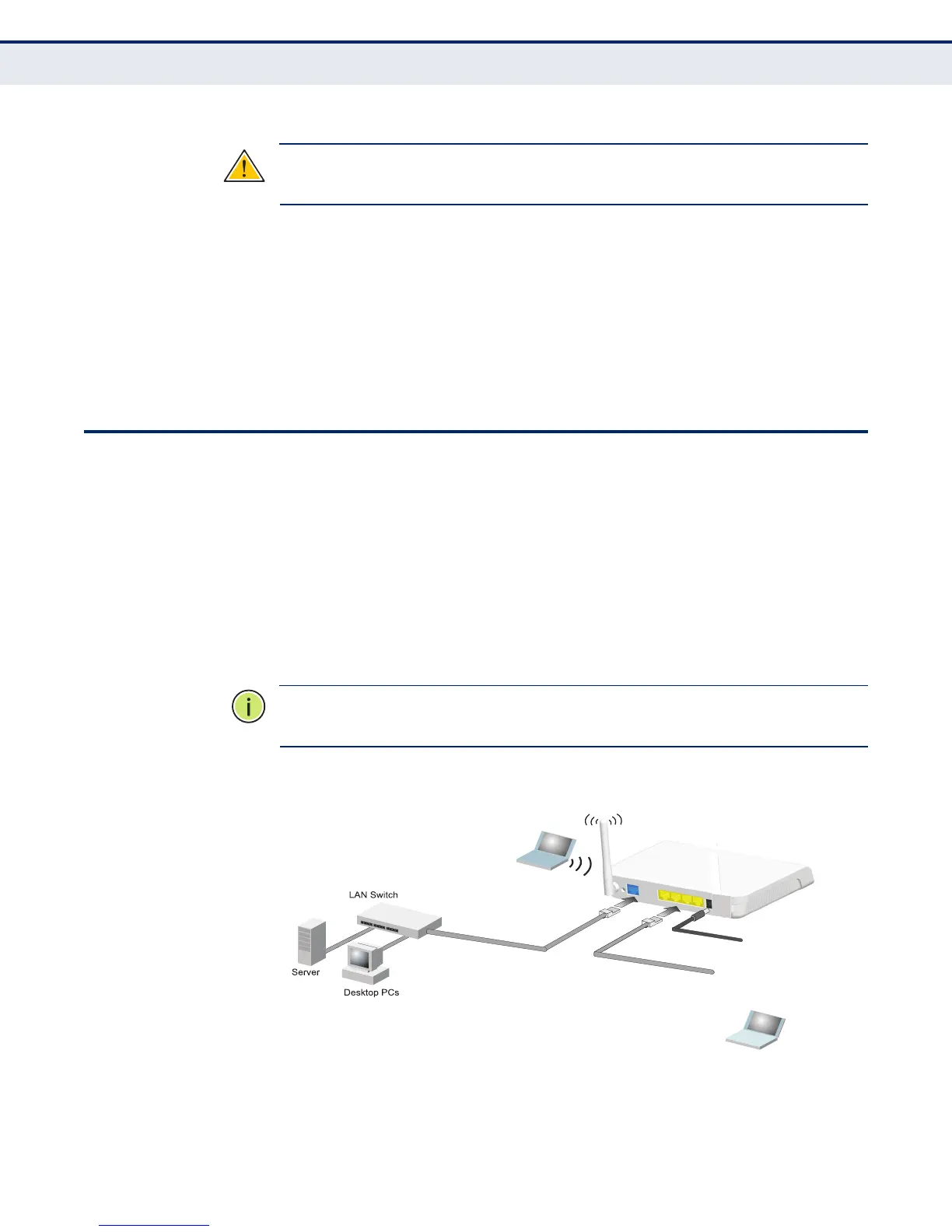

Figure 10: Bridge Mode Connection
To connect the Wireless Broadband Router for use as an access point,
follow these steps:
4.
Set up wireless
devices
Notebook PC
2.
Connect AC power
adapter to
power source
3.
Connect LAN port
to PC
1.
Connect LAN and WAN
ports to an Ethernet LAN
switch or PCs
