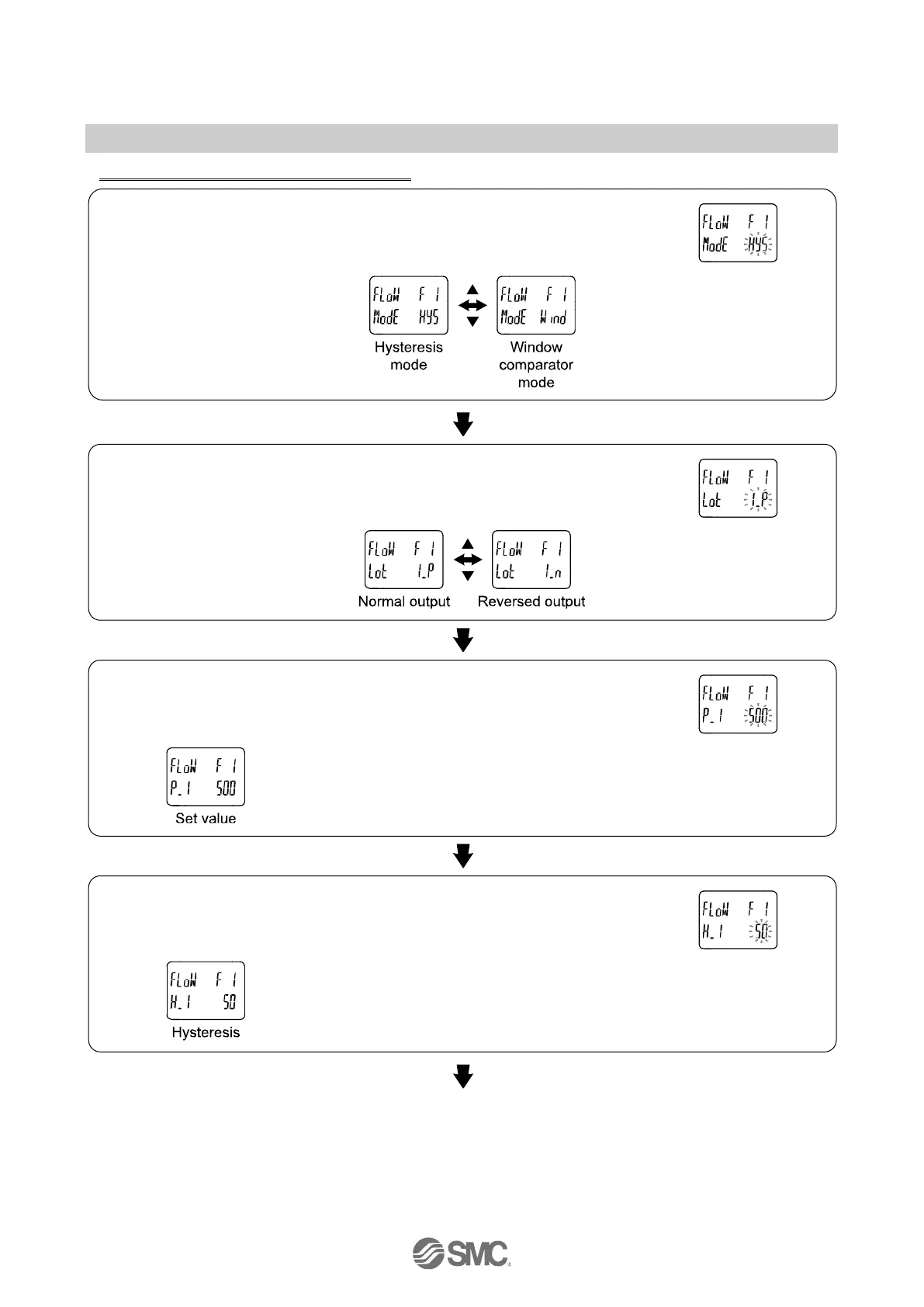

a. Flow rate/temperature/pressure is selected
Select output mode
Press the UP or DOWN button to select the output mode.
Press the SET button to set. Move on to the reversed output.
Reversed output setting
Press the UP or DOWN button to select reversed output.
Press the SET button to set. Move on to setting of set value.
Setting of set value
Set the value based on the setting method on page 27.
Hysteresis mode: [P_1]
Window comparator mode: [P1L] [P1H]
"P" is changed to "n" as [P_1]
→
[n_1] when reversed output is selected
The snap shot function can still be used.
Press the SET button to set. Move on to setting of hysteresis.
Setting of hysteresis
Set the value based on the setting method on page 27.
Hysteresis mode: [H_1]
Window comparator mode: [WH1]
The snap shot function can still be used.
Press the SET button to set. Move on to the ON delay time input.
