<Operation>
Display [F 1] by pressing UP or DOWN button in function selection mode.
Press the SET button. Move on to select the target for setting.

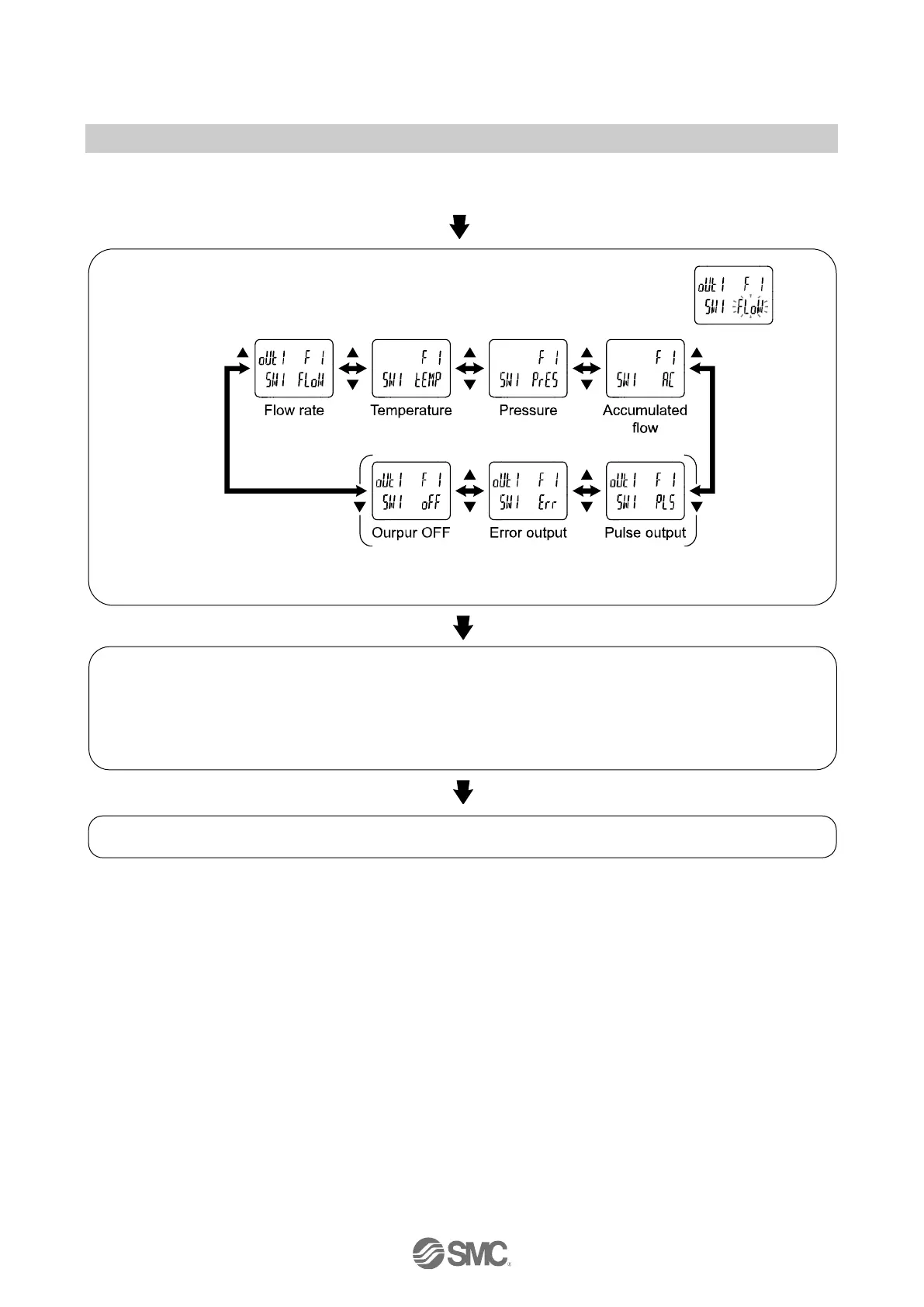

Select the target for setting
Press the UP or DOWN button to select the target for setting.
: [F 0] Only the object selected in OUT1 Output is displayed as OUT1 on the upper left.
: For Pulse output, error output and output OFF, only the object selected in [F 0] OUT1 Output is displayed.
Press the SET button to set. Move on to settings.
a. Flow rate/temperature/pressure is selected: Refer to page 39
b. Accumulated flow is selected: Refer to page 41
c. Accumulated pulse output is selected: Refer to page 42
d. Error output is selected: Refer to page 43
e. Output OFF is selected: Refer to page 43
Press the SET button to set. Return to function selection mode.
[F 1] Setting of OUT1 completed
: Selected item becomes valid after pressing SET button.
: After enabling the setting by pressing SET button, it is possible to return to the measurement mode by keeping pressing SET button.
