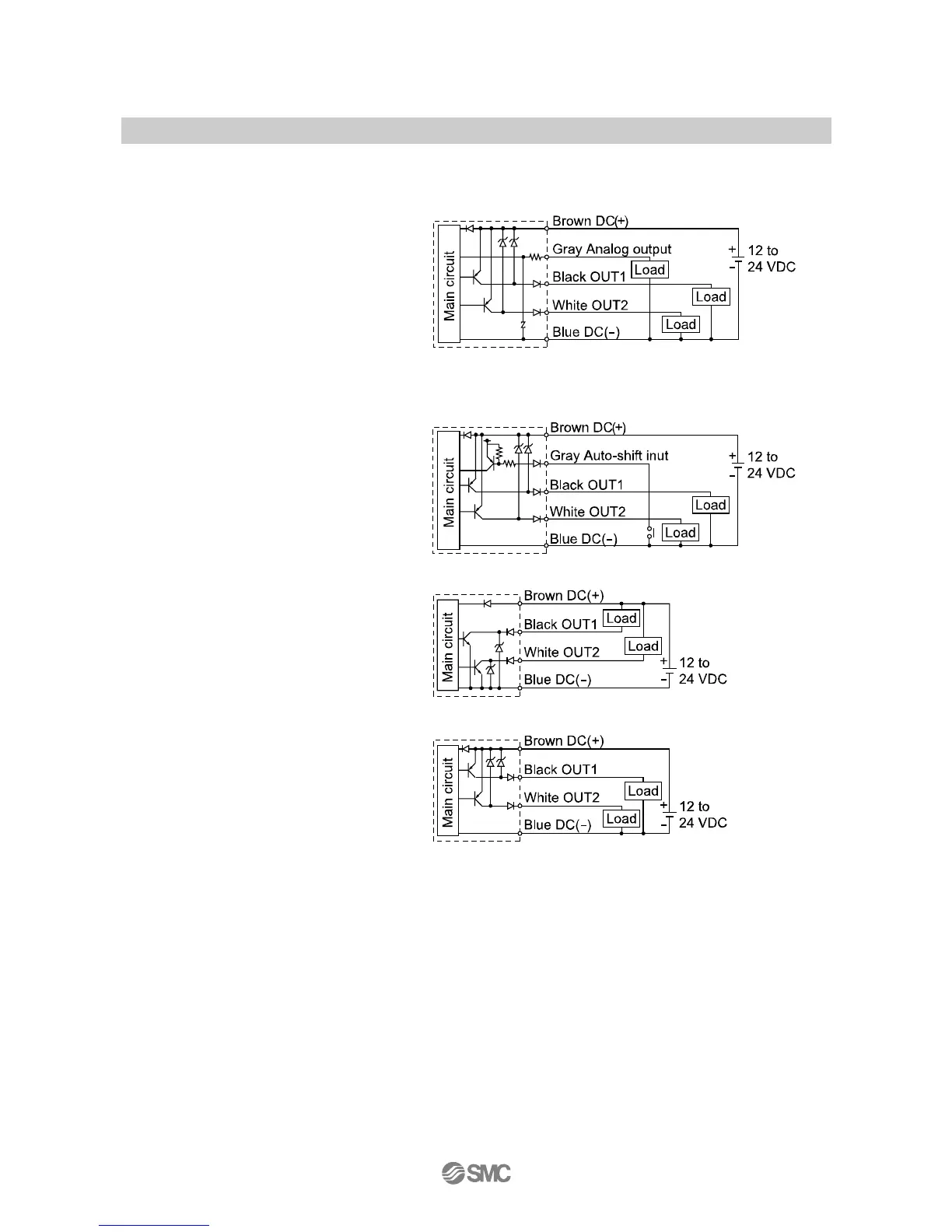

-V/-T
(Analog output mode)
Switch output
PNP open collector output type 2 output
Max. 80 mA
Residual voltage 1 V or less
T: Analog output 1 to 5 V
Output impedance 1 kΩ
V: Analog output 4 to 20 mA
Max. load impedance
Power supply voltage 12 V: 300 Ω
Power supply voltage 24 V: 600 Ω
Min. load impedance 50 Ω
-V/-T
(Auto-shift input mode)
With auto-shift switch output
PNP open collector output type 2 output
Max. 80 mA
Residual voltage 1 V or less
-A
NPN 2 output type
Max. 28 V, 80 mA
Residual voltage 1 V or less
-B
PNP 2 output type
Max. 80 mA
Residual voltage 1 V or less
