-21-
PS##-OMM0003-A

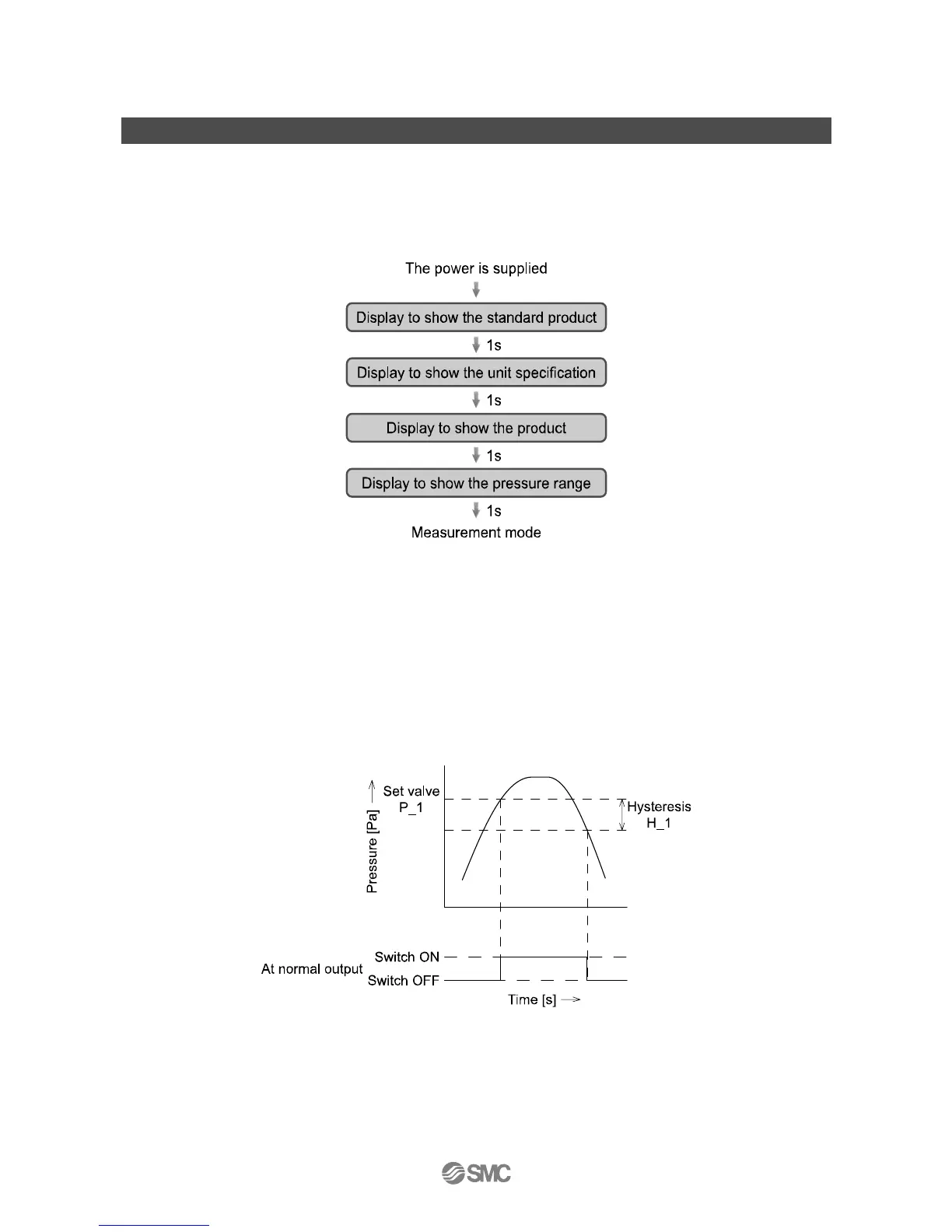

Pressure Setting
■Measurement mode
The measurement mode is the condition where the pressure is detected and indicated, and the switch
function is operating.
This is the basic mode, and other modes should be selected for setting change and other function setting
changes.
Set ON and OFF point of the Pressure switch.
Operation (Hysteresis mode)
When the pressure exceeds a set point, the Pressure switch will be turned ON.
When the pressure falls below the set point by the amount hysteresis or more, the Pressure switch will be
turned OFF.
The default setting of the Pressure switch is adjusted to be turned on at the midpoint between atmospheric
pressure and upper limit of rated pressure range, and turned off when the pressure decreases by 5% of the
span between atmospheric pressure and upper limit of rated pressure range. To change this setting, refer to
page 22 onwards.
If the operation shown below does not cause any problem, keep the operation.
To Next Page
