-22-
PS##-OMM0003-A

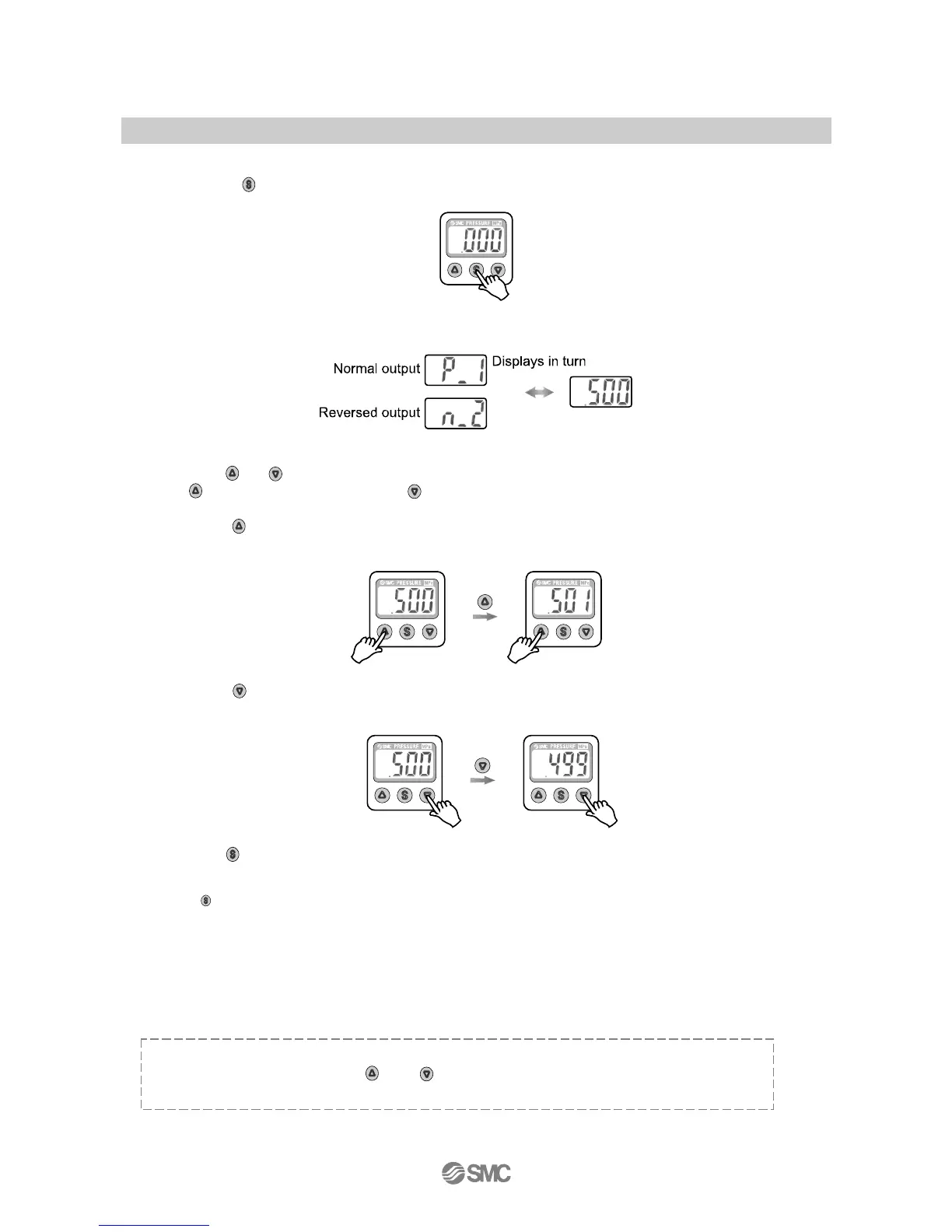

<How to operate> ∗: The Pressure switch will also output during setting.
1, Press the
button once in measurement mode. (Page 23)
2, [P_1] or [n_1] and set value are displayed in turn.
3, Press the
or button to change the set value.
The
button is for increase and the button is for decrease.
•Press the
button once to increase by one figure, and press it continuously to keep set figure
increased.
•Press the
button once to decrease by one figure, and press it continuously to keep set figure
decreased.
4, Press the
button to finish the setting.
For models with 2 outputs, [P_2] or [n_2] will be displayed. Set as above.
∗: If the button is pressed for 2 seconds or longer, the setting is fixed and measurement mode returns.
The Pressure switch moves within a set pressure range (from P1L to P1H) during window comparator
mode. Set P1L (switch lower limit) and P1H (switch upper limit) with the setting procedure above.
(When reversed output is selected, [n1L] and [n1H] are displayed.)
(For the change to window comparator mode refer to page 26 on wards.)
Zero clear of indication
Indication is reset to zero when
and buttons are pressed simultaneously for 1 second
For the first operation, perform zero clear without pressure supply.
