-53-
PS##-OMM0003-A
Model No.
ISE80
(positive pressure)
ISE80H
(positive pressure)
ZSE80
(vacuum)
ZSE80F
(compound)
Enclosure IP65
Ambient temperature Operation: 0 to 50
o
C, Storage: -10 to 60
o
C (No condensation or freezing)
Ambient humidity Operation, Storage: 35 to 85%RH (No condensation)
Withstand voltage 250 VAC for 1 minute Between wires and case
Environment
Insulation resistance 2 MΩ or more (50 VDC by megameter) Between wires and case
Temperature characteristic ±3%F.S. (25 °C Ambient temperature range))
Lead wire
Oil resistance vinyl cabtyre cable
3 cores (N.P) φ3.5, 2 m
4 cores (A.B) Sectional area of conductor: 0.15 mm
2
(AWG26)
5 cores (R.T.S.V) Outside diameter of insulator: 0.95 mm
Standard CE UL/CSA RoHS
○Piping specifications
Model No. 02 N02 F02 C01 A2 B2
Port size R1/4 NPT1/4 G1/4 Rc1/8 URJ1/4 TSJ1/4
Mass (Bottom ported) 117 g 118 g - 114 g 120 g 111 g
Mass (Rear ported) 89 g 90 g 86 g 86 g 92 g 83 g
Leakage 1x10
-5
Pa●m
3
/s 1x10
-10
Pa●m
3
/s

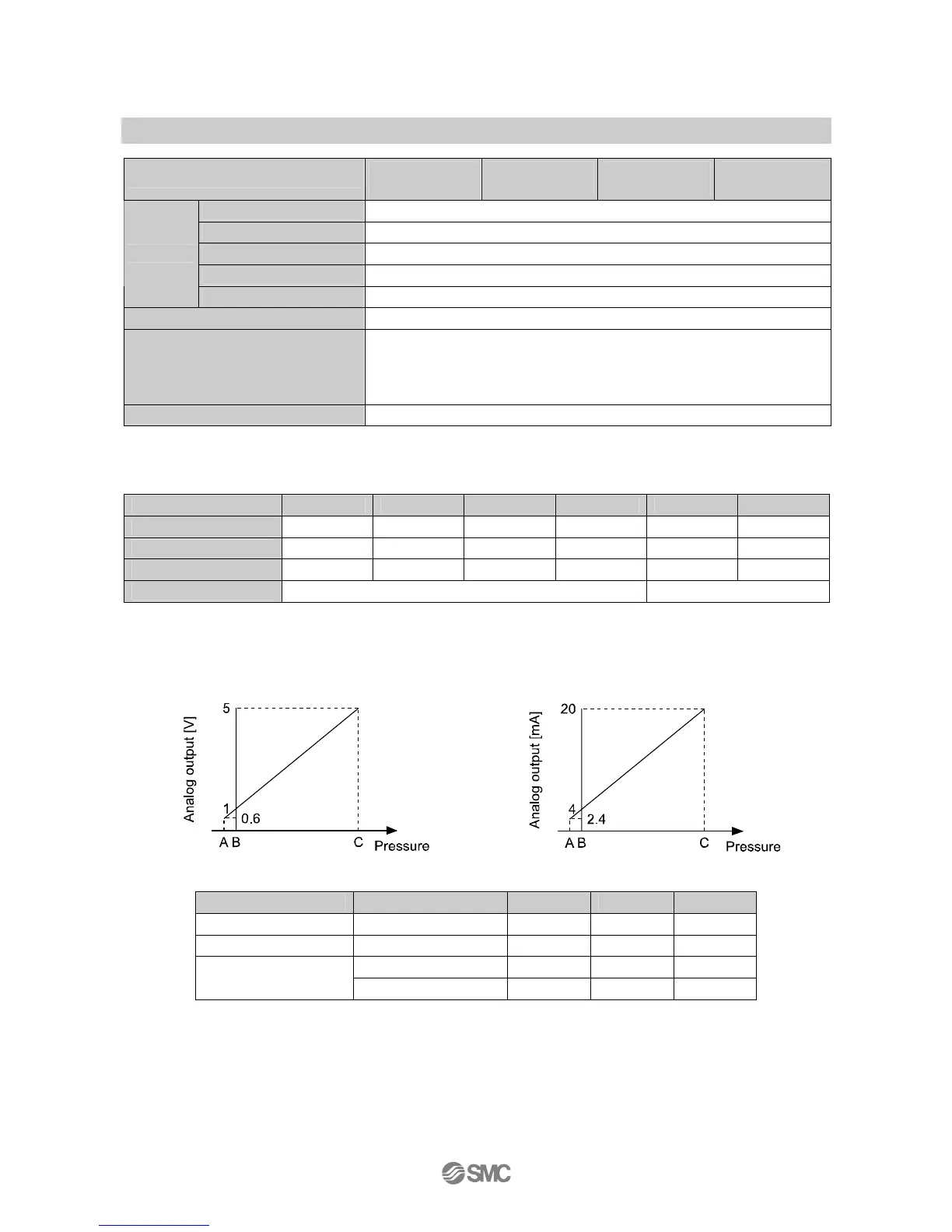

○Analog output
Voltage output Current output

Range Rated pressure range A B C
For vacuum 0.0 to -101.0 kPa - 0 -101.0 kPa
For compound -100.0 to 100.0 kPa - -100 kPa 100 kPa
-0.100 to 1.000 MPa -0.1 MPa 0 1. MPa
For positive pressure
-0.100 to 2.00 MPa -0.1 MPa
∗
0 2. Mpa
∗: Analog output is 0.8 [V] or 3.2 [mA] at the pressure A.
