2.3 Hardware Overview
2.3.1 Power Supply
FlashRunner LAN 2.0 Next Generation is powered through a 15V power supply
connected to a DC plug connector.
2.3.2 ATE Control Connector
ATE Control DIN Connectors are used by an ATE system to control FlashRunner LAN
2.0 Next Generation instead of communicating with the instrument through the USB or
LAN port. You could define and start a project, and check results. For more
information please check chapter 4.3.

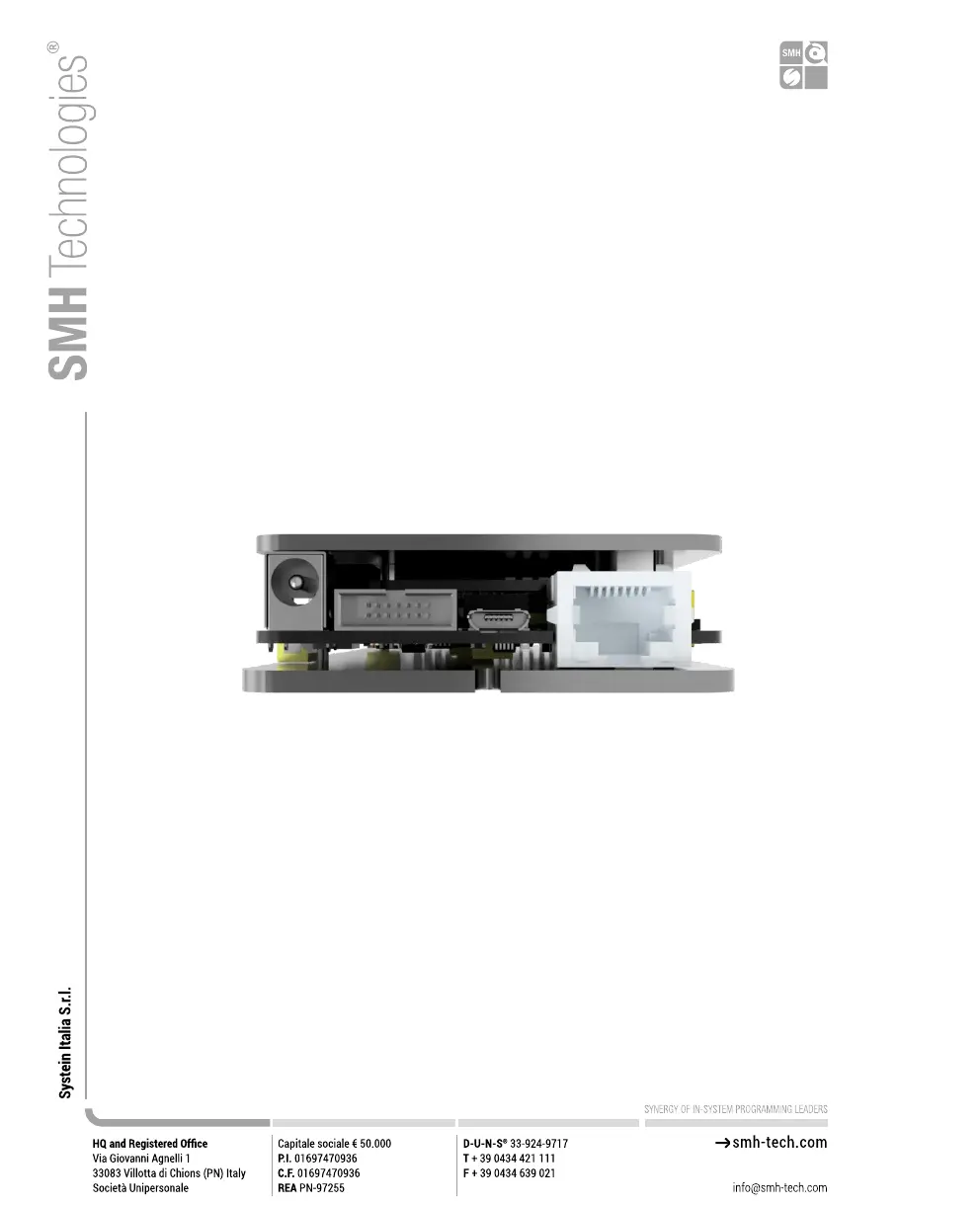

Figure 2: Power jack, ATE control connector, USB and LAN
