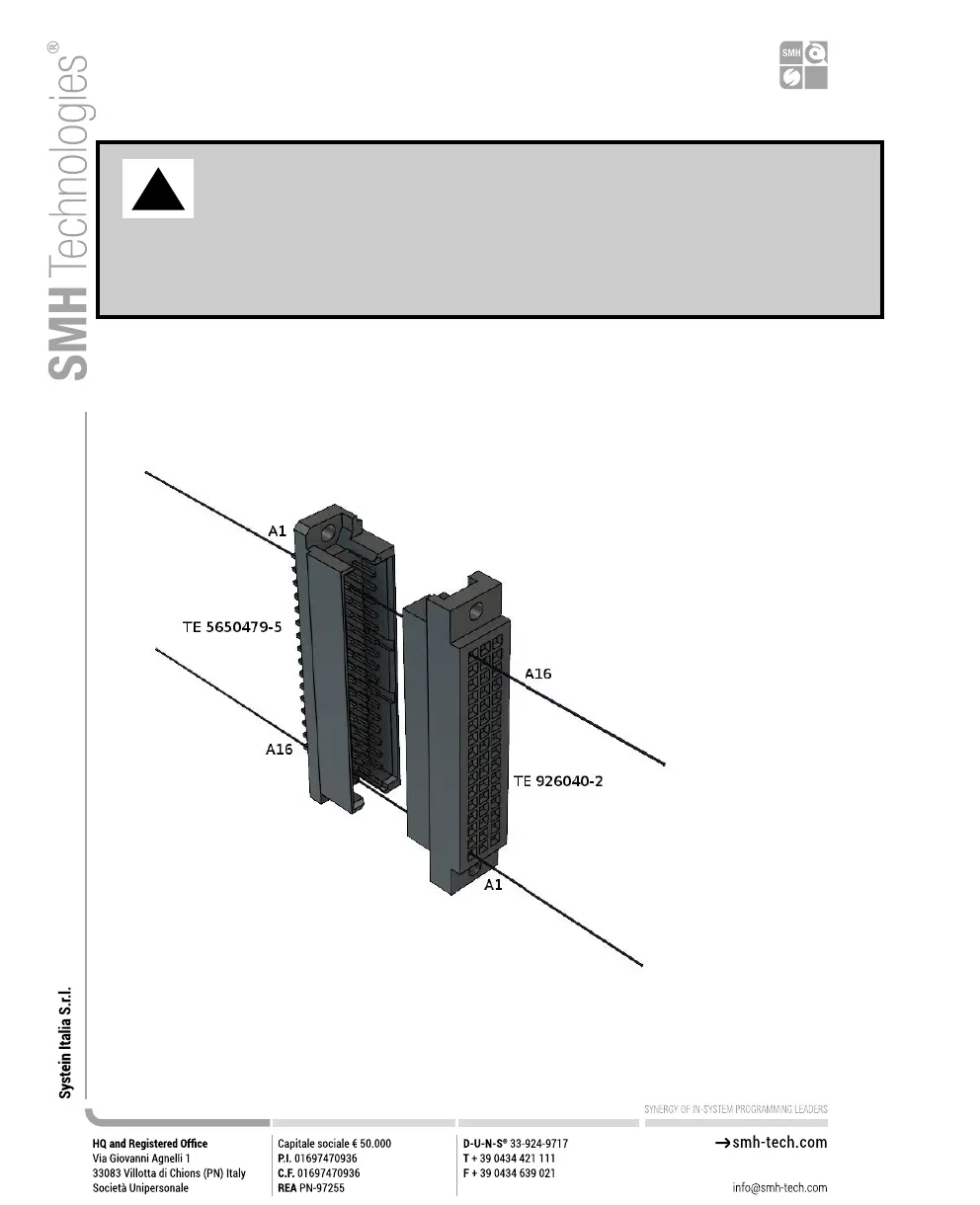

Note on DIN41612 connectors: The use of these connectors implies
that the pin assignment of a possible type C/2 female connector will be
mirrored over the rows with respect to the pin assignment of the R/2 male
onboard. Therefore, pin A1 of the R/2 male will correspond to A16 on the
C/2 female, B1 will correspond to B16 and so forth. Please compare with
given illustration.
Figure 5: DIN41612 mating pin assignment example
