2.3.3 LAN Connector
LAN Connector is used to communicate with Host PC system. Use provided cross
cable to connect FlashRunner LAN 2.0 Next Generation
with your PC. For more
information check chapter 2.3.3 and check related documentation on FlashRunner 2.0
Programmer's Manual to correctly set up your host PC system
2.3.4 USB Connector
Alternatively, communication with the host PC can be done with the micro USB
connector. Use the provided USB cable to connect FlashRunner LAN 2.0 Next
Generation
with your PC. For more information check chapter 2.3.4 and check related
documentation on FlashRunner 2.0 Programmer’s Manual to correctly set up your
host PC system
2.3.5 ISP Connectors
In Illustration 3 you can see two ISP connectors, the one on the right will define
channels 1 and 2, the left one will define channels 3 and 4. For more information
check chapter 2.3.5.

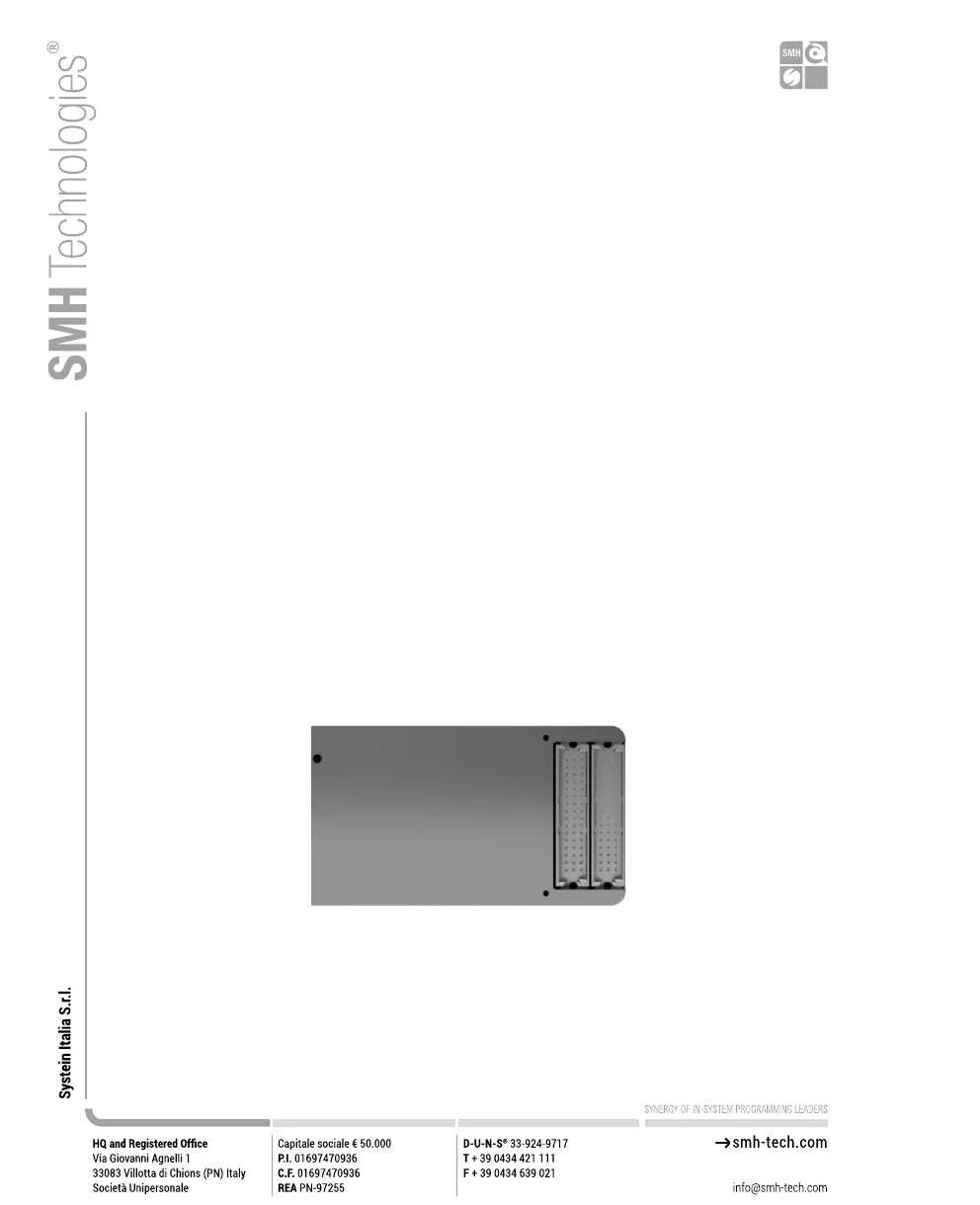

Figure 3: “ISP” DIN connectors group
