The driving signals for the relays are given by the FlashRunner through the dedicated
pins.

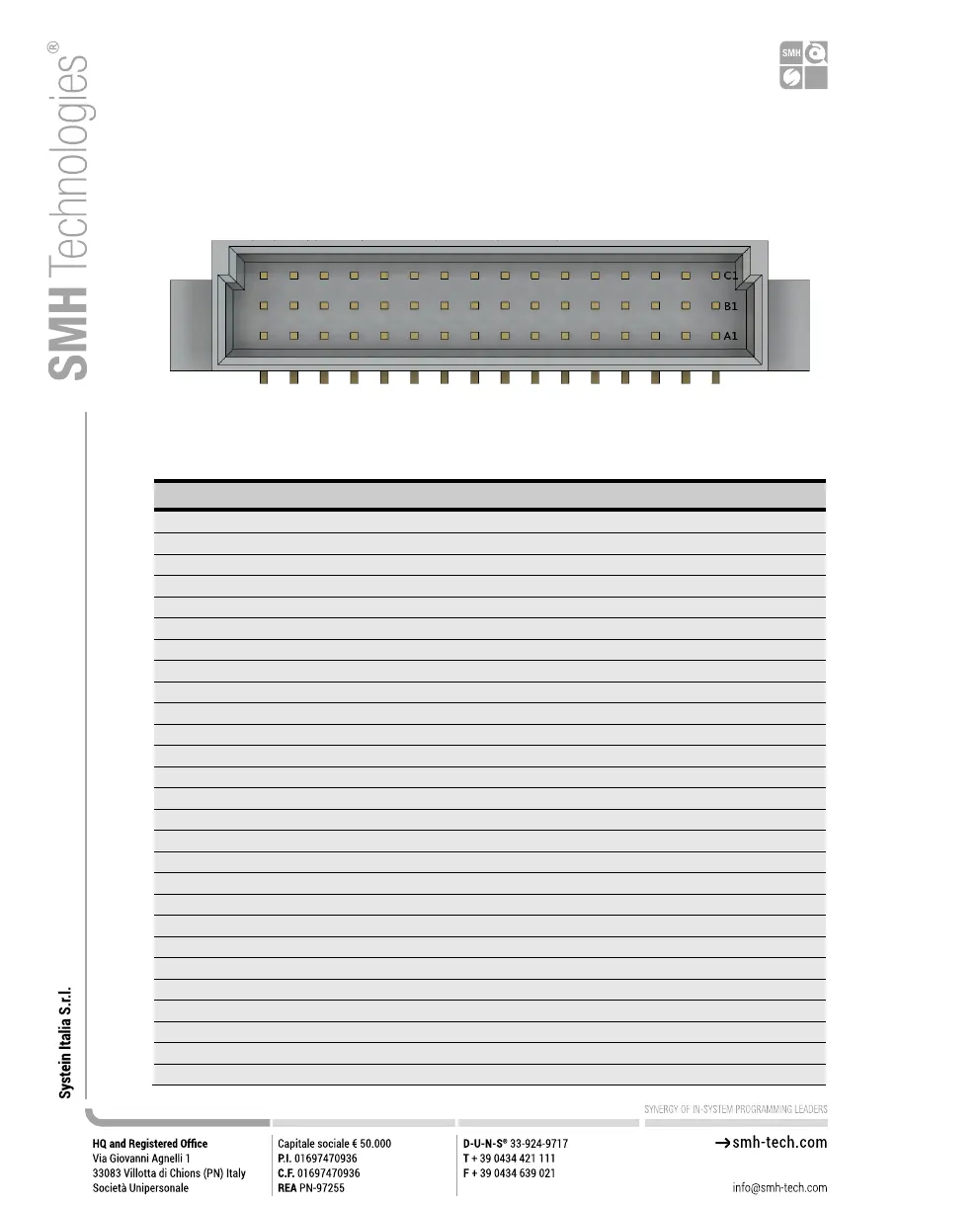

Figure 10: Relay Barrier ISP connector front view
Table 7: Relay Barrier ISP "output" signals
Pin #
Signal Name
Description
A1
DIO7_CHA
ISP Channel A: Digital input/output 7
A2
DIO5_GND_CHA
ISP Channel A: Digital input/output 5 Ground
A3
DIO4_CHA
ISP Channel A: Digital input/output 4
A4
DIO2_GND_CHA
ISP Channel A: Digital input/output 2 Ground
A5
DIO1_CHA
ISP Channel A: Digital input/output 1
A6
VPROG1_GND_CHA
ISP Channel A: Programmable voltage 1 Ground
A7
VPROG0_CHA
ISP Channel A: Programmable voltage 0
A8
NC
Not Connected
A9
NC
Not Connected
A10
DIO7_CHB
ISP Channel B: Digital input/output 7
A11
DIO5_GND_CHB
ISP Channel B: Digital input/output 5 Ground
A12
DIO4_CHB
ISP Channel B: Digital input/output 4
A13
DIO2_GND_CHB
ISP Channel B: Digital input/output 2 Ground
A14
DIO1_CHB
ISP Channel B: Digital input/output 1
A15
VPROG1_GND_CHB
ISP Channel B: Programmable voltage 1 Ground
A16
VPROG0_CHB
ISP Channel B: Programmable voltage 0
B1
DIO7_GND_CHA
ISP Channel A: Digital input/output 7 Ground
B2
DIO6_CHA
ISP Channel A: Digital input/output 6
B3
DIO4_GND_CHA
ISP Channel A: Digital input/output 4 Ground
B4
DIO3_CHA
ISP Channel A: Digital input/output 3
B5
DIO1_GND_CHA
ISP Channel A: Digital input/output 1 Ground
B6
DIO0_CHA
ISP Channel A: Digital input/output 0
B7
VPROG0_GND_CHA
ISP Channel A: Programmable voltage 0 Ground
B8
NC
Not Connected
B9
NC
Not Connected
B10
DIO7_GND_CHB
ISP Channel B: Digital input/output 7 Ground
B11
DIO6_CHB
ISP Channel B: Digital input/output 6
