2.3.6 LEDs
▪ POWER: the instrument is turned on
▪ STATUS: indicates system warnings
▪ BUSY: turned on when a project is running
▪ CHANNEL 1..4: programming result.
Green: programming successful, Red: programming failed
The STATUS_LED indicates whether the Hardware SelfTest, running during the boot
phase that tests all the hardware peripherals connected on the i2c buses, such as
DAC and ADC for the measurement of VPROG currents and voltages has been
successful. If the test passes, the STATUS_LED stays on. If the test fails, the
STATUS_LED blinks. If the STATUS_LED remains off there is something wrong.

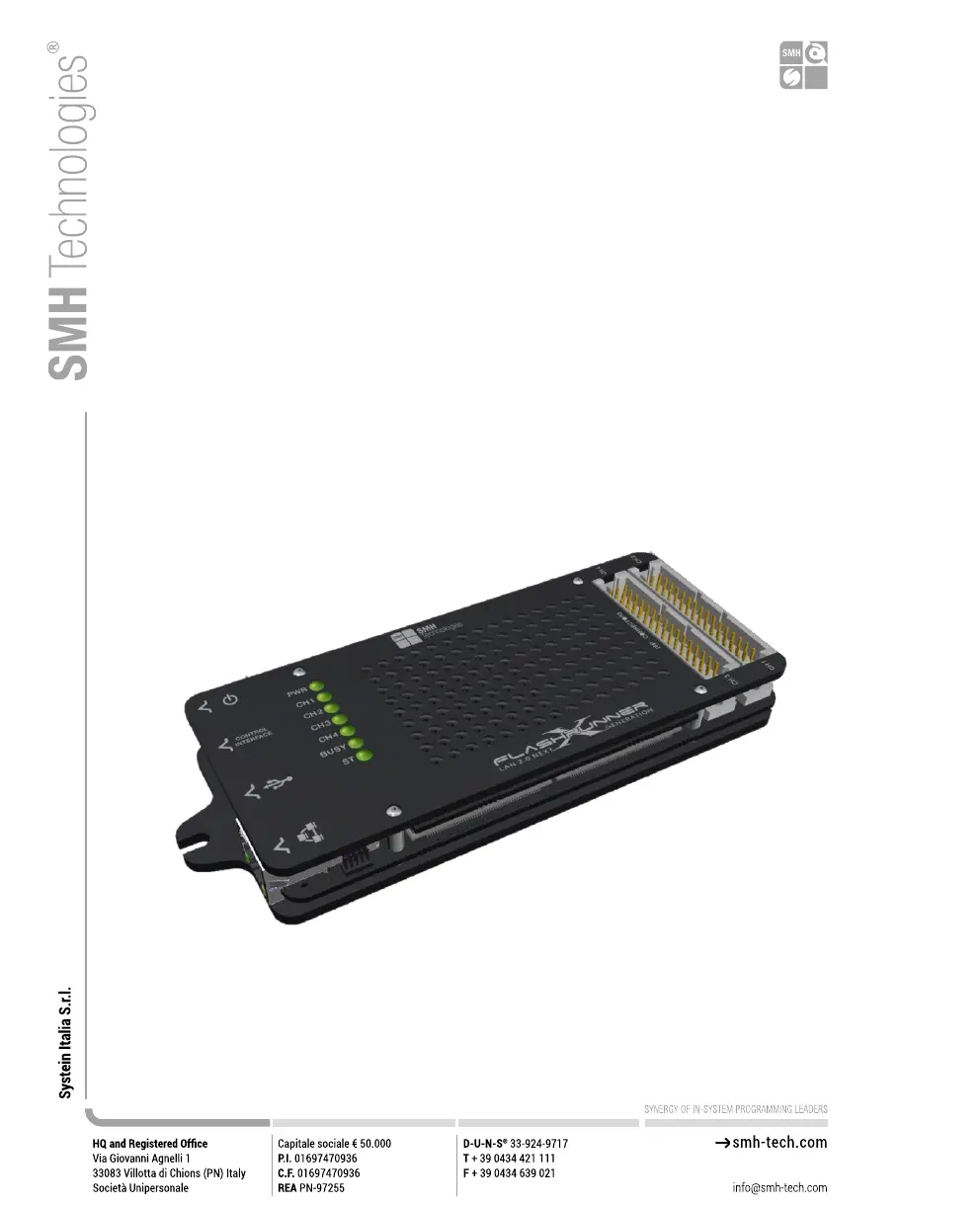

Figure 4: FlashRunner LAN 2.0 Next Generation Top Panel
