2. MACHINE INSTALLATION
2.1 DESCRIPTION OF THE MACHINE
2.2 WEIGHT AND DIMENSIONS OF THE PACKED MACHINE

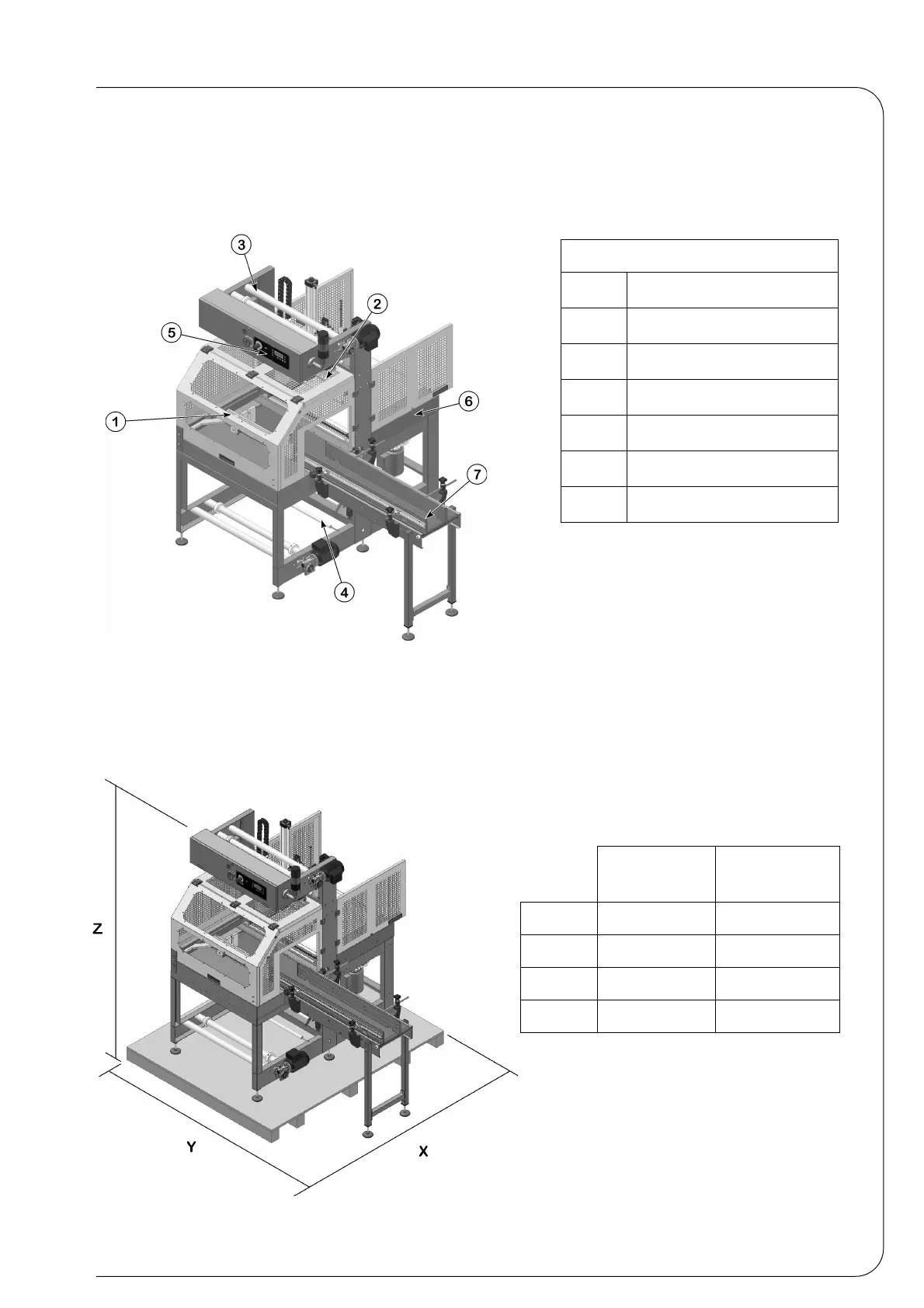

Fig. 2.1.1
GLOSSARY
1
Feeding bar
2
Sealing blade
3
Reel holder
4
Tensioning bars
5
Electronic card
6
Connecting belt
7
Infeed belt 90°
Fig. 2.2.1
ßP700AR/310 ßP700AR/310
in phenolic
wood box
X 1685 1715
Z
2095 2135
Y 2230 2260
WEIGHT Kg 445 Kg 635
