25 / 58
Use and maintenance manual BP700AR/310
ENGLISH
5. ADJUSTMENTS AND SETTINGS
5.1 MACHINE OPERATION AND GUIDE ALIGNMENT
The machine has been designed to package products by "steps" without grouping/making up

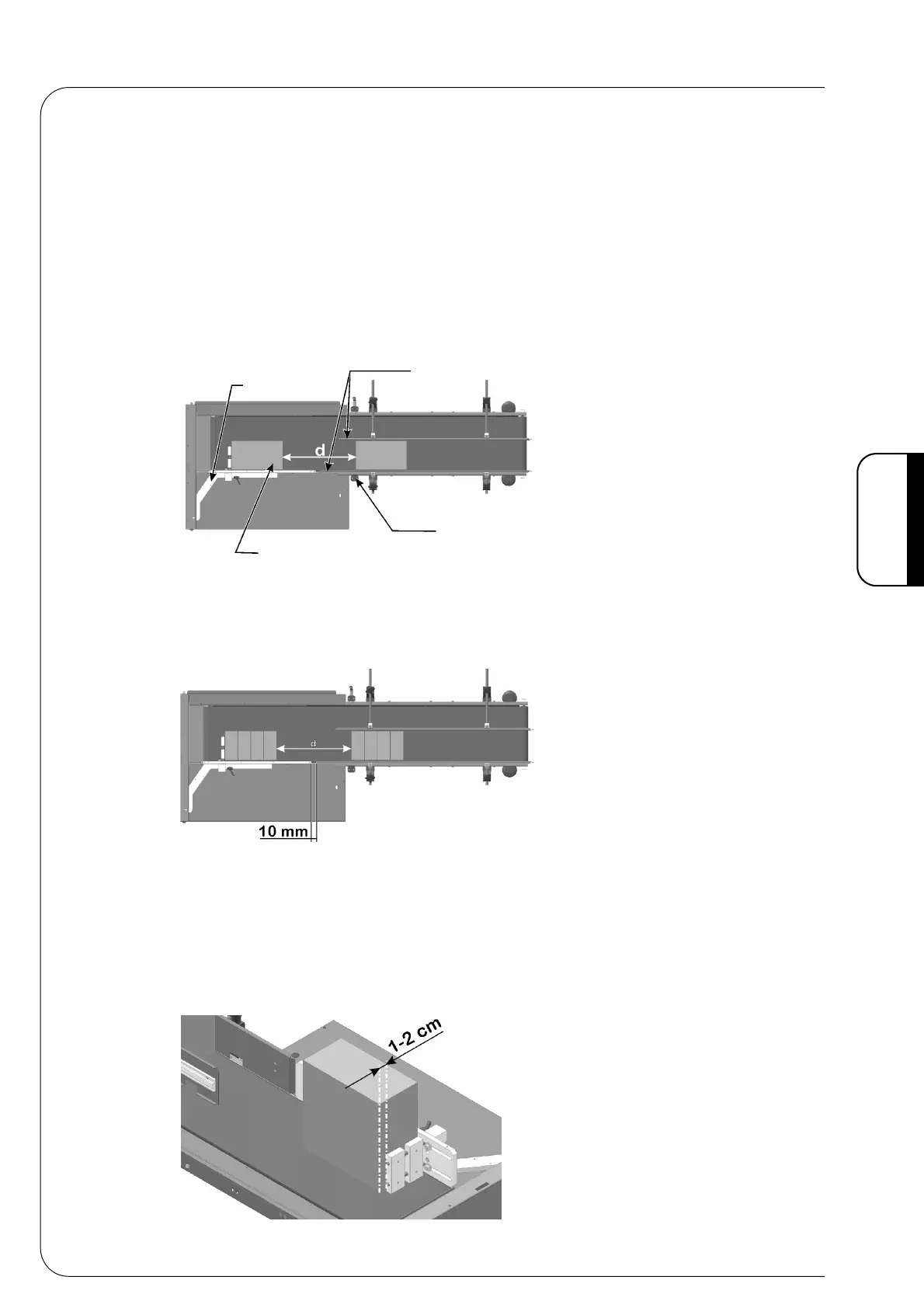

of the pack. The machine can package according the two modes shown in fig. 5.1.1 and Fig.
5.1.2.
5.2 FEEDING BAR ADJUSTMENT
Packaging of a single pack
Fig. 5.1.1
Packaging with grouped packs (always by steps)
Fig. 5.1.2
In both cases, it is necessary to keep a specific distance "d" between the end of the product to
be packaged and the photocell located at the input.
Fig. 5.2.1
1 • In accordance with the width of the
pack, adjust the input belt guides.
2 • Adjust the positions of stopping de-
vices 1 by acting on the screws 2
(by shifting the rods 5 along the
holes) in accordance with the prod-
uct length and the coil position.
BELT GUIDE
PRODUCT PRESENCE
PHOTOCELLA
PRODUCT
FEEDING BAR
