Use and maintenance manual BP700AR/310
ENGLISH
2.3 WEIGHT AND DIMENSIONS OF THE MACHINE
2.4 TRANSPORT AND UNPACKING
ATTENTION!
Before handling make sure that the hoisting equipment are suitable to lift the load that
has to be handled.
In the case of long storing, place the machine in a sheltered environment with a temperature
between -15°C and +55°C degree of humidity, variable between 30% and 90% without
condensation.

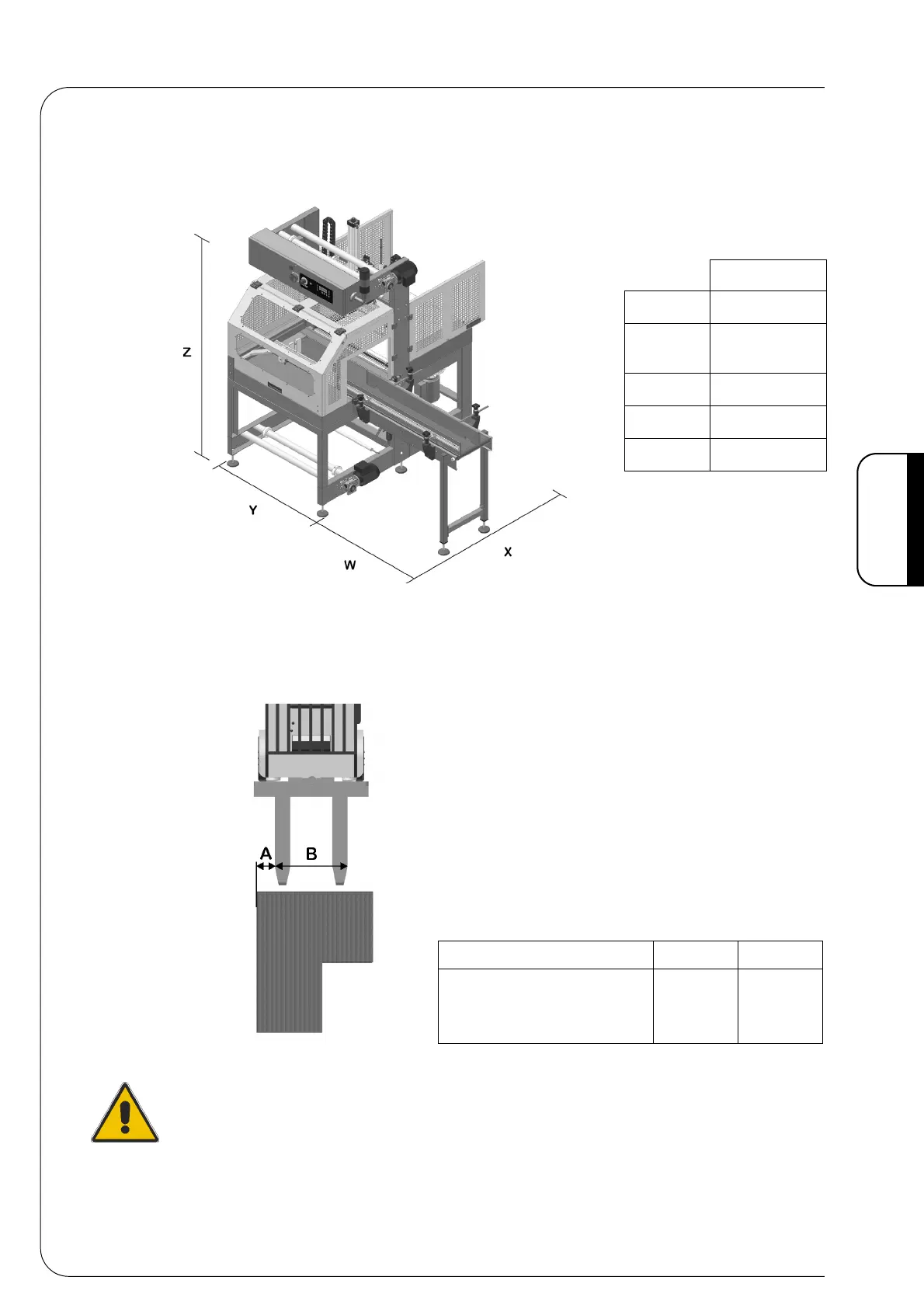

Fig. 2.3.1
ßP700AR/310
X
1605
Z
min. 1940
max. 2000
Y
930
W
1010
WEIGHT Kg 375
SMIPACK S.p.A. in function of the means
of transport and of the type of products to be
shipped utilizes pac It is recommended to handle with
great care the machine during transport and positioning.
The forwarder is responsible for every damage that may
occur during transport.
Unpack the unit making sure not to damage any
exposed parts
The distance to observe A and B, to lift the machine are:
MODELLO
AB
ßP700AR/310
360
mm
900
mm
