Basic Operation and Navigation Basic Navigation
8

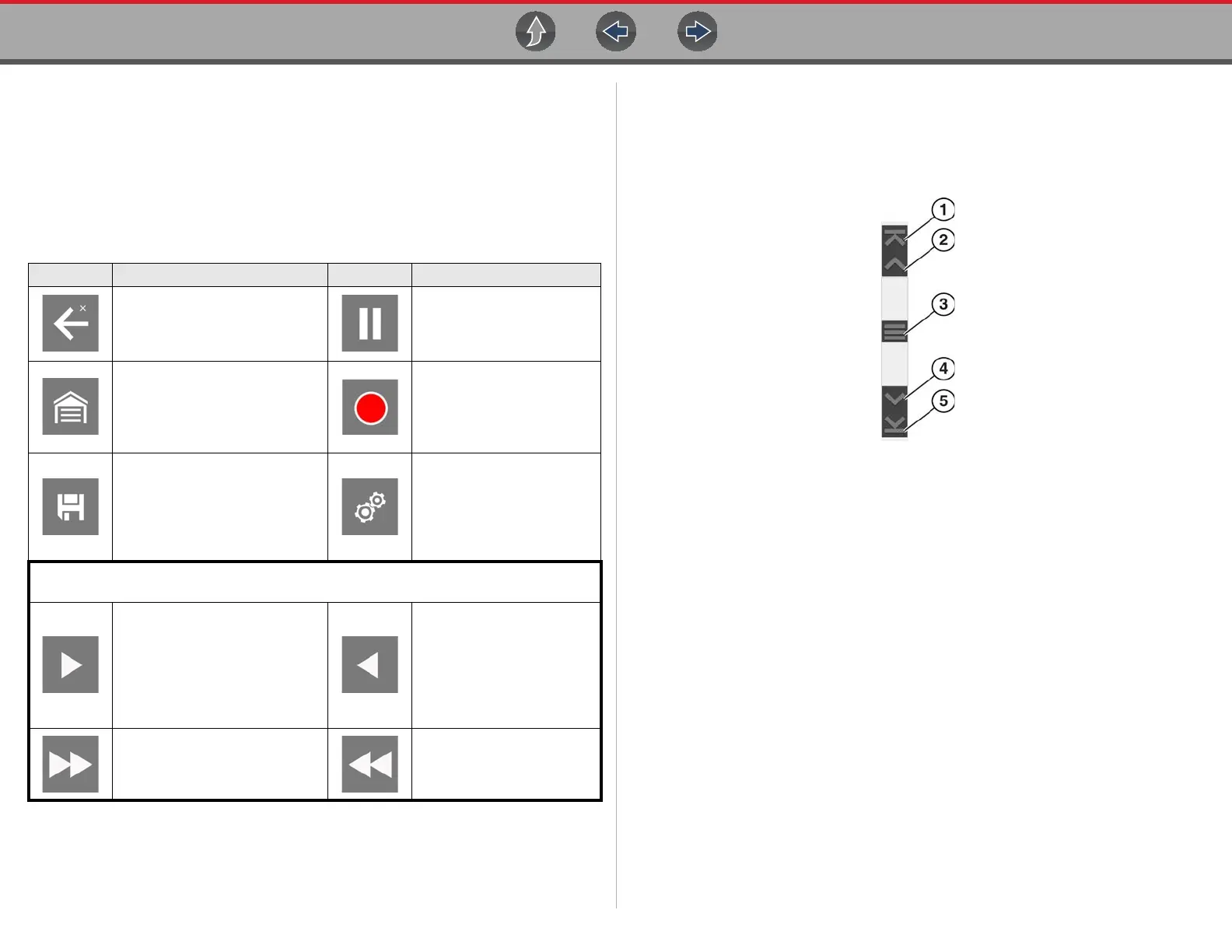

3.3.4 Common Toolbar Control Icons
Common control icon functions are described in the following table. Specific
function control icons are described in their applicable sections. Displayed control
icons vary depending on the active function or test.
Select a control icon to perform a function. You can also use the control buttons to
select an icon. Use the directional button to highlight the desired function and then
press the Y/Accept button to select it.
3.3.5 Scroll Bar
A vertical scroll bar appears along the right-hand edge of the screen when
additional data expands above or below what is currently on the screen
(Figure 3-3).
Figure 3-3 Scroll bar
1— Beginning - Moves to beginning of data displayed.
2— Step up - Moves up one increment of the data displayed.
3— Slider (position indicator) - Select and drag the Slider to scroll through
data. The slider indicates the relative position of the current screen to the
total available data.
4— Step down - Moves down one increment of the data displayed.
5— End - Moves to end of data displayed.
The Up and Down directional buttons can also be used to move through the data
one line at a time. Press and hold a directional button to rapidly scroll through data.
Icon Function Icon Function
Back - Returns to the previously
viewed screen. Icon is located
on the left-hand edge of the
toolbar.
Pause - Indicates PID data
from the motorcycle is being
displayed. Selecting pauses
data collection.
Home - Returns to the Home
screen. Icon is located next to
the Back icon on the left side of
the toolbar.
Record - Indicates the data
being displayed is paused
and not being updated.
Selecting resumes data
collection.
Save - Writes data from buffer
memory to a file. The saved
“movie” file can be accessed for
future reference by selecting
Previous Vehicles and Data >
View Saved Data.
Tools - Opens the tools
menu.
The icons below are used to navigate through paused or saved data (“movie”) files
during review.
Step Forward - allows forward
movement in singular steps.
(Note: To quickly step forward
during Scanner data review,
press and hold the icon down.)
Step Back - allows
backward movement in
singular steps.
(Note: To quickly step
backward during Scanner
data review, press and hold
the icon down.)
Skip Forward - allows forward
movement in multiple steps.
Skip Back - allows
backward movement in
multiple steps.
