Scanner System Main Menu Options
16

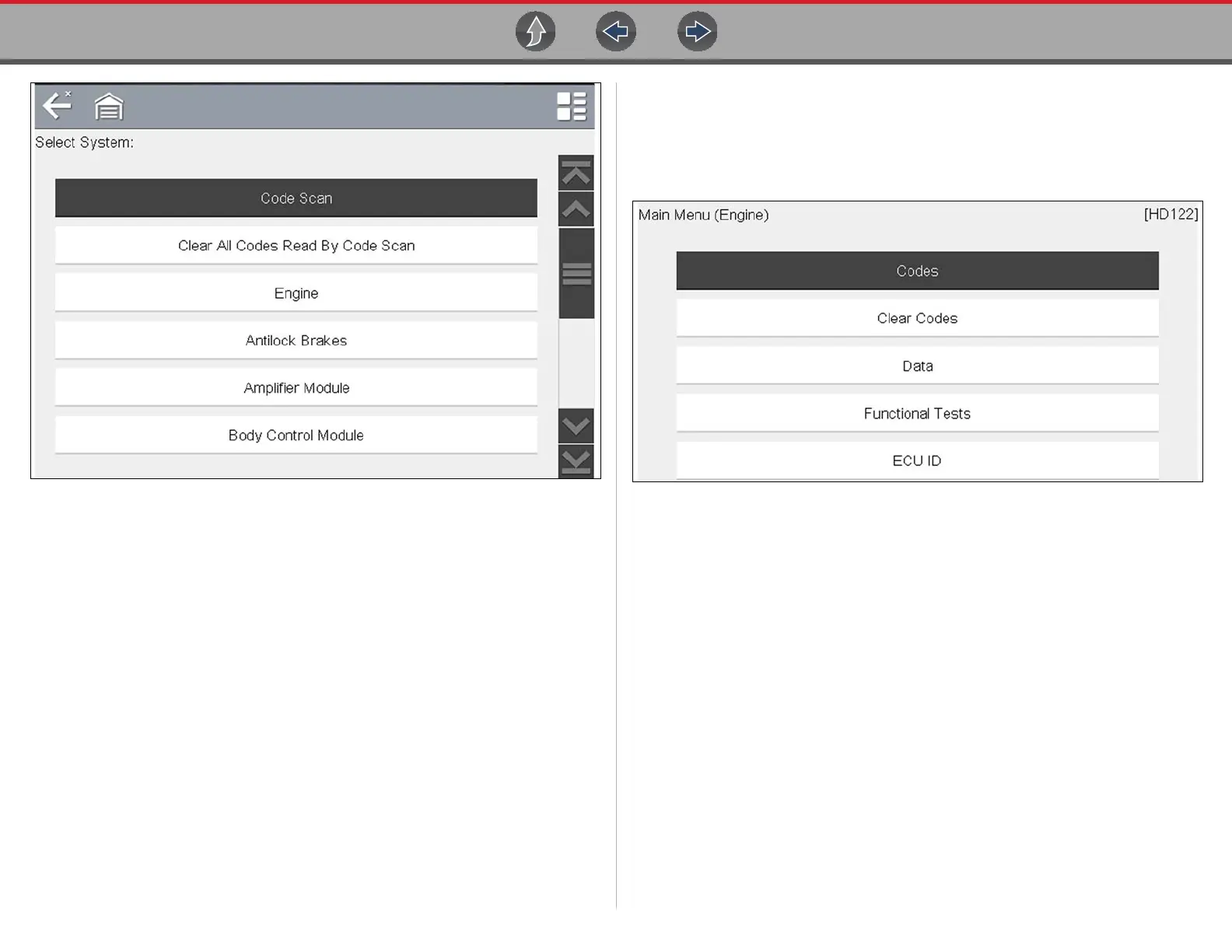

Figure 4-6 Typical systems menu (non-categorized list view)
4.3 System Main Menu Options
Once a System is selected (e.g. Engine, Antilock Brakes, etc) is selected, the
diagnostic tool will attempt to establish communication with the motorcycle, then
(once connected) will display (Figure 4-7) the system main menu (available tests).
Figure 4-7 Typical (Engine) main menu
– Menus and navigation will vary by motorcycle make and model.
The System Main Menu may include these typical selections:
• Codes—displays diagnostic trouble code (DTC) records from the control
modules. Selecting may open a submenu of viewing options. See Viewing
Codes on page 17.
• Clear Codes—erases DTC records and other data from the ECM. This
selection is found on a Codes submenu for some models. See Clear Codes on
page 17.
• Data— displays PID data from the control modules. Selecting may open a
submenu of viewing options. See Viewing and Saving Data on page 20.
• Functional Tests—provides specific subsystem tests. The tests vary
depending on the manufacturer and model. See Functional Tests on page 30.
• ECU ID—provides specific ECU information for the selected module.
