Snapmaker Artisan - Page 17

12-13

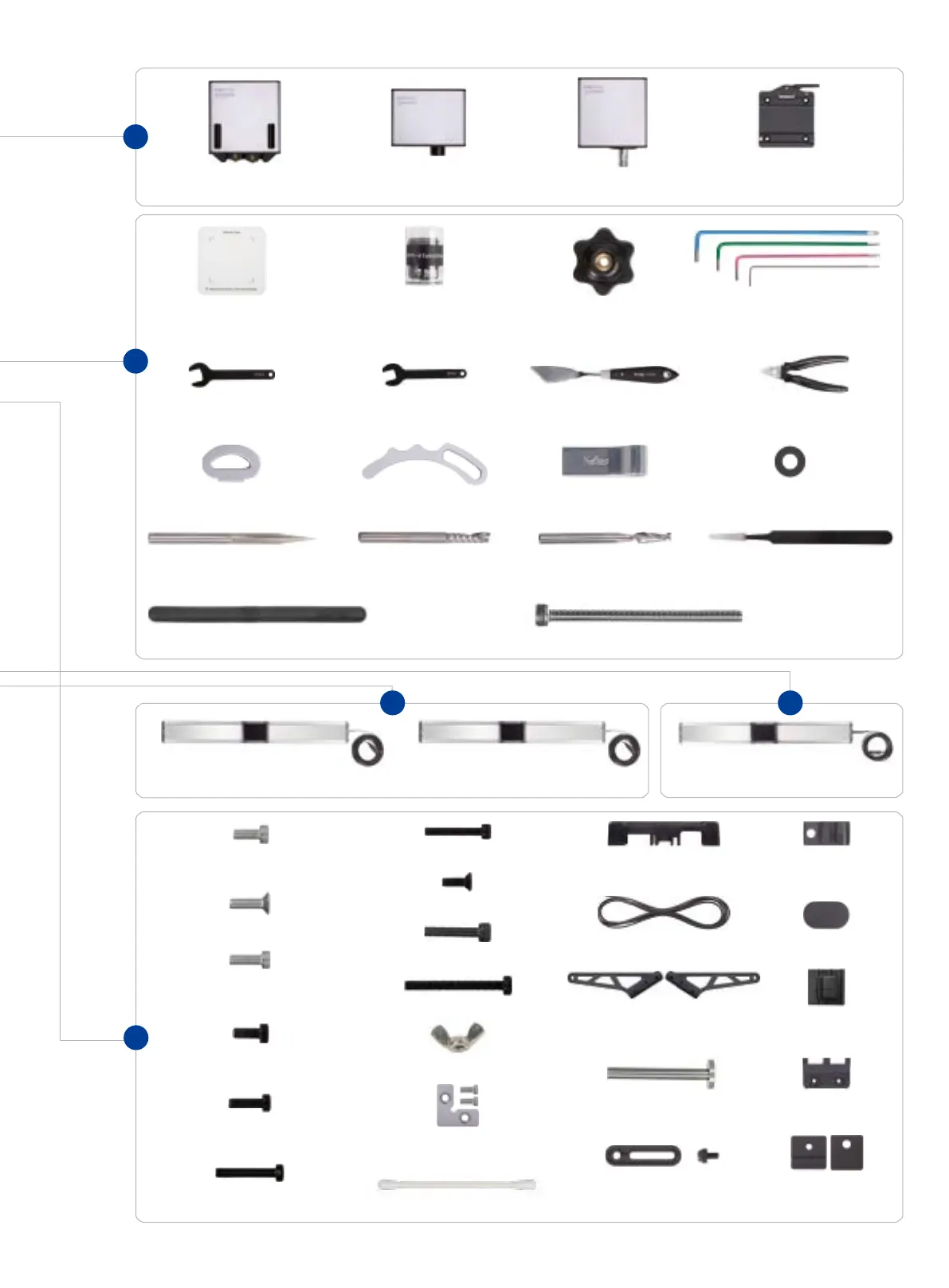

Before You Start
X-axis Linear Module × 1
M3 × 20 Screw × 3
M4 × 20 Screw × 7
M5 × 30 Screw × 20
M4 × 12 Flat Head Screw × 7
M4 × 35 Screw × 5
M5 × 16 Low Head Cap Screw × 12
(for Enclosure)
M4 Wing Nut × 5
Filament Tube Holder
× 2
Base Fixture (upper &
lower) × 2
Cable Pass-through Fixture × 1
Sealing Plug × 4
Sealing Strip × 1
Cable Clip × 4
Filament Tube Clip
× 2
L Bracket × 1
M4 × 12 Low Head Cap Screw × 2
Left Filament Holder Base × 1
Right Filament Holder Base × 1
Filament Holder Tube
× 2
Y-axis Linear Module × 2
Dual Extrusion Module × 1 200W CNC Module × 1
10W Laser Module × 1
Toolhead Bracket × 1
Z-axis Linear Module × 2
M5 × 16 Low Head Cap Screw × 18
(for machine󽘙
M5 × 12 Screw × 60
(for machine󽘙
M5 × 16 Flat Head Screw × 5
Laser Material Fixture × 4
M6 × 16 Screw × 8
Diagonal Pliers × 1
Tweezers
× 1
Palette Knife × 1
Wire Brush × 1
Calibration Target × 1
Flat End Mill
(double-flute) × 1
Flat End Mill
(single-flute) × 1
Straight Groove V-bit
(double-flute) × 1
14mm Open-end Wrench
× 1
17mm Open-end Wrench
× 1
Arched Fixture × 4
Fixture Accessory × 4
USB Flash Drive × 1 Laser Lens Protector × 1
Star Knob × 4 H3.0/H2.5/H2.0/H1.5
Hex Key × 4
ER11 Collet & ER11 Nut
× 1
M5 × 12 Screw × 12
(for Enclosure)
A2
A4
A8 A7
A5
M4 × 60 Screw × 4
Cotton Swab × 5
