Machine Assembly
02
/22

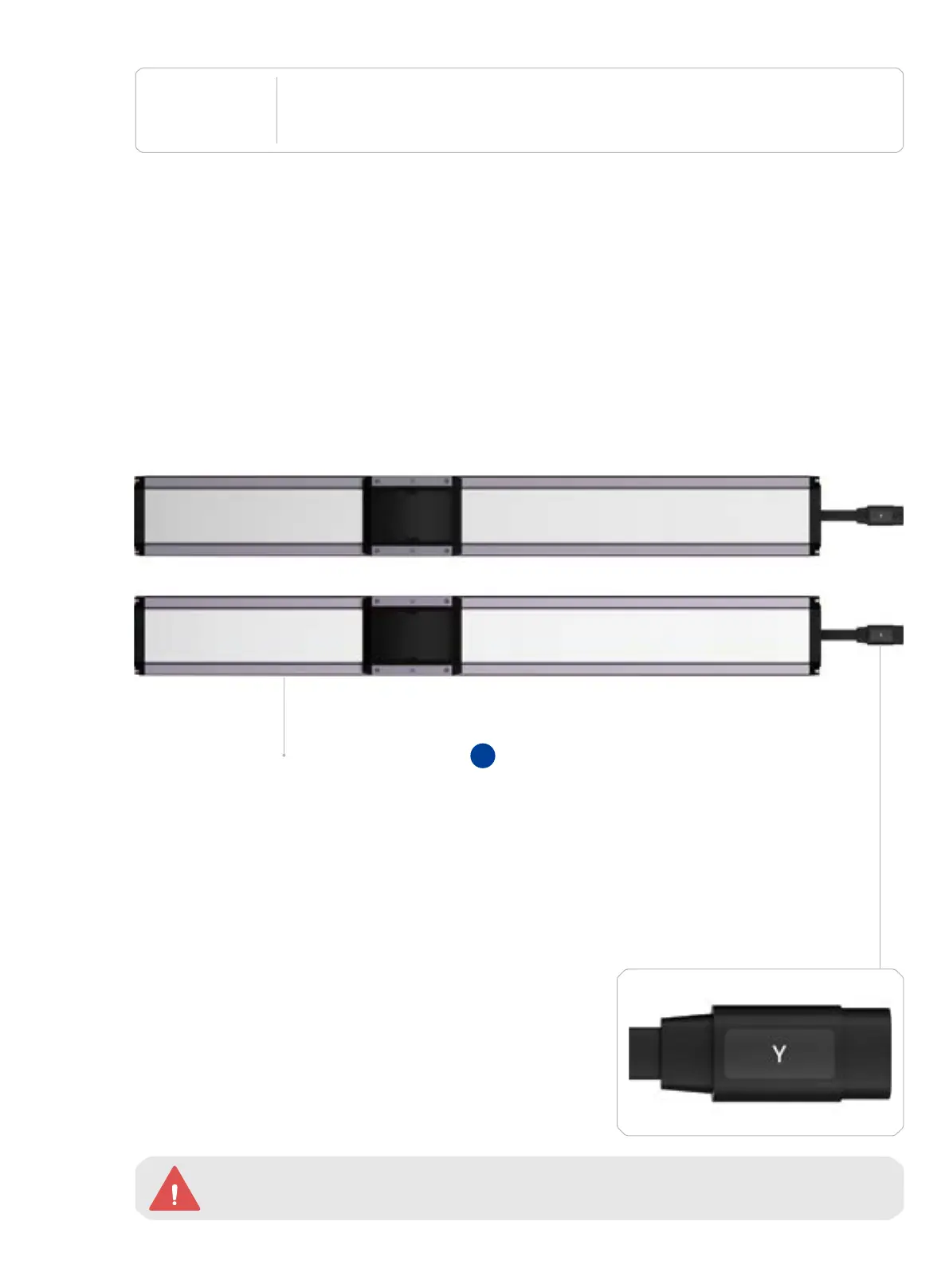

Identify the two Linear Modules labeled with "Y" on the
cable connector. They will be the Y axes.
All the Linear Modules must be installed in their intended position. Incorrect installation or
mixed use of the Linear Modules will result in malfunction of or damage to the machine.
Y-axis Linear Module × 2 A8
