30-31
Machine Assembly

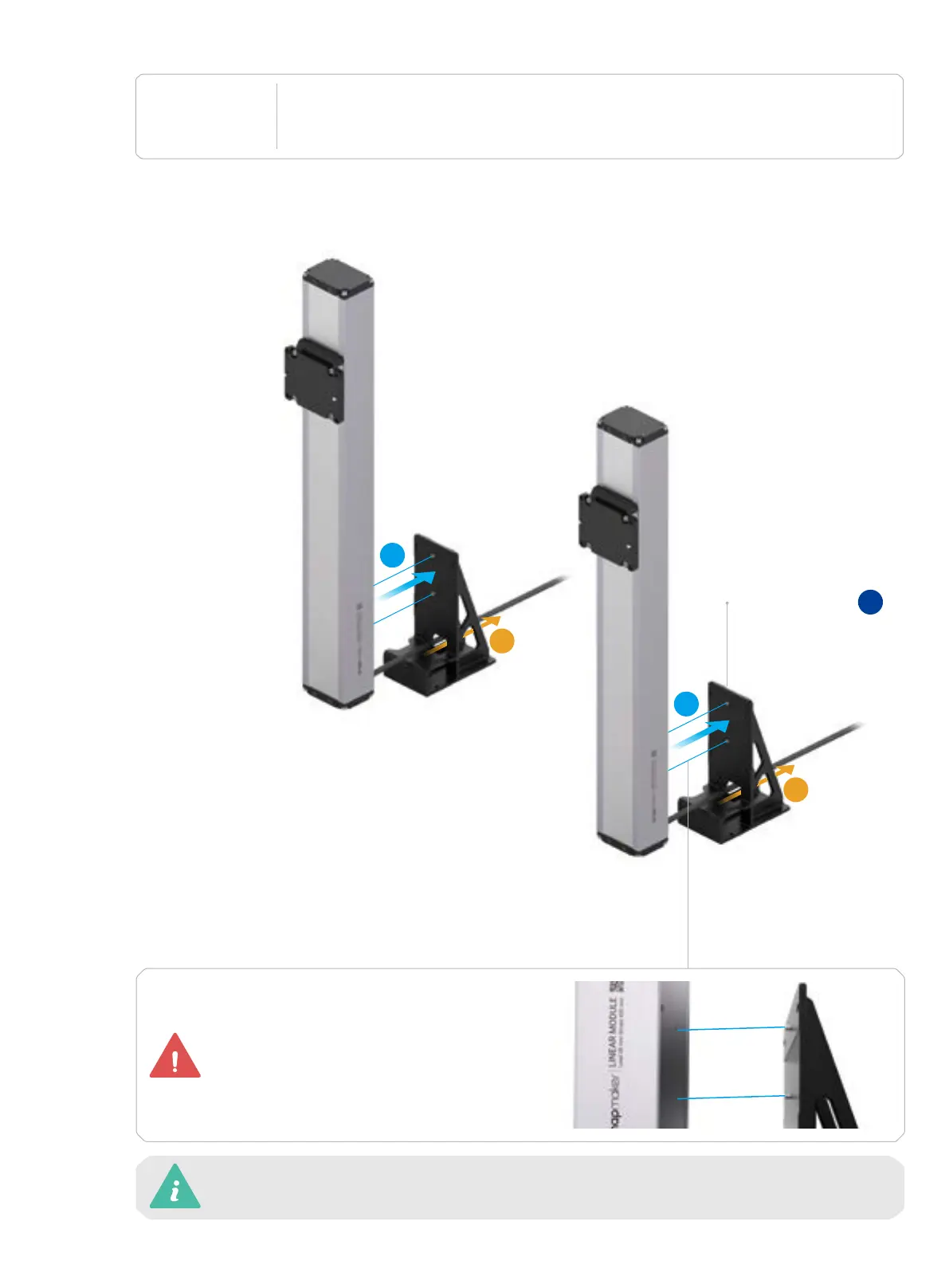

Thread the Z-axis cables through the cable holes, and
then insert the dowels of the Z-axis holders into the
dowel holes of the Z axes.
Make sure to fully insert the
dowels into the dowel holes.
10
/22
2
1
There is an intended clearance of about 2 mm between the bottom of the Z axis and the Z-axis
holder.
2
1
Z-axis Holder × 2 B3
