BTP-M280 User’s Manual
- 32 -
3) Electrical features
¾ Output signal:
The available differential mode voltage is more than 450mV，and peak voltage is less than 13V.
The common mode AC peak voltage is less than 2.5V.
¾ Input signal:
The differential mode voltage that more than 160mV is identified as available signal
4) Interface shall use RJ45 outlet which accord with 10BASE-T standard of IEEE802.3.

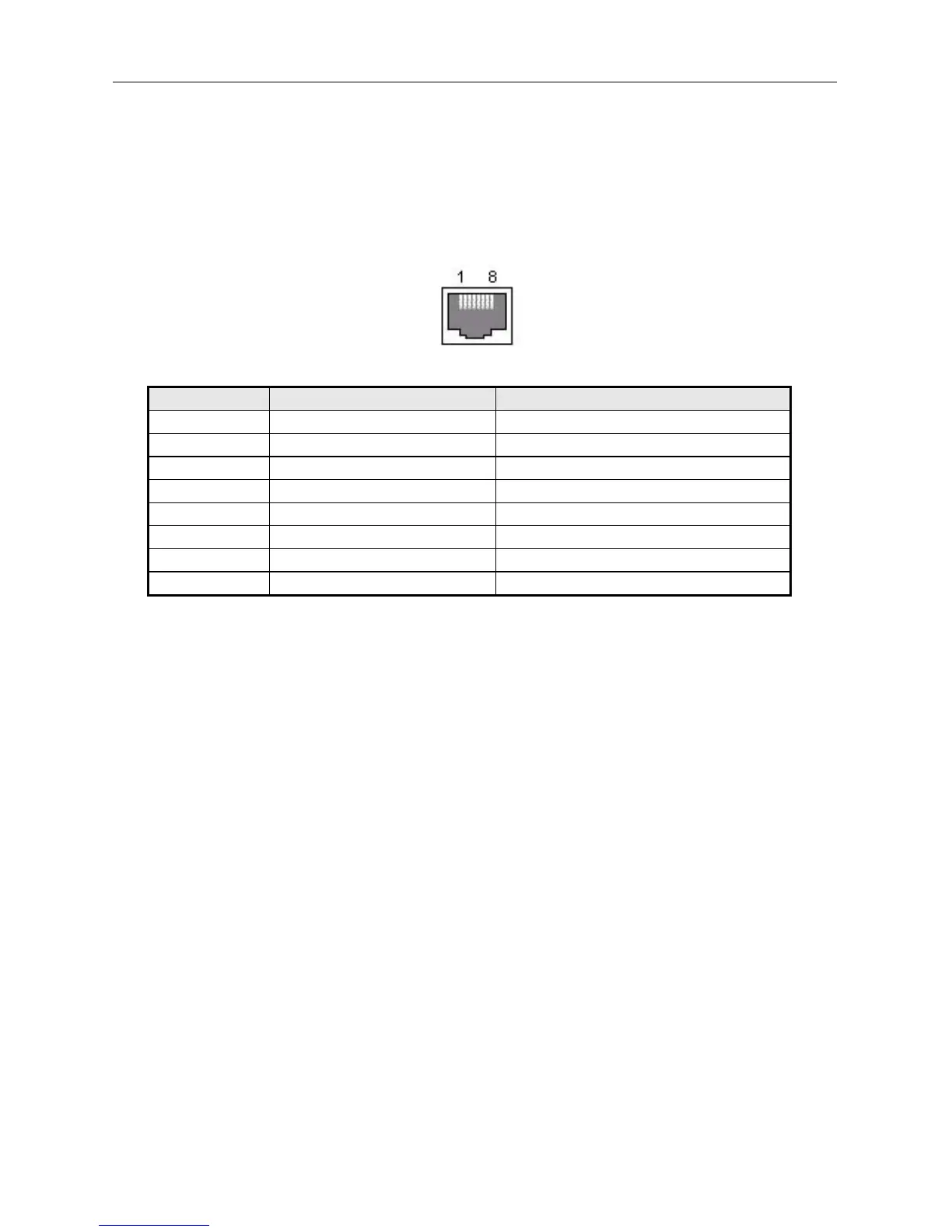

5) Interface signal definition
Pin Signal name Instruction
1 TX+ Data transmission+
2 TX- Data transmission-
3 RX+ Data receiving+
4 NC Reserve
5 NC Reserve
6 RX- Data receiving-
7 NC Reserve
8 NC Reserve
6.5 WLAN Interface Board
1) Interface features
¾ Supports 802.11b, 802.11g protocol
¾ Supports 9100 port printing,LRP printing
¾ Supports status back
¾ Supports parameter configuration
¾ Supports Firmware update on-line
¾ Supports HTTP protocol
2) Protocols supported
¾ IP
¾ ARP
¾ ICMP
¾ TCP
¾ UDP
¾ DHCP
¾ TFTP
¾ HTTP
For detailed specification, please refer to User Manual Of WLAN Interface Module.
