Vega 30 Router User Manual Connecting RollCall Control Panel Vega 30 RollCall Templates 7.1
Issue1 Revision 1 Page 106 © 2017 SAM
,
Each Vega 30 routing template screen contains a similar Screen Selection Box, see Figure
77. This is used to navigate between the Vega 30 Routing Matrix template screens.
All the template screens are described in sections below.

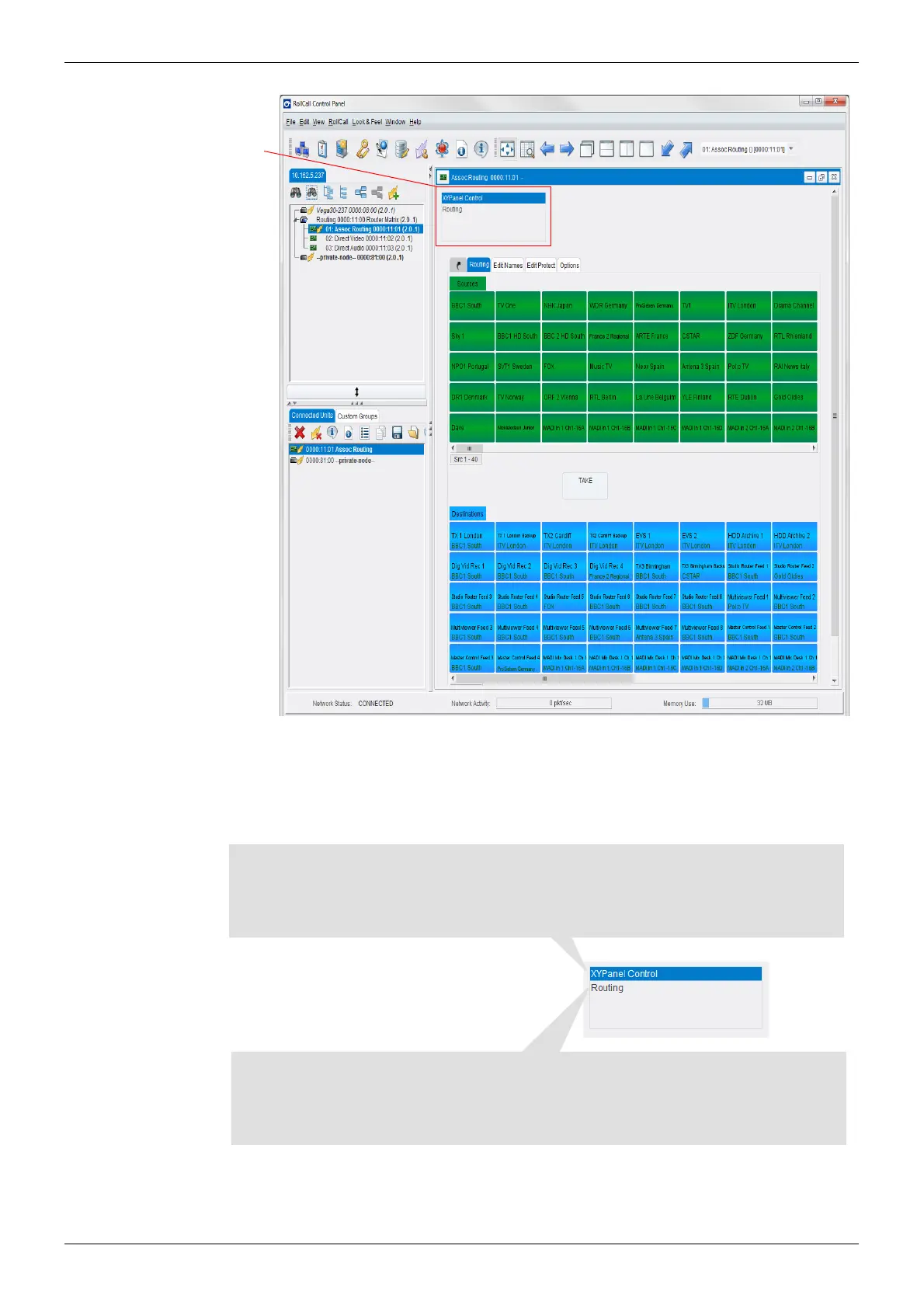

Figure 77 Vega 30 Assoc Routing Template
Figure 78 Vega 30 Routing Item Screen Selection Box
Assoc Routing: Section 7.9 “Assoc Routing - Routing Template” on page 148.
Direct Video: Section 7.11 “Direct Video - Routing Template” on page 151.
Direct Audio: Section 7.13 “Direct Audio - Routing Template” on page 153.
Assoc Routing: Section 7.8 “Assoc Routing - XY Panel Control Template” on page 135.
Direct Video: Section 7.10 “Direct Video - XY Panel Control Template” on page 150.
Direct Audio: Section 7.12 “Direct Audio - XY Panel Control Template” on page 152.
