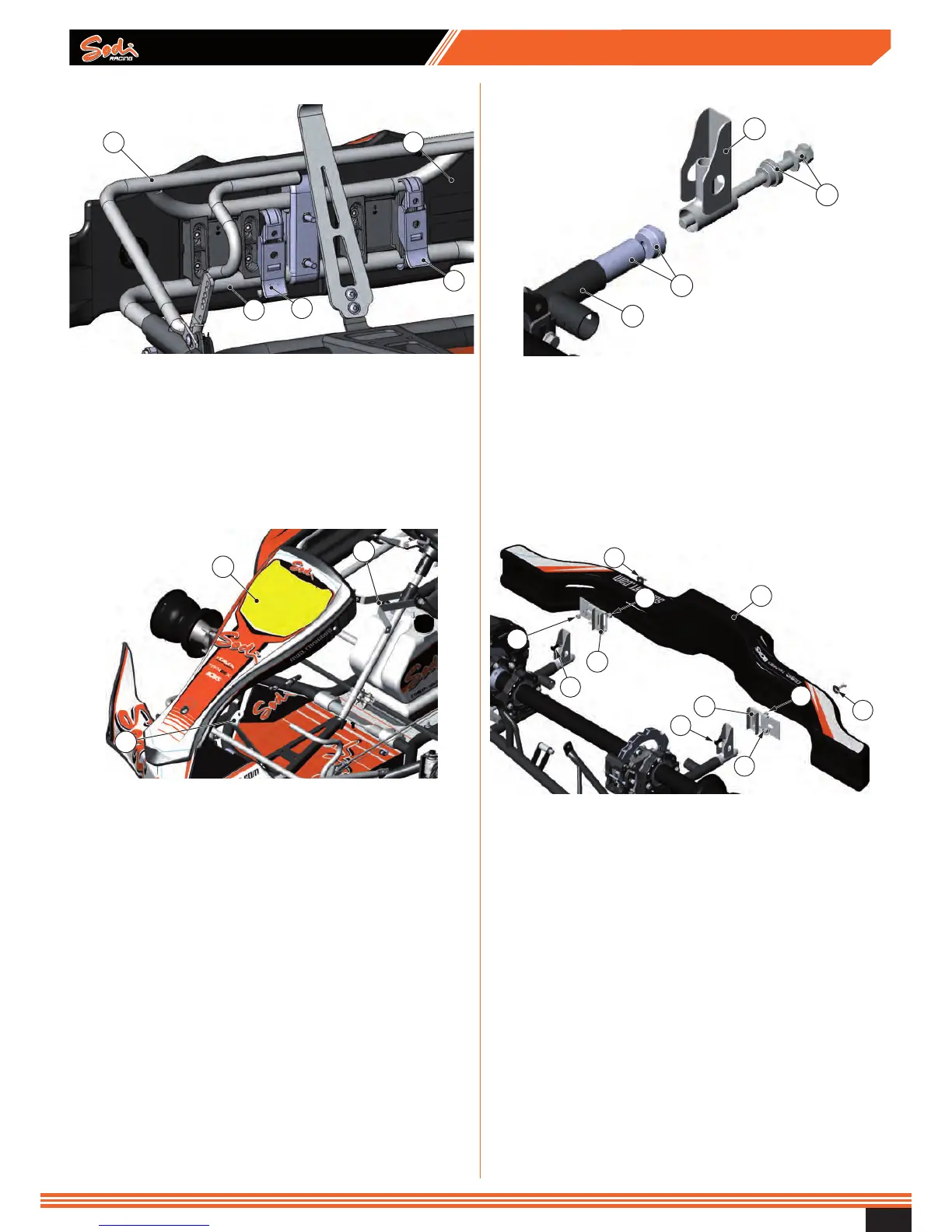

Step 7
6
6
3
2 1
Legend
2 Upper support
3 Lower support
6 Clamp
● Place the spoiler (1) between the spoiler supports (2) and
(3).
● Tighten the spoiler (1) and the spoiler supports (2) & (3)
with the 2 clamps (6).
Step 8
2
1
3
Legend
1 Nassau panel
2 Lower support
3 Upper support
● Tighten the nassau panel (1) on its supports (2) and (3)
with screws, nuts, and washers.
3.10 - Mounting the rear protections
3
1
1
2
Legend
1 Mounting kit
2 Bumper support
3 Tube chassis
● Assemble the mounting kit (1) with the element of the
bumper support (2).
● Mount the assembly in the tube chassis (3), tighten with
the screw of the xing kit (1).
● Apply the same procedure for the other side.
4
5
7
9
7
7
7
6
6
4
6
Legend
4 Bumper support
5 Bumper
6 Screw + nut
7 Screw + nut
● Assemble bumper support (4) on the bumper (5) using
screws and nuts (6).
● Assemble the bumper (5) on the chassis with screws and
nuts (7).
