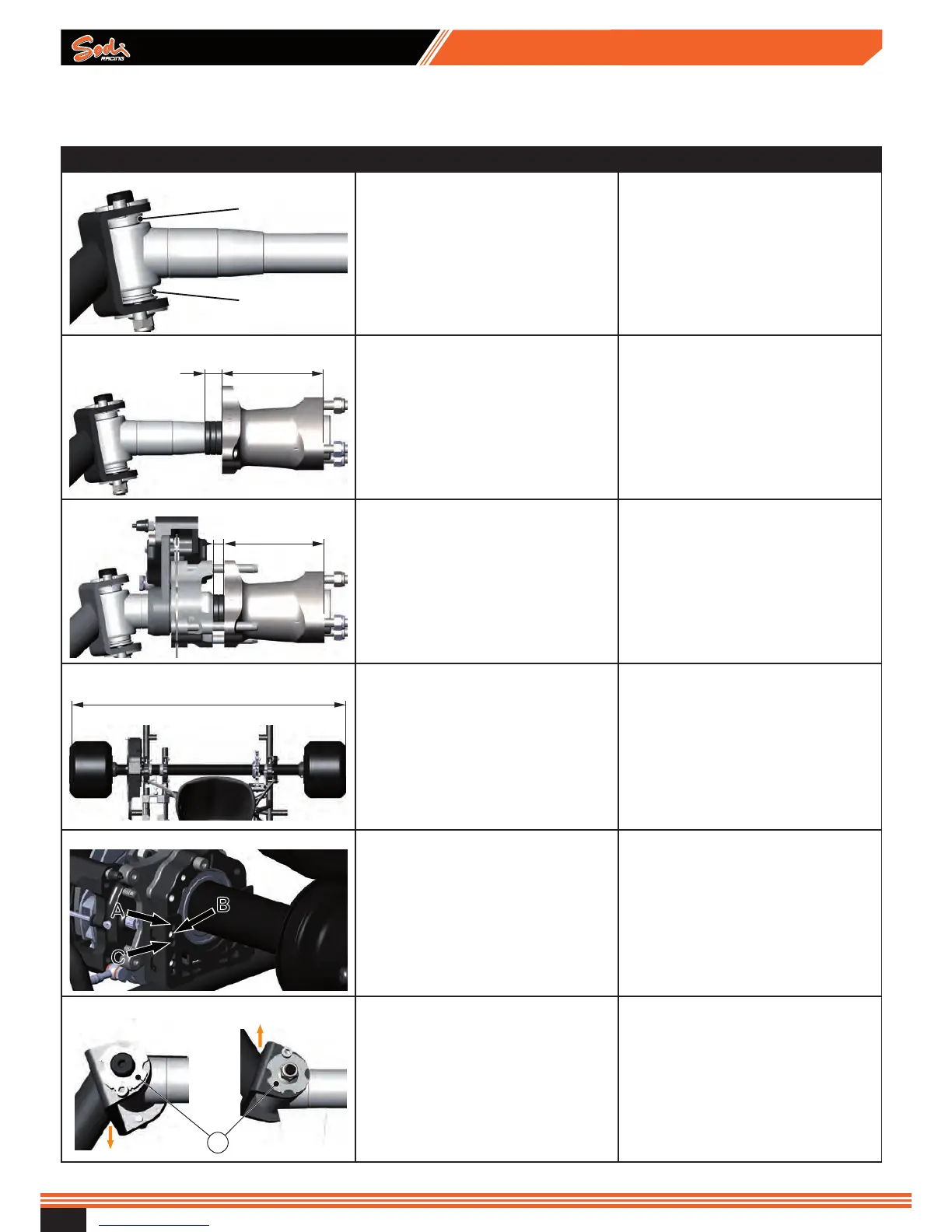

5 - Adjustments
5.1 - Standard adjustments
Dry track Wet track
Stub axle height
A
B
Sigma RS - KZ - DD2
A = 4 mm
B = 2 + 4 mm
Sigma RS - KZ - DD2
A = 2 + 4 + 4 mm
B = 0 mm
Front tracking width
A
B
Sigma RS
A = 3 rings inside (15 mm)
B = 90 mm
Sigma RS
A = 5 rings inside (25 mm)
B = 100 mm
Front tracking width (with front brake)
A
B
Sigma RS
A = 2 rings inside (10 mm)
B = 90 mm
Sigma KZ - DD2
A = 3 rings inside (15 mm).
B = 90 mm
Sigma RS - KZ - DD2
A = 4 rings inside (20 mm).
B = 90 mm
Rear tracking width
A
Sigma RS
A = 1390 mm to 1400 mm
Sigma KZ - DD2
A = 1400 mm
Sigma RS
A = 1360 mm to 1380 mm
Sigma KZ - DD2
A = 1370 mm to 1380 mm
Rear axle position
A
B
C
Sigma RS - KZ - DD2
B : Medium
Sigma RS
B : Medium
Sigma KZ - DD2
B : High
Position of eccentrics
1
A
1
Front
Front
C
B
Sigma RS - KZ - DD2
A : eccentrics 1°
B : TOP Mark forward
C : BOTTOM Mark inside
Sigma RS - KZ - DD2
A : eccentrics 3° and 4°
B : TOP 4° Mark forward
C : BOTTOM 3° Mark Backward
