Manuel d'entretien et d'utilisation
user maintenance guide

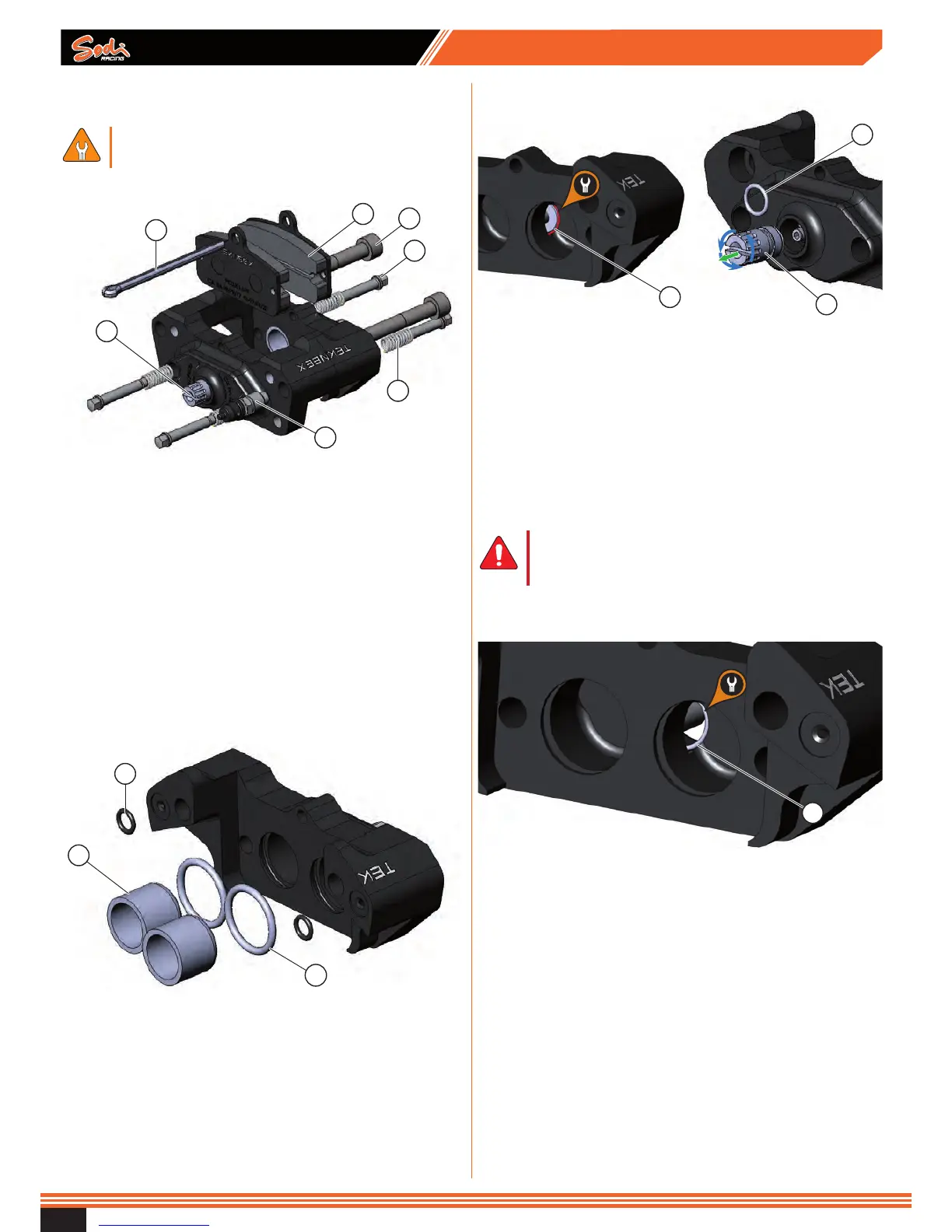

6.2.2 - Replacing calliper seals / 4 piston caliper
pistons D20 (rear)
This operation must be performed by a Sodikart
dealer.
Removing
2
3
5
4
1
6
7
Legend
1 Adjustment screw
2 Return screw
3 Spring (not on KZ and DD2)
4 Pin
5 Brake pad
6 Bleeder screw
7 Mounting screw
● Adjust the brake pads until they reach the stop using the
adjustment screws (1). Remove the four return screws (2)
and the four springs (3).
● Untwist the ends of the pin (4) and then remove it.
● Remove the brake pads (5).
● Remove the bleed screw (6) and its cap.
● Disconnect the yoke by removing the two mounting screws
(7).
9
10
11
Legend
9 O-ring
10 Piston
11 Gasket
● Remove the two O-rings (9), the two pistons (10), and the
two seals (11) from each half-calliper.
13
12
14
Legend
12 Clip
13 Piston stop
14 O-ring
● Remove the piston stop clip (12) using ne pliers or a
scriber.
● Loosen the piston stop (13) and remove the O-ring (14).
● Apply the same procedure for the second half-calliper.
● Clean the half calliper bodies. Do not use WD40 or other
greasy products to clean the callipers.
► Do not use any cleaning product that could
damage the seals. A brake uid leak could
appear, causing a serious or fatal accident..
Reassembly
12
Legend
12 Clip
● Place a new piston stop clip (12) in position.
