5.2.4 - Adjustment of the camber
● Use the eccentrics at the bottom.

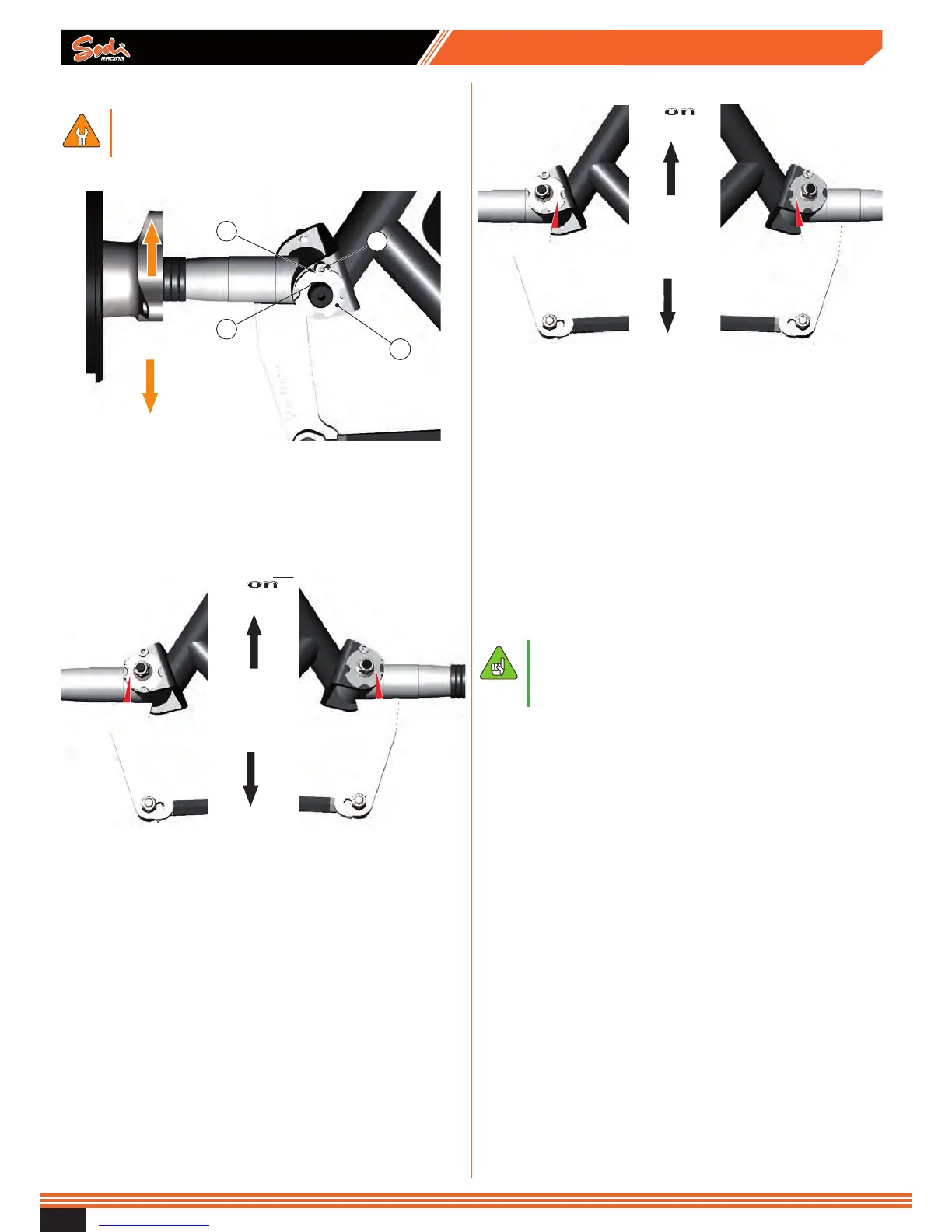

Description of the eccentric.
Front
1
3
2
Rear
1
4
Legend
1 Eccentric
2 Screw on the fork
3 Marked slot
4 Mark
(1=0.5°, 2 eccentric marked “1” gives 1°)
Camber - More positive
Front
Rear
1
1
Eccentrics at the bottom:
● The mark is positioned towards the outside of the chassis.
Camber - More negative
Front
Rear
1
1
Eccentrics at the bottom:
● The mark is positioned towards the inside of the chassis.
Standard adjustment
● 1° Lower eccentrics place in negative camber position .
Increase the camber
● Same position as the “More negative” adjustment by
replacing the lower 1° eccentric by the 2° eccentric.
Reduce the camber
● Same position as the “More positive” adjustment. See
“Camber - More positive”.
● For high degrees eccentrics to be used in extreme
conditions, refer to the ITAKA web site
● Some negative camber generally improves the
performances of the kart.
Note: To facilitate adjustment of camber and caster, it is
possible to loose the screw (2). In this case be careful to
not lose the screw.
