Sodi SIGMA - Assembly; Precautions and recommendations

MAN_Sigma_16_GB_00
8
03/2016
MAN_Sigma_16_GB_00
Manuel d'entretien et d'utilisation
user maintenance guide
3 - Assembly
3.1 - Precautions and recommendations
● Tightening torque Ø 6 = 10 to 12 mN.
● Tightening torque Ø 8 = 12 to 23 mN.
● Tightening torque Ø 10 = 23 to 47 mN.
● Tightening torques for rims on hub : 25 mN.
● Screws without bolts: 1 drop of special glue (LU861.001).
● Lubricate rotating parts, ball joints, gas cable ...
● Do not overtighten screws and bolts.

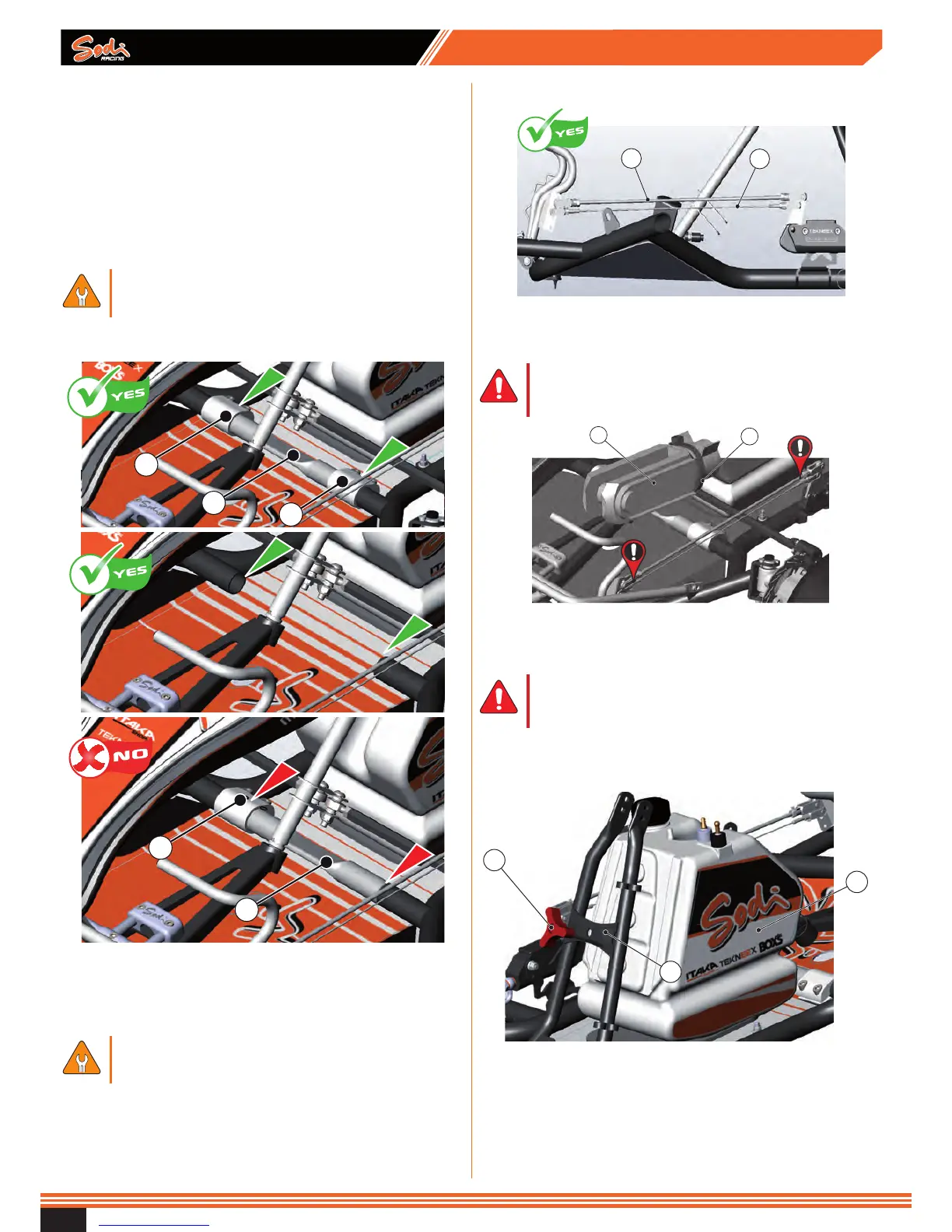

3.2 - Frame stabilizers
1
1
2
2
2
Legend
1 Frame stabilizer
2 Stabilizer sleeve
● Always attach the stabilisers to the frame with
a sleeve at each side.
3.3 - Positioning of the safety brake cable
1
2
Legend
1 Safety cable
2 Brake rod
► Always t the safety cable clips (1) under the
staples of the brake rod (2).
1
2
Legend
1 Spring clip
2
Plastic collar “Rilsan”
► Securing clips (1) of the brake control with a
plastic tie “Rilsan” (2).
3.4 - Assembly of the fuel tank and of the
overow bottle
3
2
1
Legend
1 Fuel tank
2 Steering column support
3 Fly nut
● Insert the fuel tank (1) between the steering column
support (2).
● Tighten the fuel tank (1) with the y nut (4).
