8 Nm
15 Nm
Legend
6 Bleeder screw
7 Mounting screw
● Tighten the 2 screws (7). Torque 15 Nm, applying a drop of
weak thread locking compound to each screw.
● Tighten the bleed screw and its cap (6).
Torque 8 Nm.
● Reinstall brake pads (refer to the section on Cleaning/
Replacement of rear brake pads).
● Always use new seals and clips.
● Replace any defective parts, using only
original SODIKART parts.
● Install a new set of pads after any servicing of
the callipers.
6.2.3 - Replacing master cylinder seals and pistons
This operation must be performed by a Sodikart
dealer.
Removing
3
4
1
2
4
4
Legend

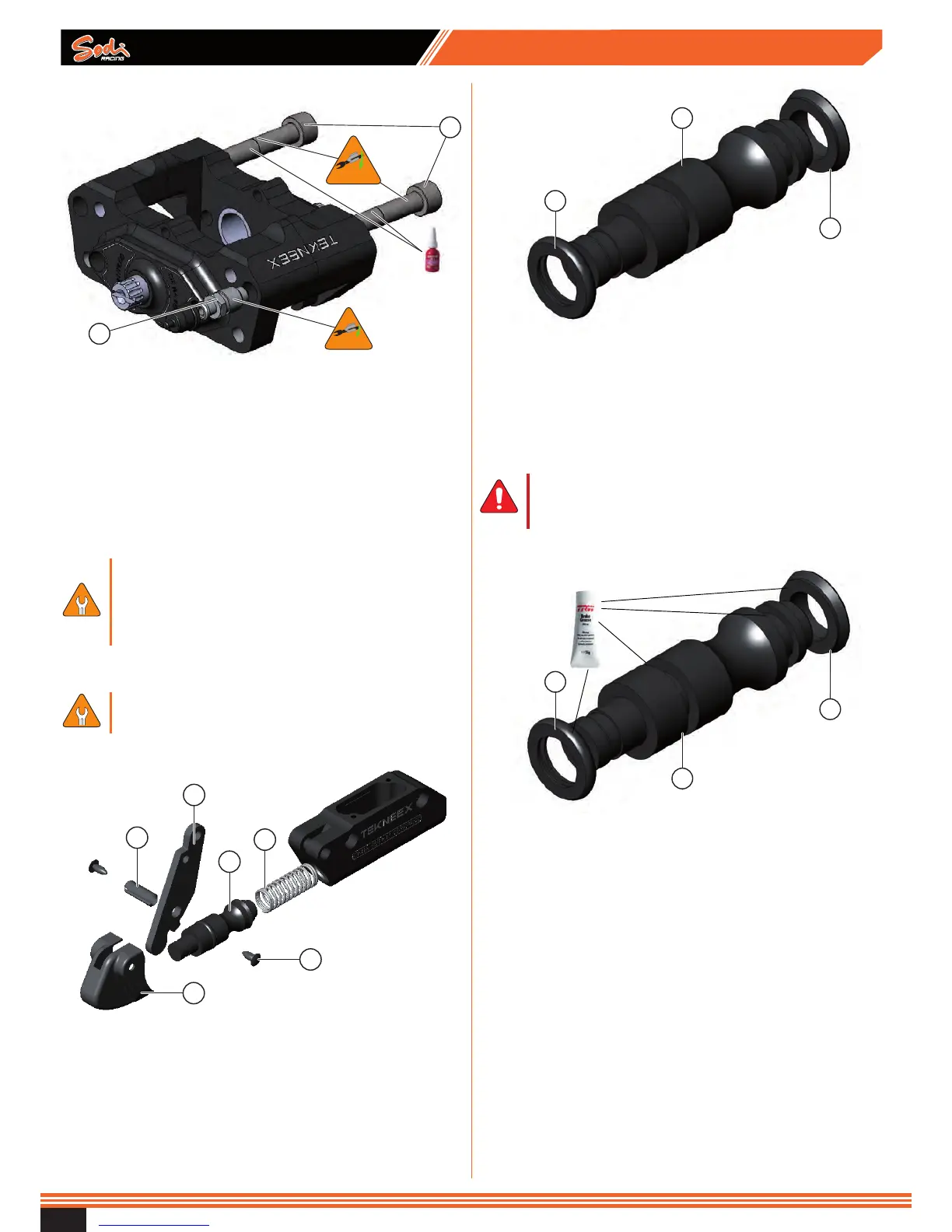

1 Pressure pin
2 Dust cover
3 Pin
4 Lever & piston
● Remove the two pressure pins (1) and the dust cover (2).
● Withdraw the pin (3) and remove the piston lever assembly
(4) from the master cylinder.
7
6
5
Legend
5 Piston
6 Gasket
7 Seal
● Remove the gasket (6) and the seal (7).
● Clean the body of the master cylinder. Do not use WD40 or
other greasy products to clean the master
► Do not use any cleaning product that could
damage the seals. A brake uid leak could
appear, causing a serious or fatal accident
Reassembly
7
6
5
PFG110
Legend
5 Piston
6 Gasket
7 Seal
● Apply PFG110 grease to the gasket (6) and the seal (7).
● Place the gasket (6) in the piston groove (5).
● Install the seal (7) on the piston (5).
● Apply PFG110 grease to the gasket (6), the seal (7), and
the piston (6).
