MAN_Sigma_16_GB_00
9
MAN_Sigma_16_GB_00
03/2016
Manuel d'entretien et d'utilisation
user maintenance guide
7
9
8
10
4
5
6

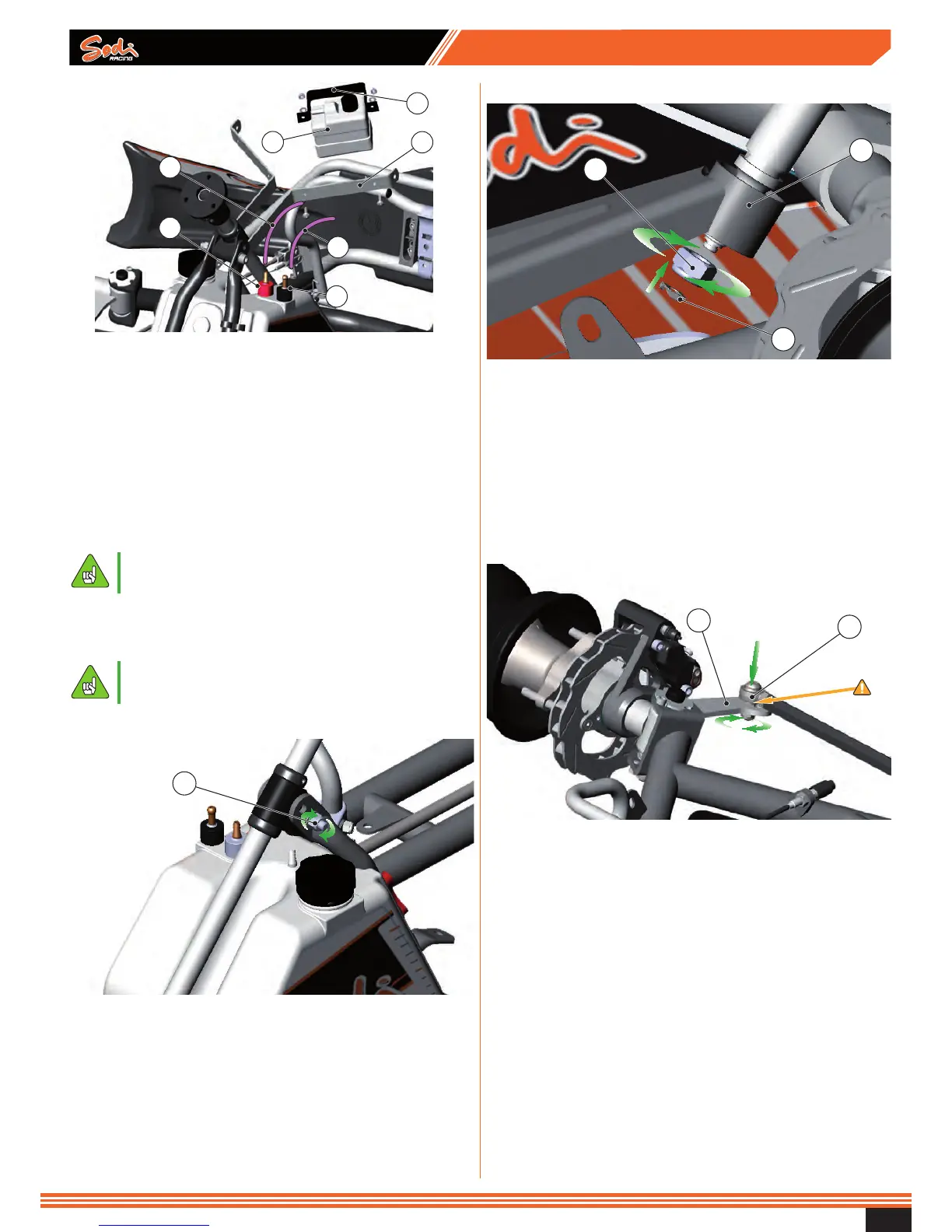

Legend
4 Overow bottle
5 Nassau panel support
6 Overow bottle support
7 Overow bottle hose
8 Return
9 Petrol tank hose
10 Red plug
Put the overow bottle (4) on the nassau panel support (5)
with the overow bottle support (6).
Connect the overow bottle hose (7) to the return (8).
Connect the petrol tank hose (9) to the red plug (10).
Check the presence of the diver under the red
plug.
3.5 - Assembly of the steering column and
steering wheel
See chapter “standard settings” for the
assemblies’ dimensions which correspond to the
standard setting recommended for your frame.
Step 1
1
Legend
1 Screw + nut
Tighten the nut (1).
Tighten the assembly.
Step 2
2
1
3
Legend
1 Ball joint
2 Nut
3 Fastener clip
Insert the threaded end of the steering column in the ball
joint (1).
Tighten the nut (2).
Tighten the assembly.
Put the fastener clip (3).
Step 3
2
1
Legend
1 Ball joint
2 Stub axle arm
Cut the tie-wrap maintaining the stub axles.
Place the ball joints (1) above the stub axle arm (2).
Insert the screw into the stub axle arm.
Place the washer between the ball joint (1) and the stub
axle arm (2).
Tighten the nut.
Tighten the assembly.
