Sodi SIGMA - Adjustment of the caster

MAN_Sigma_16_GB_00
19
MAN_Sigma_16_GB_00
03/2016
Manuel d'entretien et d'utilisation
user maintenance guide

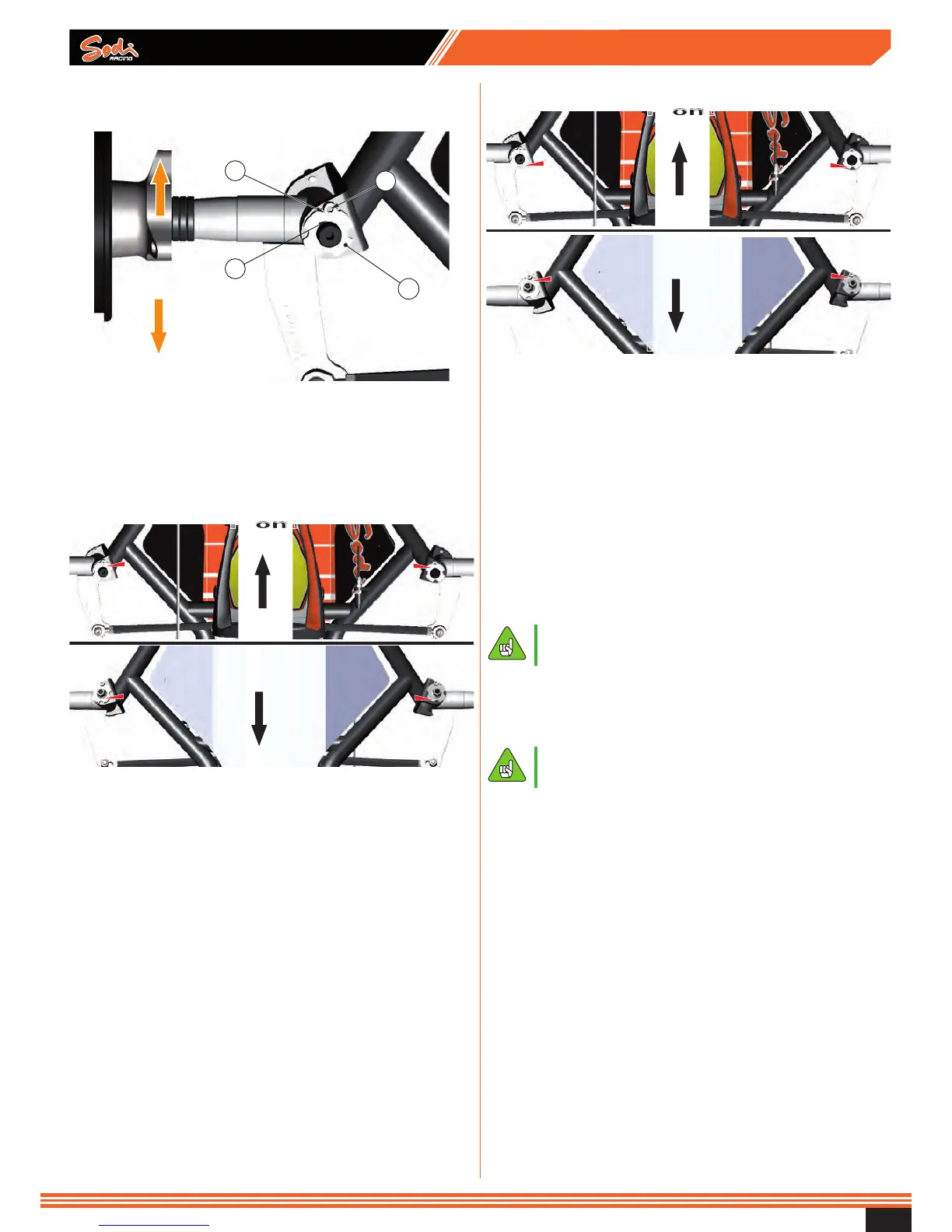

5.2.3 - Adjustment of the caster
Description of the eccentric.
Front
1
3
2
Rear
1
4
Legend
1 Eccentric
2 Screw on the fork
3 Marked slot
4 Mark
(1=0.5°, 2 eccentric marked “1” gives 1°)
Adjustment of the caster - High
1
Front
Rear
1
1
1
1
Eccentrics on top:
● The mark is positioned in front of the screw.
(Towards the front of the chassis).
Eccentrics on bottom:
● The mark is positioned on the opposite side of the screw.
(Towards the rear of the chassis).
Adjustment of the caster - Low
1
Front
Rear
1
1
1
1
Eccentrics on top:
● The mark is positioned on the opposite side of the screw.
(Towards the rear of the chassis).
Eccentrics on bottom:
● The mark is positioned in front of the screw.
(Towards the front of the chassis).
Standard adjustment
● 1° upper eccentrics place in high caster position .
Increase the caster
● 2° eccentric in high caster position.
● In extreme conditions, use 3°, 4° or more
eccentrics.
Reduce the caster
● 2°or 3° eccentric in low caster position.
● In extreme conditions use eccentrics higher
degrees..
