Sodi SIGMA - Page 17

MAN_Sigma_16_GB_00
17
MAN_Sigma_16_GB_00
03/2016
Manuel d'entretien et d'utilisation
user maintenance guide

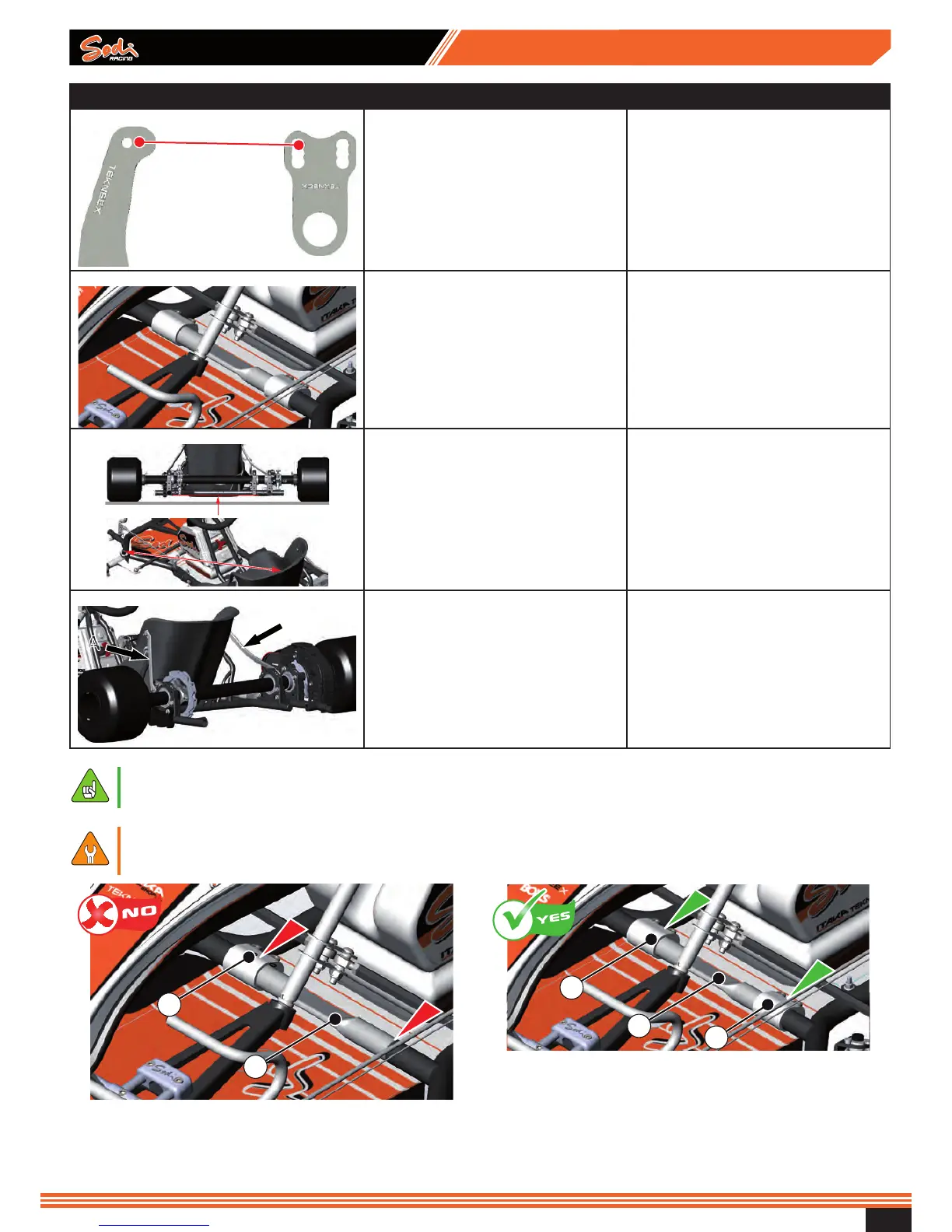

Dry track Wet track
Position of steering tie rods ends
1
2
B
C
A
Sigma RS Short tie rod
A 2
Sigma KZ - DD2 Long tie rod
B 1
Sigma RS Short tie rod
A 2
Sigma KZ - DD2 Short tie rod
A 2
Front stabilizer
Sigma RS - KZ - DD2
Remove or place the stabilizer following
track conditions.
Sigma RS - KZ - DD2
Remove or place the stabilizer following
track conditions.
Position of seat
B
A
Sigma RS
A = Lower face of the tubes (0 mm)
B = 1040 mm ± 10 mm
Sigma KZ - DD2
A = Lower face of the tubes (0 mm)
B = 1045 mm ± 10 mm
Sigma RS
A = Lower face of the tubes (0 mm)
B = 1040 mm ± 10 mm
Sigma KZ - DD2
A = Lower face of the tubes (0 mm)
B = 1060 mm ± 10 mm
Seat stiffeners
A
B
Sigma RS
Left side (A) : 2
Right side (B) : 1
Sigma KZ
Left side (A) : 2
Right side (B) : 2
Sigma DD2
Left side (A) : 1
Right side (B) : 0
Sigma RS
Left side (A) : 2
Right side (B) : 1
Sigma KZ
Left side (A) : 2
Right side (B) : 2
Sigma DD2
Left side (A) : 1
Right side (B) : 0
● These adjustments are given for information. It is advisable to rene these adjustments according to track
conditions (weather - grip), driving, engine and tires.
● Always attach the stabilisers to the frame with
a sleeve at each side.
1
1
2
2
2
1
1
2
2
2
