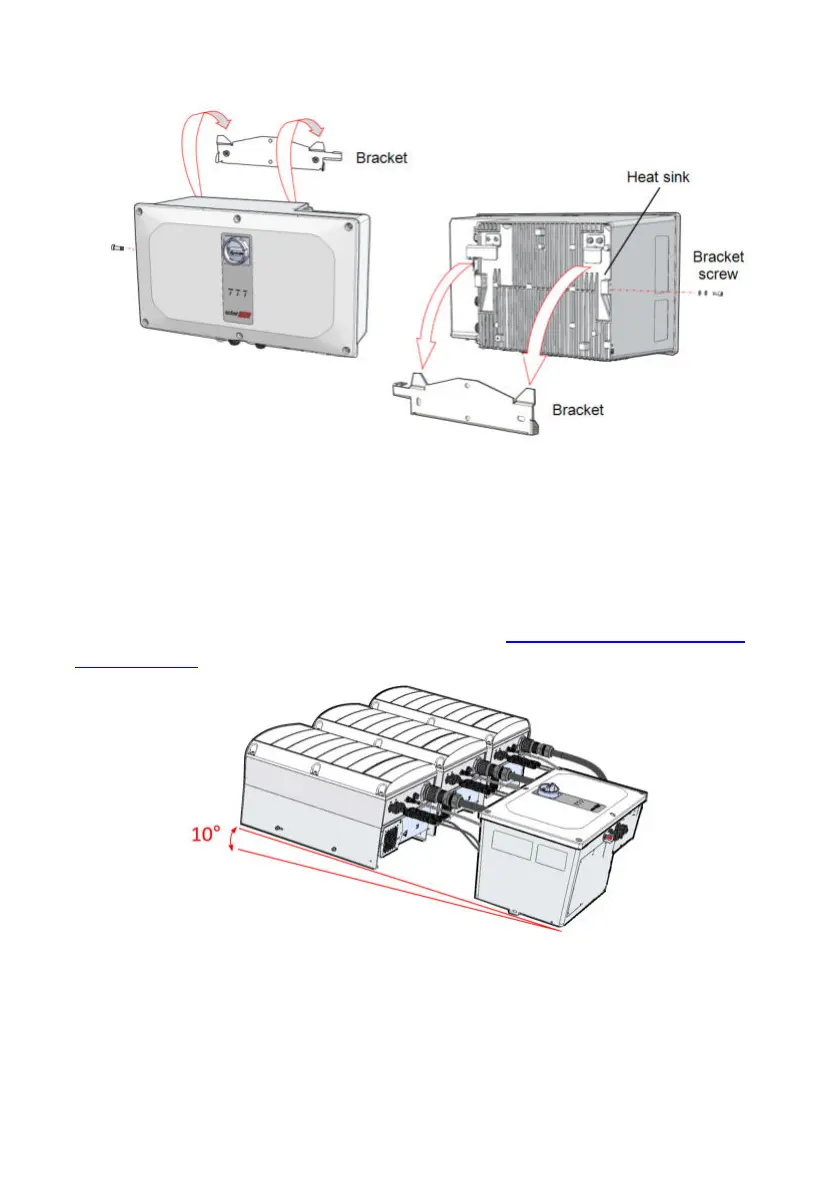

Figure 18: Hanging the Synergy Manager
Horizontal Mounting of the Inverter
The inverter can be installed horizontally, on a flat surface, at any tilt above 10° (see
Figure 19
). The inverter can be installed under or near the PV modules, thus saving roof
space and using the PV modules for shading the inverter.
For more information on horizontal mounting, refer to Horizontal Mounting of Three
Phase Inverters.
Figure 19: Horizontal mounting of the Inverter
Chapter 3: Installing the Synergy Manager and Synergy Units46
Three Phase Inverters with Synergy Technology PN: SExxK-xxxxIxxxx
