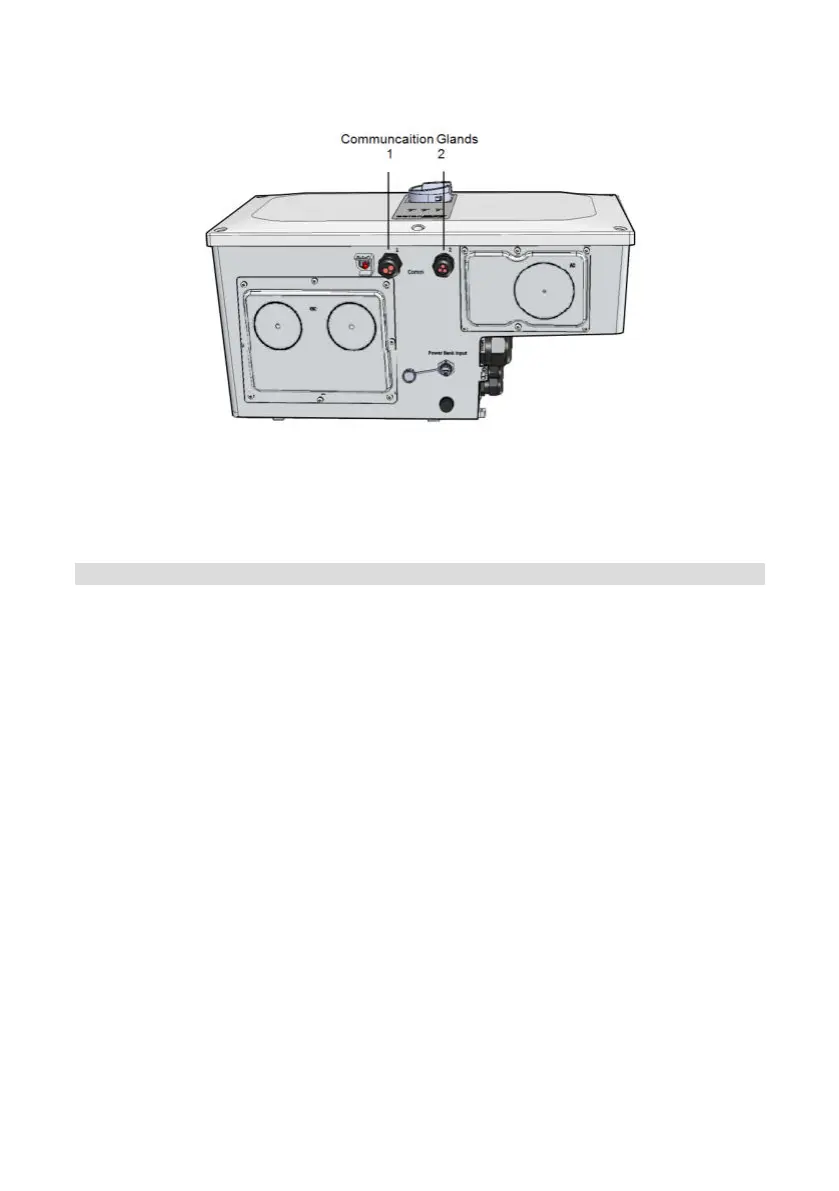

Figure 29: Synergy Manager - Communication Glands
Table63 describes the openings of the communication glands of the Synergy Manager.
Table 1: Synergy Manager - Communication Glans
Gland# Opening Functionality
Synergy
Manager
1
Three large openings
2.5-5 mm
Ethernet cable (CAT6), Power reduction
cable
2
Two large openings
4.5-7 mm
External antenna cable, RS485-1 and RS485
-2 cables (CAT6)
One small opening 2-
4 mm
External antenna cable
Chapter 5: Setting Up Communication with the Monitoring Platform63
Three Phase Inverters with Synergy Technology PN: SExxK-xxxxIxxxx
