For DC terminals without fuses : Use a standard flat-blade screwdriver to
connect the wires to the spring-clamp terminals.
The screwdriver blade should fit freely in the terminal opening.
Too large a blade can crack the plastic housing.
Insert the screwdriver and press the release mechanism and open
the clamp.
Insert the conductor into the round opening and remove the
screwdriver – the wire is automatically clamped.

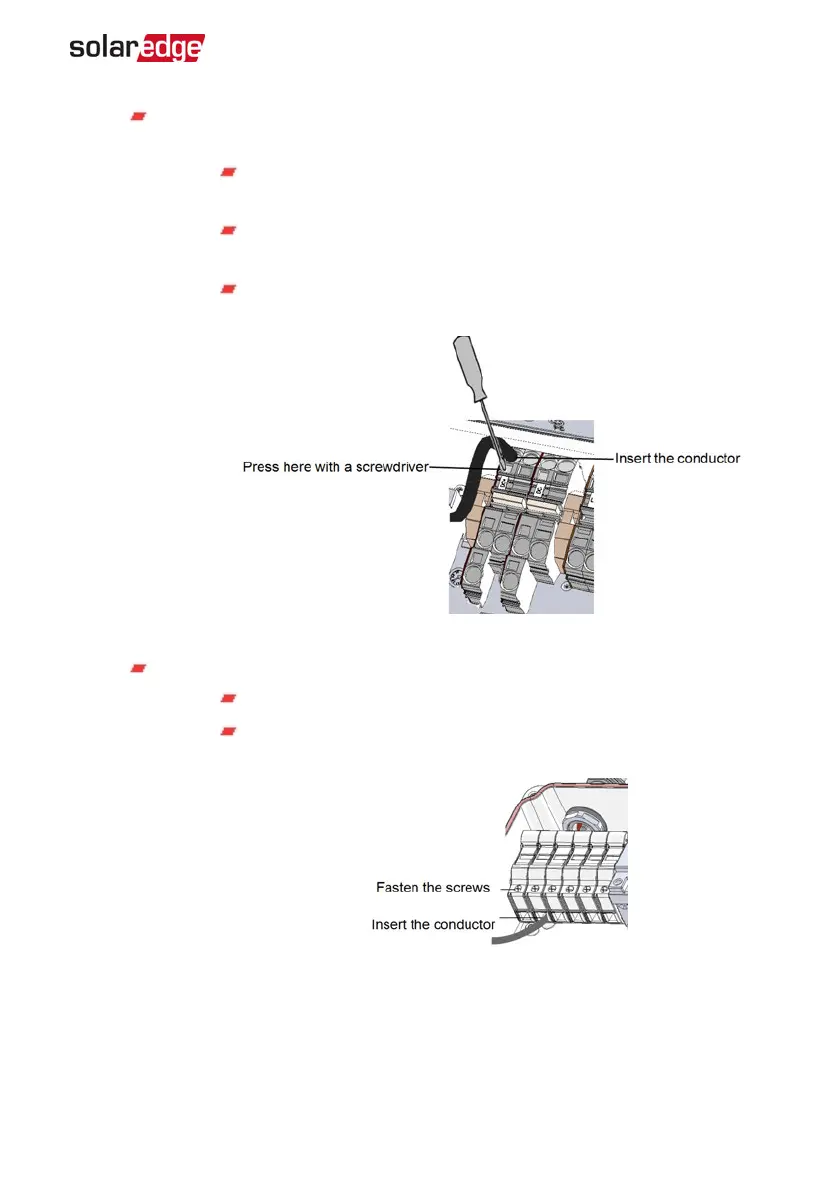

Figure 35: Spring-clamp terminals
For DC terminals with fuses :
Insert the wires into the side openings.
Fasten the screws at the top of the fuses. Apply torque of 3.4
N*M / 30 lb*in.
Figure 36: DC connection with fuses
4. Verify that there are no unconnected wires.
5. Close the DC Safety Unit cover: Attach the cover and secure it by tightening the four
screws with a torque of 1.2 N*m / 0.9 ft.*lb.
Appendix C: Connecting the AC and DCStrings to the DC Safety Unit 71
Three Phase System Installation Guide MAN-01-00505-1.2

SolarEdge SE5K Specifications

General

Model	SE5K
Manufacturer	SolarEdge
AC Output Power	5000 W
Rated AC Power	5000 W
Max. Efficiency	98.3%
Cooling	Natural convection
Protection Rating	IP65
Max. Input DC Voltage	480 V
Max. Input Current	11 A
Number of MPP Trackers	1
Warranty	12 years
Communication Interfaces	RS485, Ethernet
AC Voltage	230 V
Operating Temperature Range	-25°C to +60°C
MPPT Voltage Range	330-480V
