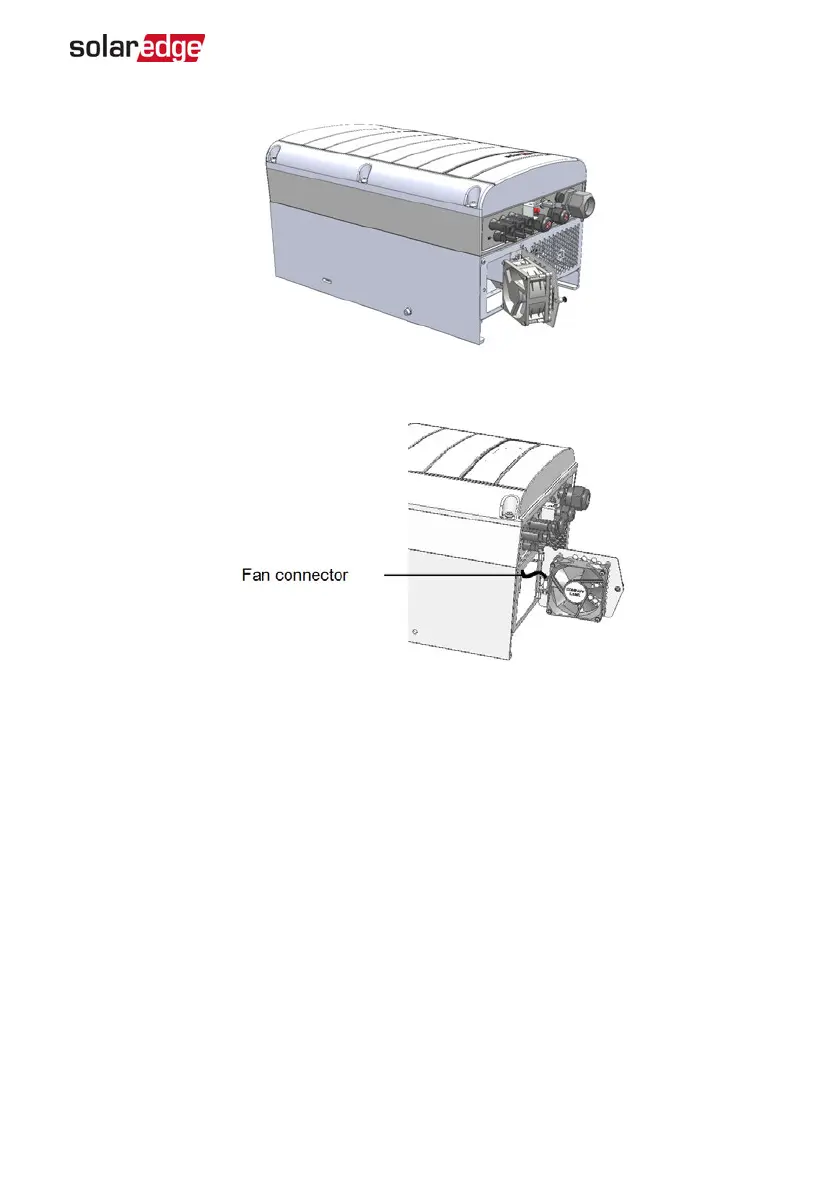

Figure 38: Fan door open
5.
Disconnect the fan connector and remove the fan.
Figure 39: Fan connector
6. Connect the fan connector to the new fan.
7. Close the fan door and fasten the cover screws.
Appendix E: External Fan Maintenance and Replacement 75
Three Phase System Installation Guide MAN-01-00505-1.2

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the SolarEdge SE5K and is the answer not in the manual?

SolarEdge SE5K Specifications

General IconGeneral
ModelSE5K
ManufacturerSolarEdge
AC Output Power5000 W
Rated AC Power5000 W
Max. Efficiency98.3%
CoolingNatural convection
Protection RatingIP65
Max. Input DC Voltage480 V
Max. Input Current11 A
Number of MPP Trackers1
Warranty12 years
Communication InterfacesRS485, Ethernet
AC Voltage230 V
Operating Temperature Range-25°C to +60°C
MPPT Voltage Range330-480V
