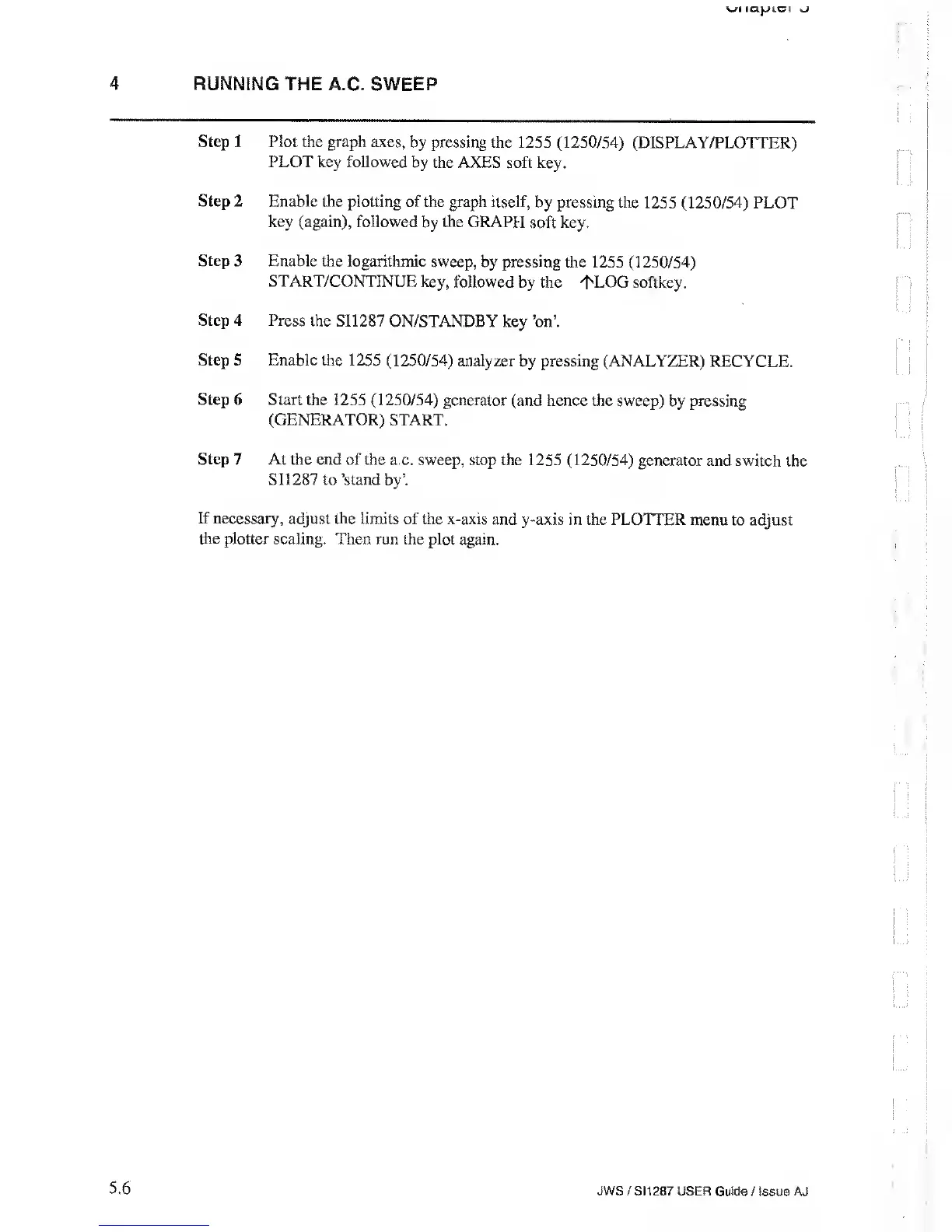

RUNNING THE A.C. SWEEP
Step 1 Plot the graph
axes,
by pressing the
1255 (1250/54)
(DISPLAY/PLOTTER)
PLOT
key followed
by the AXES soft key.
Step 2 Enable the plotting
of the graph itself,
by pressing the
1255
(1250/54)
PLOT
key (again),
followed by the GRAPH
soft key.
Step
3
Enable
the logarithmic
sweep, by pressing the
1255 (1250/54)
START/CONTINUE key,
followed by the
/
T
s
LOG
softkey.
Step 4 Press the SI1287
ON/STANDBY key ’on’.
Step 5 Enable the
1255
(1250/54)
analyzer
by pressing (ANALYZER)
RECYCLE.
Step
6
Start
the
1255 (1250/54)
generator
(and hence the sweep)
by pressing
(GENERATOR) START.
Step 7 At the end of the
a.c. sweep, stop the
1255
(1250/54)
generator and switch
the
SI1 287 to ’stand
by’.
If
necessary,
adjust the limits
of
the
x-axis and y-axis in the PLOTTER
menu to adjust
the
plotter scaling. Then run
the plot again.
5.6
JWS/SI1287
USER
Guide /Issue AJ
