2 A.C, SUPPLY
2.1 VOLTAGE
SELECTOR
Check that the setting
of the line
voltage
selector
on the rear
panel corresponds
with the
nominal line voltage of the local a.c. supply. (The setting in use
is
displayed in
a
small window in
the selector
flap.)
Lever open flap
from here

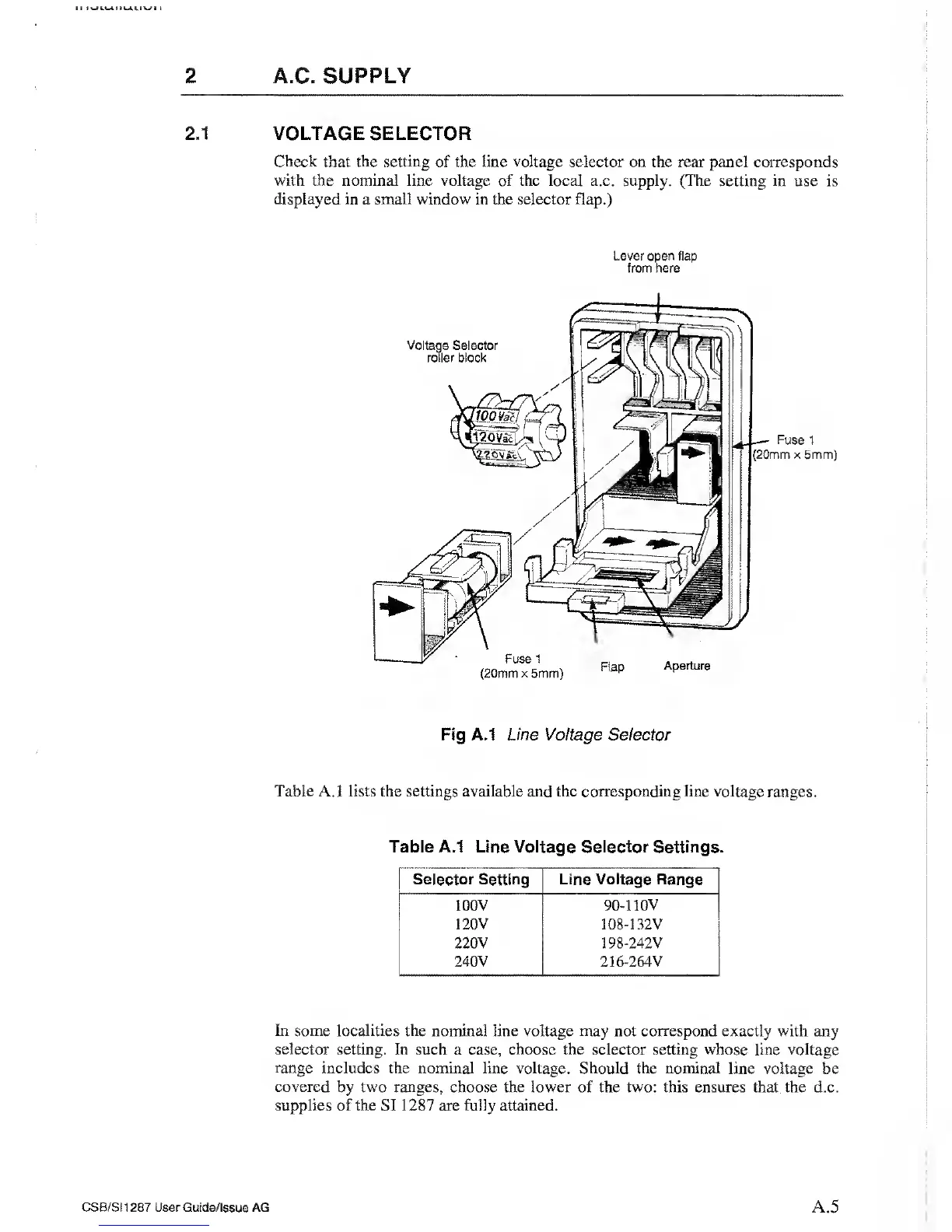

Fig
A.1
Line
Voltage Selector
Table
A.l lists the settings available and the corresponding line voltage ranges.
Table A.l Line Voltage Selector Settings.
Selector Setting Line Voltage Range
100V
90-1
10V
120V
108-
132V
220V 1 98-242
V
240V 21 6-264
V
In some localities the
nominal line voltage may not correspond exactly with any
selector setting. In such a case, choose the selector setting whose line voltage
range includes the nominal line voltage. Should the nominal
line voltage be
covered
by
two
ranges, choose the lower of the two: this ensures that the d.c.
supplies of the SI 1287 are fully attained.
CSB/SI1287 User Guide/Issue AG
