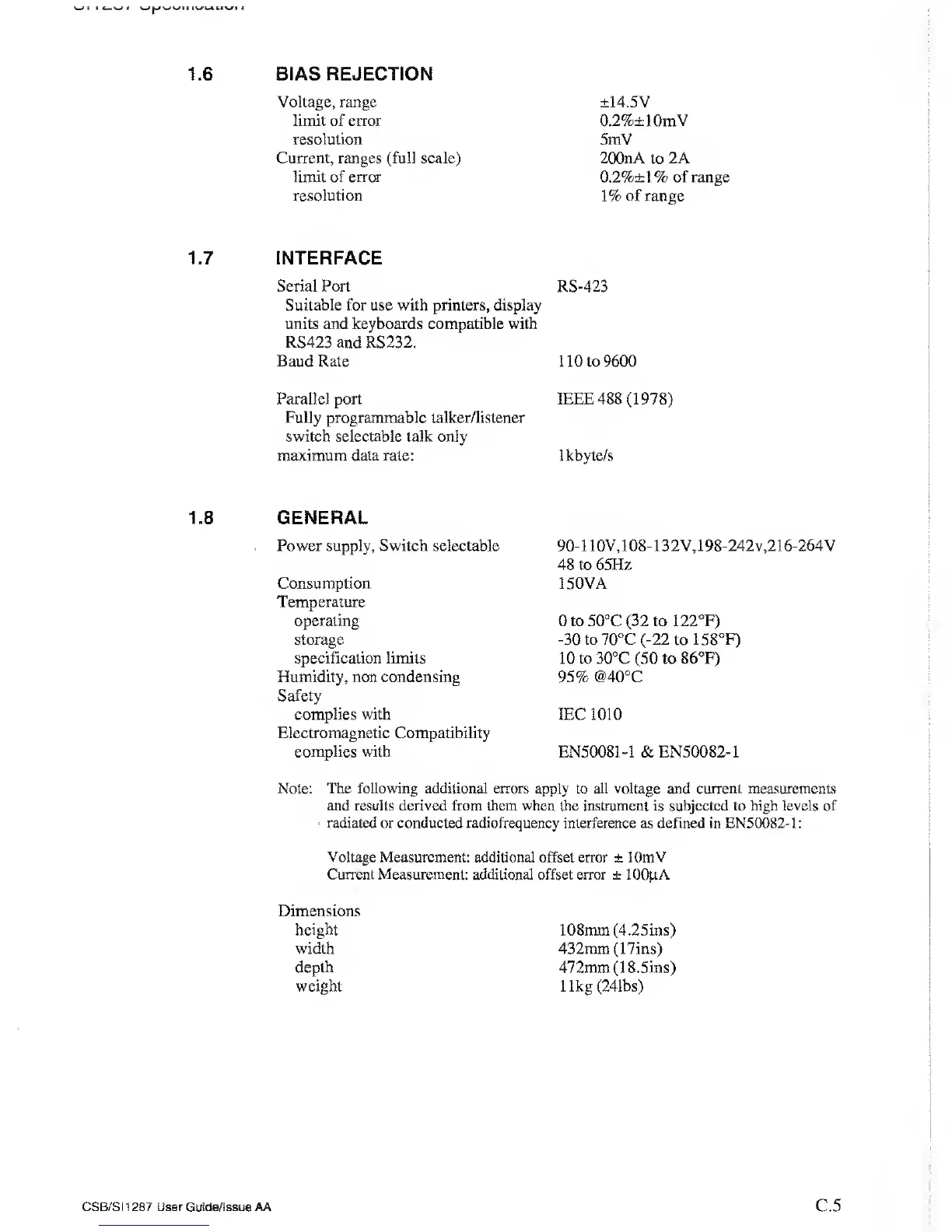

1.6 BIAS REJECTION
Voltage, range
limit of error
resolution
Current, ranges (full scale)
limit of error
resolution
±14.5V
0.2%±10mV
5mV
200nA to 2A
0.2%±1 %
of range
1% of range
1.7 INTERFACE
Serial Port
RS-423
Suitable for use with printers, display
units and keyboards compatible with
RS423 and RS232.
Baud Rate 1 10 to 9600
Parallel port IEEE
488
(1978)
Fully programmable talker/listener
switch selectable talk only
maximum data rate: 1 kbyte/s
1.8 GENERAL
Power supply, Switch selectable
Consumption
Temperature
operating
storage
specification limits
Humidity, non condensing
Safety
complies with
Electromagnetic Compatibility
complies with
90-
1 1
OV, 1
08-
1
32
V,
1
98-242v,2
1
6-264V
48 to 65Hz,
150VA
0
to 50°C
(32
to 122°F)
-30
to
70°C
(-22
to 158°F)
10 to
30°C
(50
to
86°F)
95% @40°C
IEC1010
EN50081-1
&
EN50082-
1
Note: The following additional errors
apply to
all voltage and current measurements
and results derived from, them when the instrument is subjected to high levels of
radiated
or conducted radiofrequency interference as defined in EN50082-1:
Voltage
Measurement: additional offset error ± lOmV
Current Measurement: additional
offset error ± lOOpA
Dimensions
height
width
depth
weight
108mm(4.25ins)
432mm (17ins)
472mm (18.5ins)
1 1kg (241bs)
CSB/SI1287
User
Guide/Issue
AA C.5
