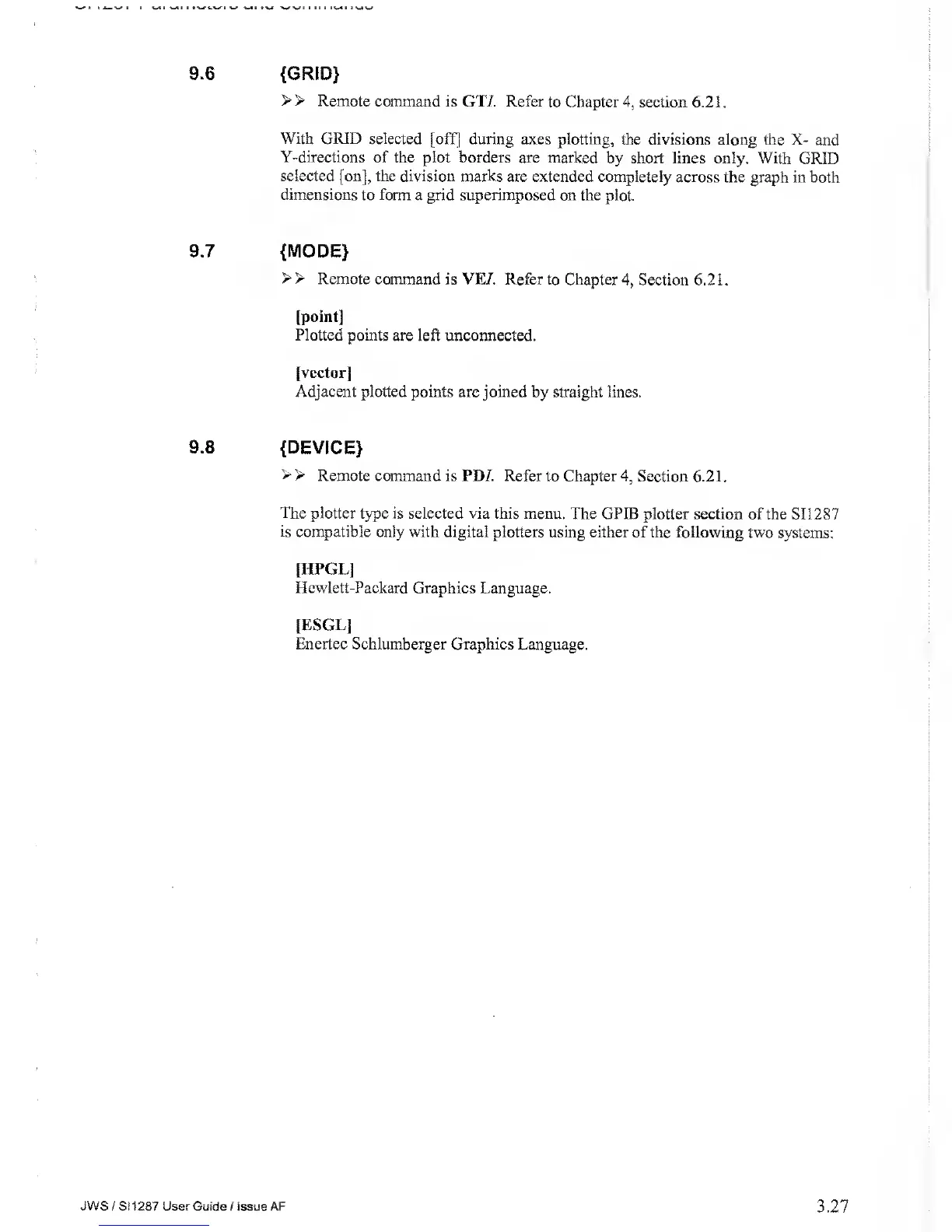

9.6 {GRID}
> >
Remote command
is GTI. Refer to Chapter
4,
section 6.2 1
.
With GRID selected
[off] during axes plotting,
the
divisions
along the X-
and
Y-directions
of the plot borders are marked
by
short
lines only. With
GRID
selected
[on], the division marks
are extended completely across
the
graph
in both
dimensions
to
form
a grid superimposed on the
plot.
9.7
{MODE}
> >
Remote
command is VET. Refer to Chapter
4,
Section 6.2 1.
[point]
Plotted points
are left unconnected.
[vector]
Adjacent plotted points are joined
by straight lines.
9.8
{DEVICE}
>
>
Remote command is PD/. Refer
to Chapter
4,
Section 6.21
.
The plotter type is selected via this menu.
The GPIB plotter section
of the SI1287
is compatible only with
digital plotters using either of the following two
systems:
[IIPGL]
Hewlett-Packard
Graphics Language.
[ESGL]
Enertec
Schlumberger Graphics Language.
JWS / SI1287 User Guide
/
issue AF
3.27
