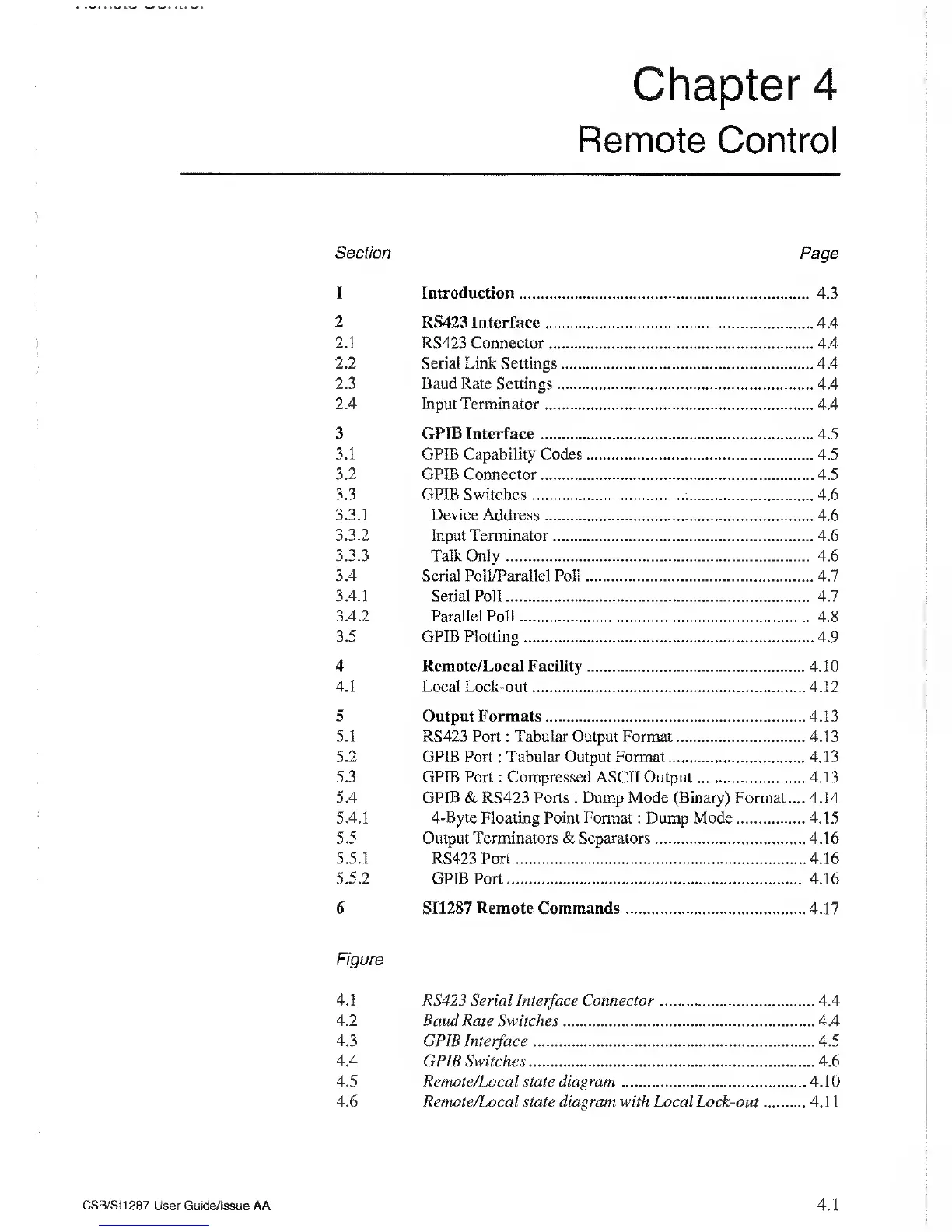

Solartron 1287 - Chapter 4 Remote Control

Chapter
4
Remote Control
Section Page
1 Introduction
4.3
2 RS423 Interface
. 4.4
2. 1 RS423
Connector 4.4
2.2
Serial Link Settings 4.4
2.3 Baud Rate Settings
4.4
2.4 Input Terminator
4.4
3 GPIB Interface
4.5
3.1 GPIB Capability Codes 4.5
3.2
GPIB Connector 4.5
3.3 GPIB Switches 4.6
3.3.1 Device Address
4.6
3.3.2
Input
Terminator
4.6
3.3.3 Talk Only 4.6
3.4 Serial Poll/Parallel Poll 4.7
3.4.1 Serial Poll... 4.7
3.4.2
Parallel Poll 4.8
3.5 GPIB Plotting 4.9
4
Remote/Local Facility .....4.10
4. 1 Local Lock-out 4.12
5 Output Formats 4.13
5 . 1 RS423 Port
:
Tabular Output Format 4.13
5.2
GPIB Port : Tabular Output Format 4.13
5.3 GPIB Port
: Compressed ASCII Output 4.13
5.4 GPIB & RS423 Ports
:
Dump Mode (Binary)
Format....
4.14
5.4.1 4-Byte Floating Point Format
:
Dump Mode 4.15
5.5 Output Terminators
&
Separators
4.16
5.5.1
RS423 Port 4.16
5.5.2
GPIB Port 4.16
6 SI1287 Remote Commands
4. 1
7
Figure
4. 1 RS423 Serial
Interface Connector 4.4
4.2 Baud Rate
Switches 4.4
4.3
GPIB Interface 4.5
4 .4
GPIB Switches 4.6
4. 5 Remote/Local state diagram 4.10
4.6 Remote/I^ocal state diagram with Local Lock-out 4.1
1
CSB/Si
1287 User Guide/issue AA
4.1
