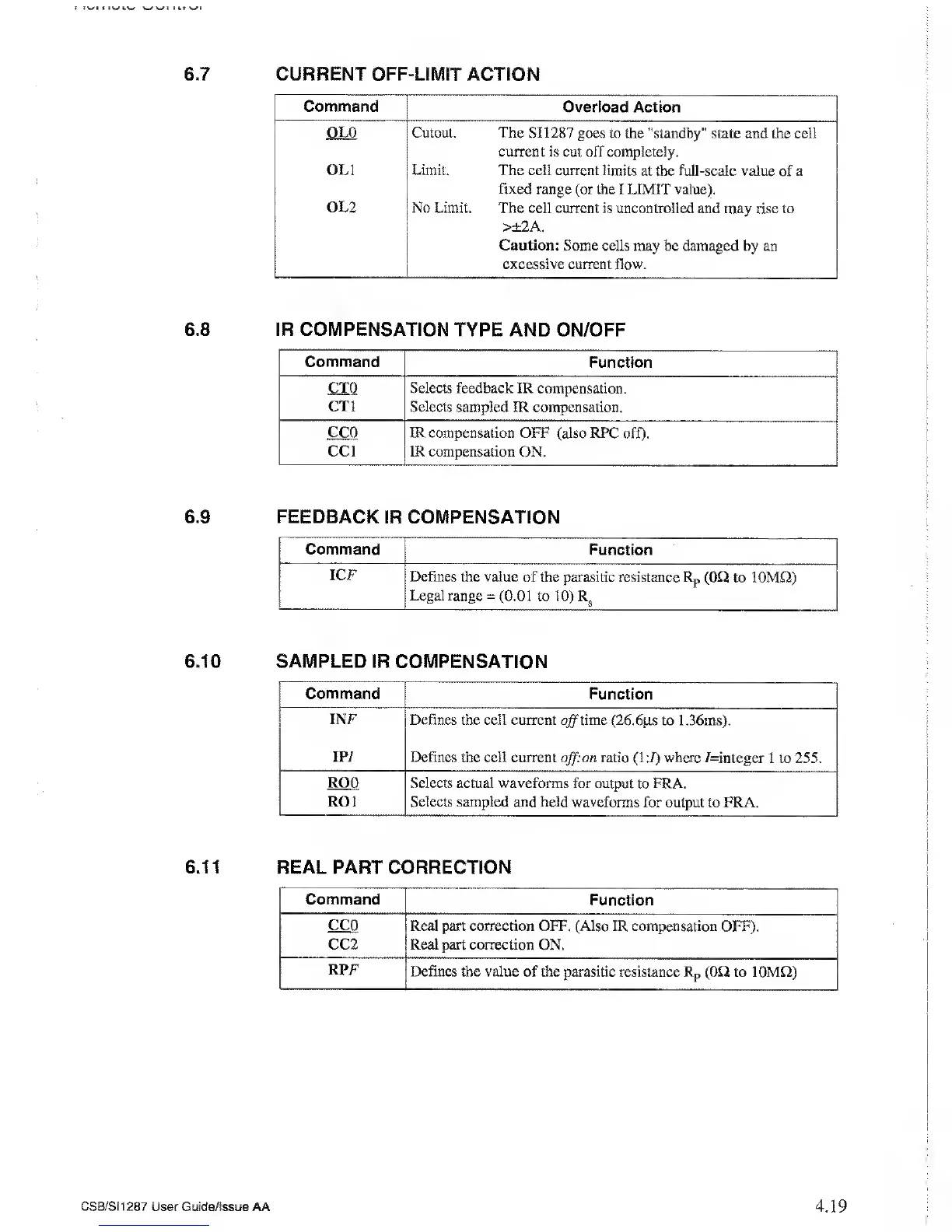

6.7 CURRENT OFF-LIMIT
ACTION
Command
Overload Action
OLO
Cutout. The SI
1287 goes to the "standby” state and the cell
current is cut off completely.
OL1
Limit. The cell current limits at
the
full-scale value
of a
fixed
range (or the I LIMIT value).
OL2 No
Limit. The cell current is uncontrolled and
may rise to
>±2A.
Caution: Some cells may
be
damaged
by an
excessive current
flow.
6.8
IR COMPENSATION
TYPE AND ON/OFF
Command
Function
CTO Selects feedback
IR compensation.
CT1 Selects
sampled IR compensation.
cco
IR compensation OFF (also RPC
off).
cci IR compensation ON.
6.9 FEEDBACK
IR COMPENSATION
Command
Function
ICF
Defines the value of the parasitic resistance
R
p
(OQ to
10MQ)
Legal range
= (0.01 to
10)
R
s
6.1
0
SAMPLED IR
COMPENSATION
Command
Function
INF
Defines the cell current
off
time (26.6,u.s
to
1.36ms).
IPI Defines
the cell current
off:
on ratio
(1:1)
where /=integer
1 to 255.
ROO Selects
actual waveforms for output to FRA.
ROl
Selects sampled and held waveforms
for output to FRA.
6.1
1 REAL PART
CORRECTION
Command
Function
CCO
CC2
Real part correction OFF. (Also IR
compensation OFF).
Real part correction
ON.
RPF
Defines the value
of the parasitic resistance R
p
(00
to
10MQ)
CSB/S1 1 287 User Guide/issue AA
4.19
