7.VgWatt-UL
Description: Inverter will change the active output power based on voltage change.
Note: This is the Volt-Watt Setting for UL1741SA Standards.
Figure 6.26 VgWatt-UL
Voltage1: 254V
P- Limit1:100%
100% of
Input
Power
Vmin Vnom Vstart Vstop Vmax
AC Volt
0

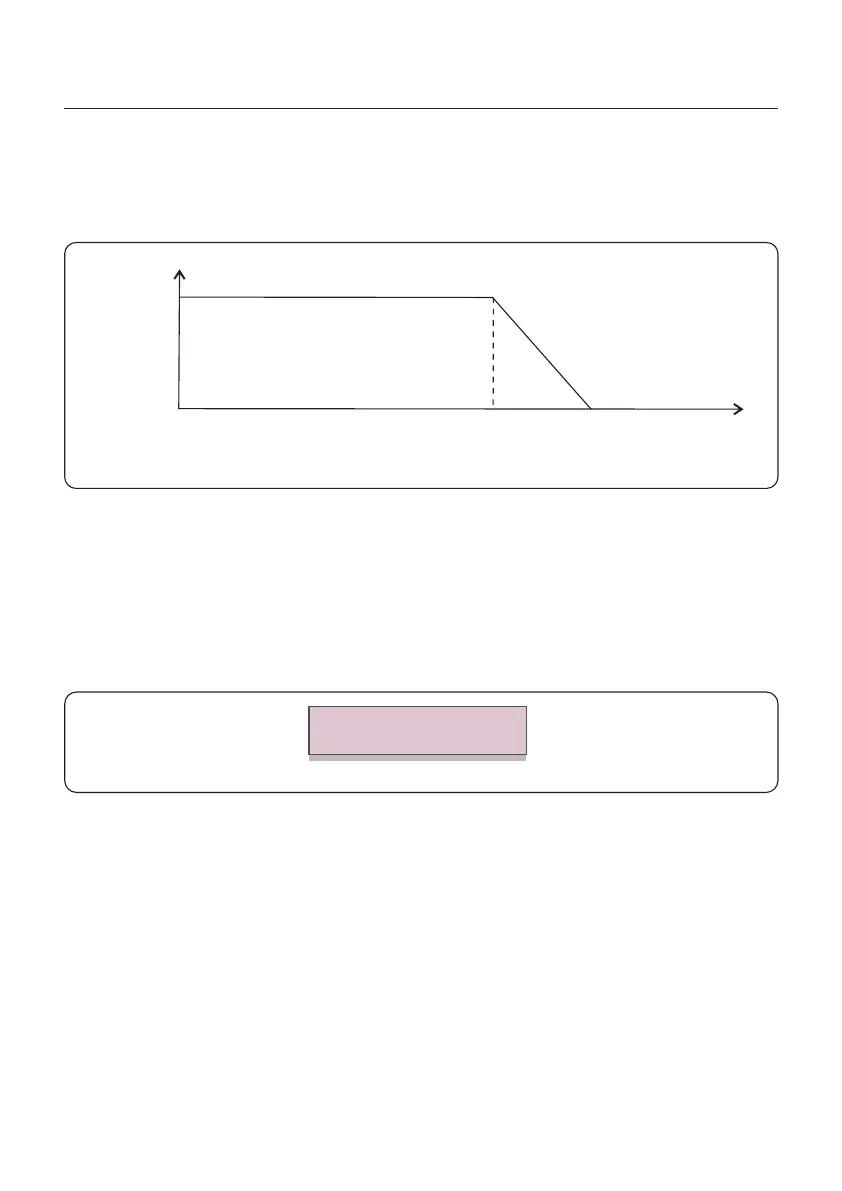

Figure 6.25 Volt-Watt characteristic
Default Settings for UL1741SA:
Rated 480V Grid
V1:less than V2
V2:less than Vstart
V3 (Vstart): (277-333V) Default305V
V4 (Vstop): (305-360V) Default 333V
P1:100% P2:100% P3: 100% P4:0%
