3.3.2 Rack mounting
1. Select a location for the inverter
With a TYPE NEMA 4X protection rating, the inverter can be installed both outdoors and
indoors.
When the inverter is running, the temperature of the chassis and heat sink will be higher
than the ambient . Do not install the inverter in a location that you accidentally touch.
Do not install the inverter in a place where it is stored near flammable or explosive material.
2. Installation angle

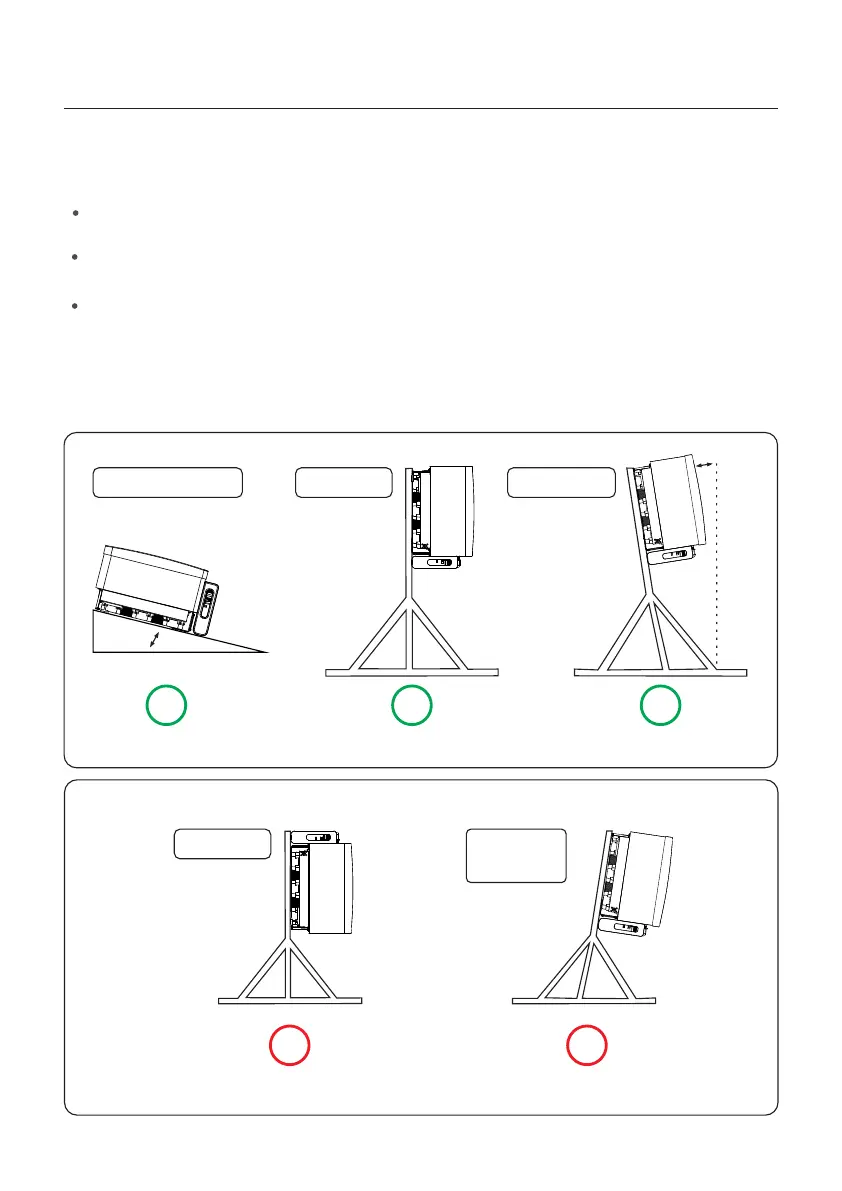

Install inverter as shown in Figure 3.10 below.
Install the inverter vertically. If the inverter cannot be mounted vertically, it may be
“mounted at angles greater than 15 degrees off horizontal. Inverter cannot be mounted flat.
√
Vertical
√
Backward
Figure 3.10 Correct installation Angle
Figure 3.11 Wrong installation Angle
Inverted
Leaning
forward
The steps to mounted to the rack are listed below:
≤15°
≥15°
Off horizontal
√
3. Installation
17

SOLIS S5 Series Specifications

General

Number of MPPTs	2
Output Voltage	230 V
Frequency	50/60 Hz
Max. AC Output Power	5000W
Operating Temperature Range	-25°C to +60°C
Rated AC Output Power	2.5 kW / 3 kW / 3.6 kW / 4 kW / 5 kW / 6 kW
Max. AC Output Current	21.7A
Cooling Method	Natural Convection
Humidity	0~100 %
Model	S5 Series
