SOLIS S5 Series User Manual

User Manual
6.7.16 I/V Curve
This function is used to scan the I/V characteristic curves of each PV strings.

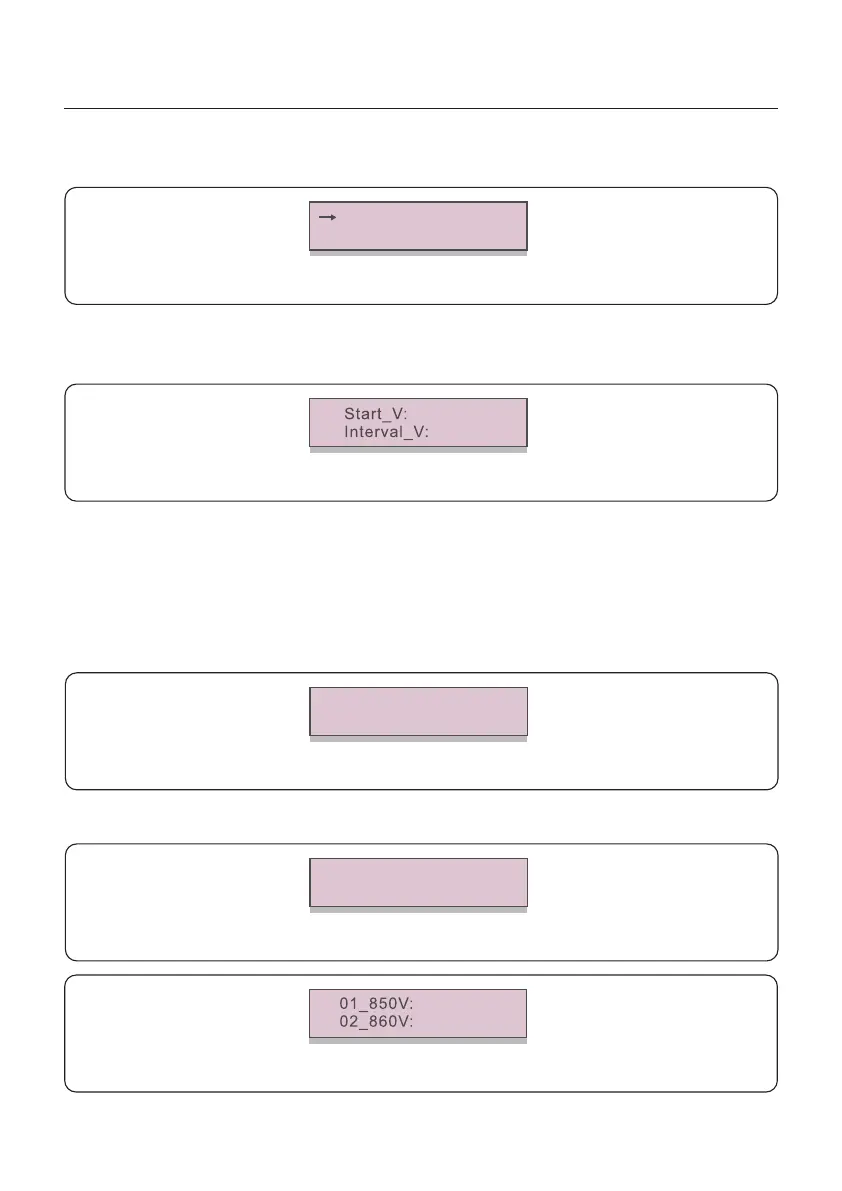

Figure 6.46 I/V Curve
Set I/V Curve
I/V Curve Scan
6.7.16.1 Set I/V Curve
This setting can set the scanning voltage start point and the voltage interval.
Figure 6.47 Set I/V Curve
850V
010V
Start_V: The start voltage of the I/V scan. (Adjustable from 300V-1000V)
Interval_V: The scanning voltage interval.(Adjustable from 1-100V)
In total, 60 data points can be scanned.
6.7.16.2 I/V Curve Scan
Press “ENT” to start the I/V curve scan.
Figure 6.48 I/V Curve Scan (1)
Scanning...01
After it is completed, the screen will display “Scan OK” and then enter the following section.
Figure 6.49 I/V Curve Scan (2)
Select String No.: 01
Figure 6.50 I/V Curve Scan (3)
9.56A
9.44A
6. Normal operation
65

SOLIS S5 Series Specifications

General

Number of MPPTs	2
Output Voltage	230 V
Frequency	50/60 Hz
Max. AC Output Power	5000W
Operating Temperature Range	-25°C to +60°C
Rated AC Output Power	2.5 kW / 3 kW / 3.6 kW / 4 kW / 5 kW / 6 kW
Max. AC Output Current	21.7A
Cooling Method	Natural Convection
Humidity	0~100 %
Model	S5 Series
