S6 Portable Digital Color Doppler Ultrasound System
Service Manual
a. Copy the aconfig file consistent with the ultrasound system into the
USB disk from PC.
Note: To be consistent means that the 6 digits in the name of the
aconfig file must be exactly the same as the control number of the
system. Refer to section instructions on page 7-2 if you do not know
how to find the control number for your system.
b. Start up the S6 system, plug in the USB disk when the EXAM screen
appears.

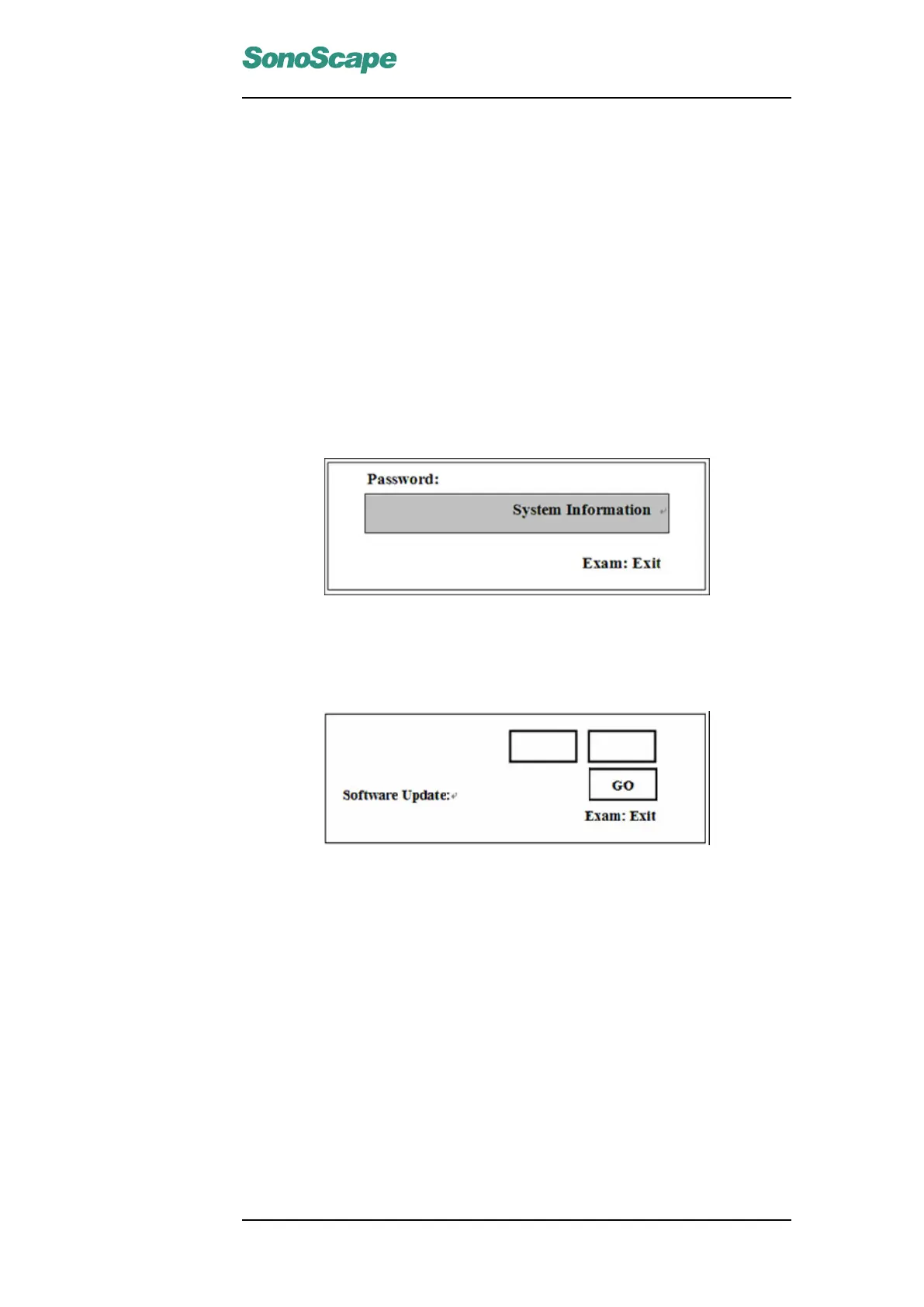

c. Press these keys successively: Shift, E and Menu. The system will
prompt for a password.
d. Enter the correct password (the default password is "HH77" for year
2009), the update confirmation dialogue shows on the screen:
e. The system will show this message on the screen: "Please wait. . . ". Wait
until the message "Shut Down System" is displayed on the screen. Press
Exam key, remove the USB disk and restart the system to complete the
update.
Note:
1. If the writing in process fails, press SET key to restart the process.
2. If the problem persists, ensure that, the aconfig file has the correct
control number (refer to the note above), and the aconfig file is
located at the root directory of the USB disk. Restart the writing in
process.
P/N: 4720-0034-01A
7-9
