S6 Portable Digital Color Doppler Ultrasound System
Service Manual
SSI-8000 Mobile Digital Color Doppler Ultrasound System
Service Manual
P/N 4720-0018-01A
9-8
minutes). Now open the Network Place window on the PC, the SSI-8000 system should have
been shown as a computer named “SonoXXX”. If it is not shown, type \\192.168.254.182
in the
address bar, and press Enter, available contents in the SSI-8000 system will appear in the
window.
9.3.3.2 Direct Connection
Use crossover LAN cable instead of normal Ethernet cable. The crossover cable should have
pinouts as shown below.
Connection 1: T568A Connection 2: T568B
Pin
signal pair color signal pair color
Pins on plug face
1 BI_DA+ 3
white/green
stri
e
BI_DB+ 2
white/orange
stri
e
2 BI_DA- 3
green solid
BI_DB- 2
orange solid
3 BI_DB+ 2
white/orange
stri
e
BI_DA+ 3
white/green
stri
e
4 1
blue solid
1
blue solid
5 1
white/blue
stri
e
6 BI_DB- 2
orange solid
BI_DA- 3
green solid
7 4
white/brown
stri
e
8 4
brown solid
4
brown solid
Table 9-2
1. Follow instructions in 9.2.2.2 to enter the DICOM setting interface window. Check the box
next to “ezNetwork” to enable network connection.

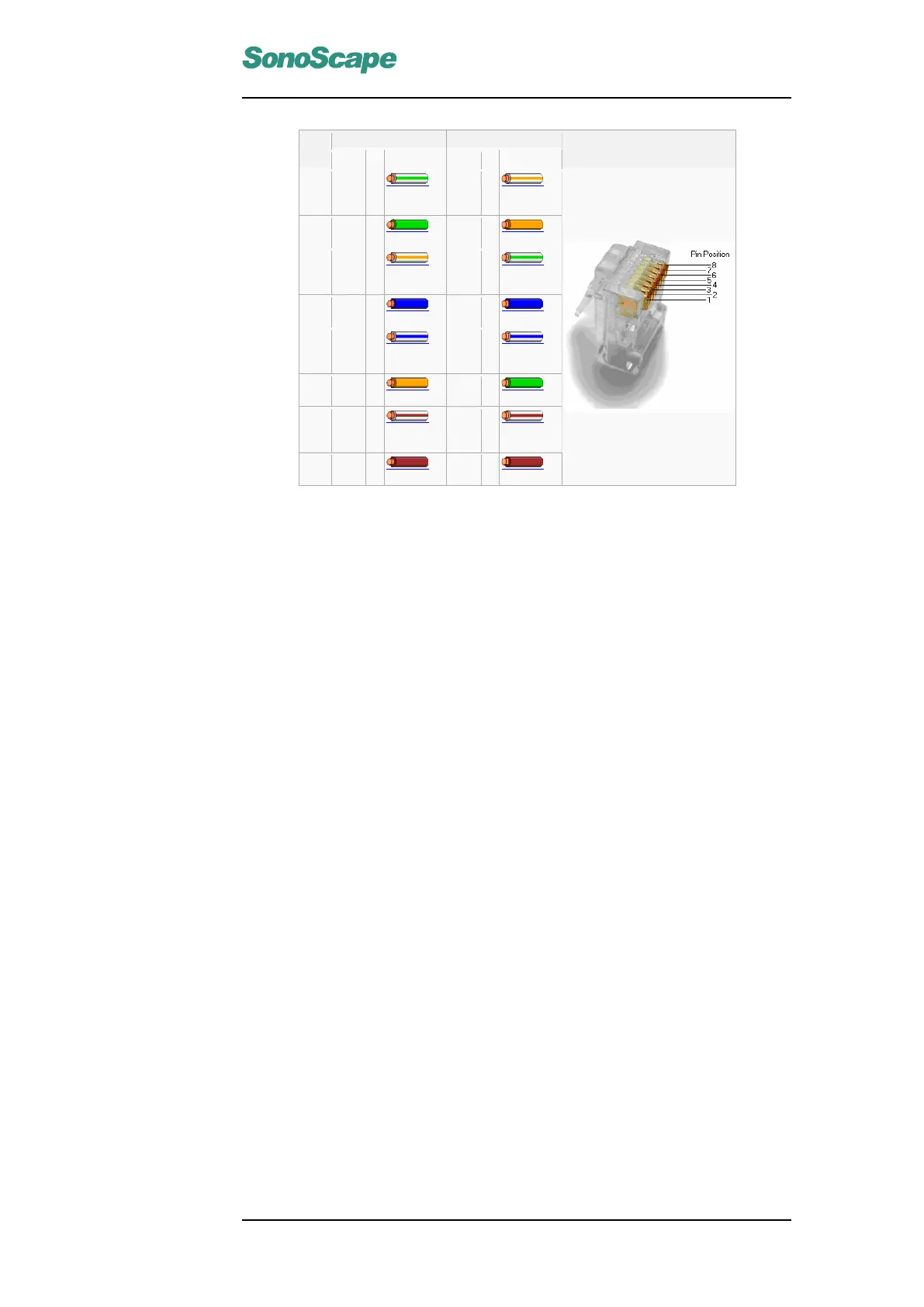

Figure 9.5: Crossover Ethernet Cable Pinouts
2. Open the network setting on the PC, and set its IP address to
192.168.254.X. X can be any number from 1 to 255, but not 182 (It is
already taken by the S6 system.) Set subnet mask to 255.255.255.0.
3. Change the computer’s workgroup to "MSHOME" (Right click on My
Computer icon, click Properties-Computer Name-Change.)
4. Connect the S6 system to the PC with a cross over cable.
5. Turn on the S6 system, wait until the EXAM screen appears (It takes
about 5 minutes). Now open the Network Place window on the
PC, the S6 system should have been shown as a computer named
"SonoXXX". If it is not shown, type //192.168.254.182 in the address
bar, and press Enter, available contents in the S6 system will be dis-
played in the window.
P/N: 4720-0034-01A
9-9
